Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 3-Zone 3'x3' Ceiling Cassette Mini Split Heat Pump System - 12K+12K+42K

Description

This comprehensive HVAC bundle features top-of-the-line Mitsubishi Electric products designed to deliver efficient climate control for both residential and commercial spaces. The MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit serves as the powerhouse, supporting up to eight indoor units for customized heating and cooling. Complementing this are two advanced ceiling-recessed cassette air handlers, the PLA-AE12NL and PLA-AE42NL, which provide discreet and high-performance indoor climate management. The PAC-LMA30BC branch box ensures optimal refrigerant distribution among the connected indoor units, while the PLP-41EAEU grilles enhance airflow and system efficiency. Together, these components create a versatile and eco-friendly HVAC solution that meets modern environmental standards.

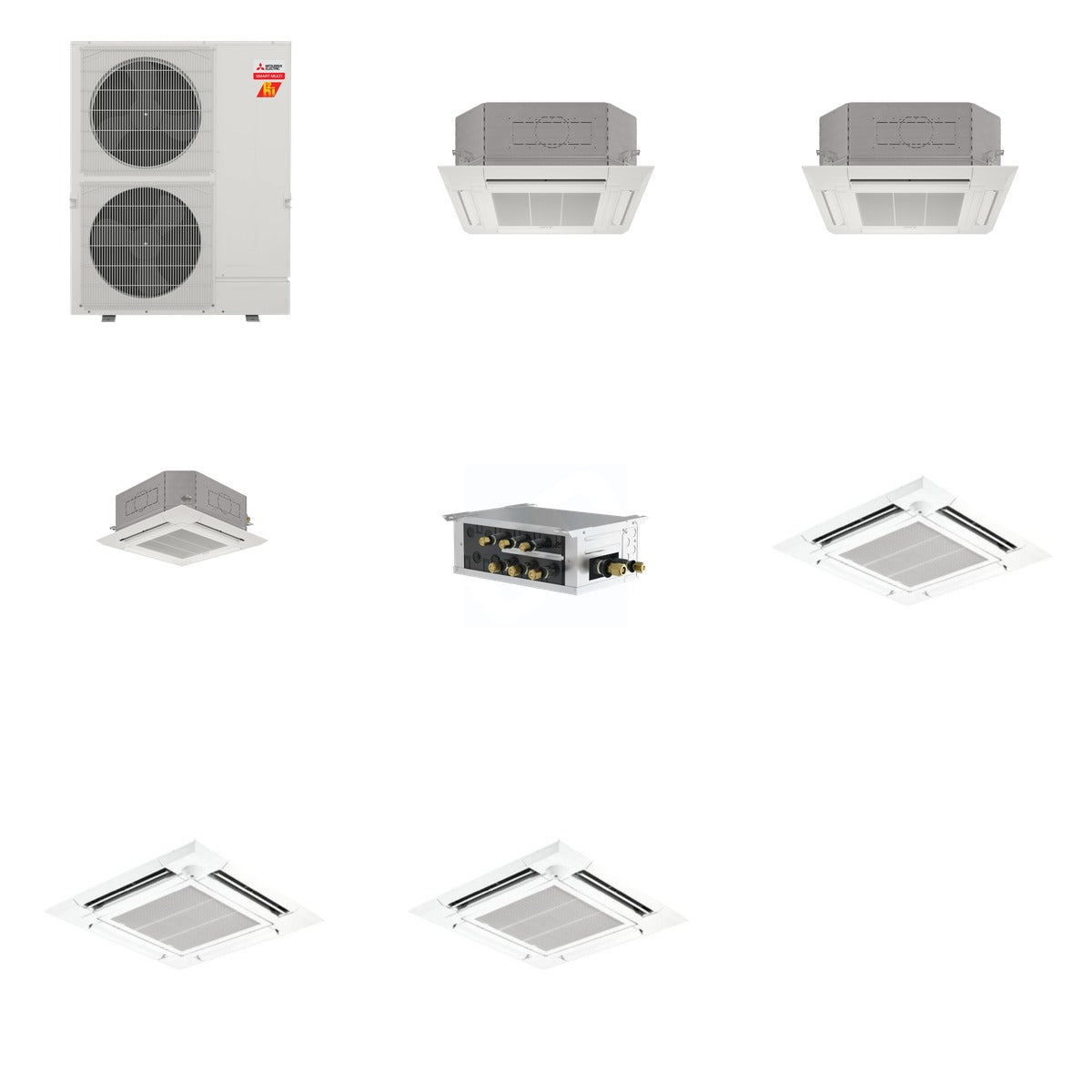

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)

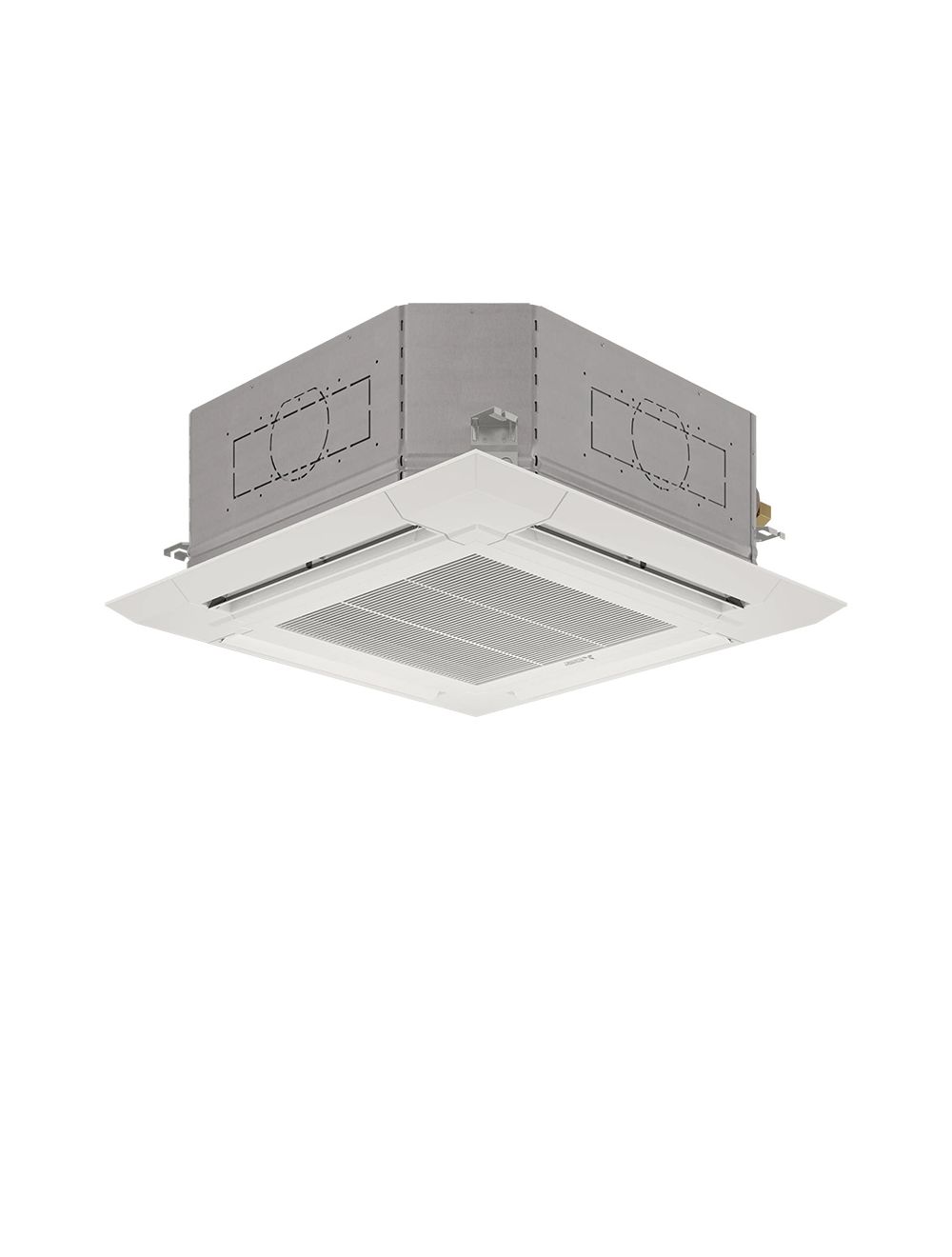

• MITSUBISHI ELECTRIC PLA-AE12NL - Mitsubishi Electric PLA-AE12NL R454B: 12,000 BTU 4-Way Cassette Air Handler (Qty x2)

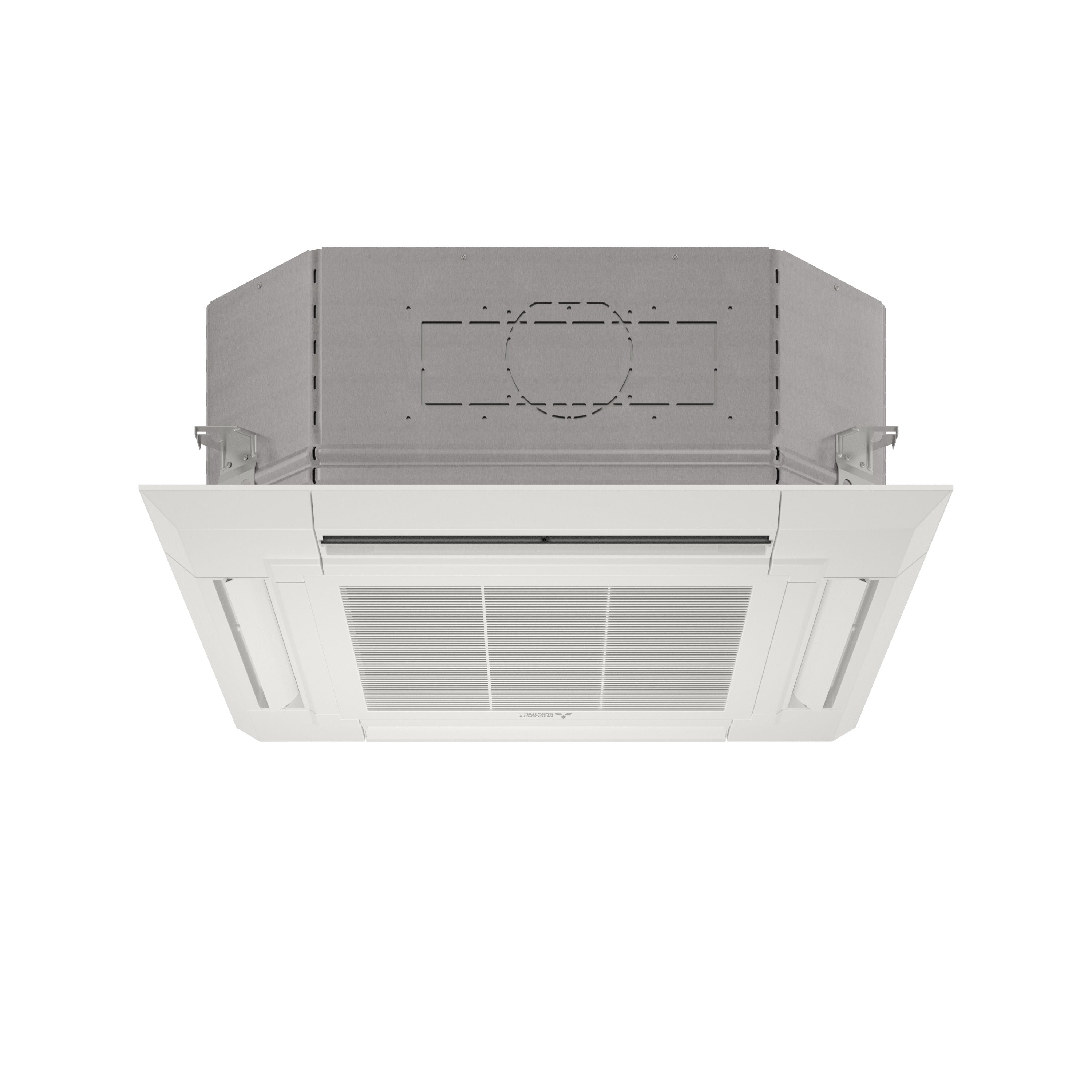

• MITSUBISHI ELECTRIC PLA-AE42NL - Mitsubishi Electric PLA-AE42NL R454B: 42k BTU 4-Way Cassette Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PLP-41EAEU - Mitsubishi Electric PLP-41EAEU Ceiling Cassette Grille (Qty x3)

Key Details

• Weight of Bundle: 410 lb (Mitsubishi 225 lb + Mitsubishi 92 lb + Mitsubishi 55 lb + Mitsubishi 5 lb + Mitsubishi 33 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL), 12,000 BTU (PLA-AE12NL), 42,000 BTU (PLA-AE42NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL), 13,500 BTU (PLA-AE12NL), 48,000 BTU (PLA-AE42NL)
• Refrigerant Type: R-454B
• SEER2 Rating: Up to 23 (MXZ-SM60NL), Up to 21.9 (PLA-AE12NL)
• Voltage: 208/230V
• Sound Level: As low as 28 dB(A) (PLA-AE12NL)
• Dimensions: 41-11/32" W x 13" D x 52-11/16" H (MXZ-SM60NL), 33-1/16" W x 33-1/16" D x 11-3/4" H (PLA-AE12NL & PLA-AE42NL)

Use & Compatibility

This bundle is ideal for multi-zone heating and cooling applications in both residential and commercial settings. The outdoor unit connects seamlessly with the indoor air handlers, which are designed for flush-mount ceiling installation. The branch box facilitates efficient refrigerant distribution, ensuring optimal performance across all connected units. The included grilles enhance airflow, making this bundle a complete solution for modern HVAC needs.
