Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 3-Zone 2'x2' Ceiling Cassette Mini Split Heat Pump System - 12K+12K+12K

Description

This comprehensive HVAC bundle is designed for optimal heating and cooling solutions in both residential and commercial settings. Featuring the Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit, this package ensures efficient operation with a capacity of 60,000 BTU. Coupled with three SLZ-AF12NL mini-split air handlers, each offering 12,000 BTU, this system provides customizable comfort across multiple zones. The PAC-LMA30BC 3-Port Branch Box facilitates seamless refrigerant distribution, while the SLP-18FAU grille enhances air distribution for an efficient indoor climate. Together, these components create a versatile and effective HVAC solution tailored to meet diverse needs.

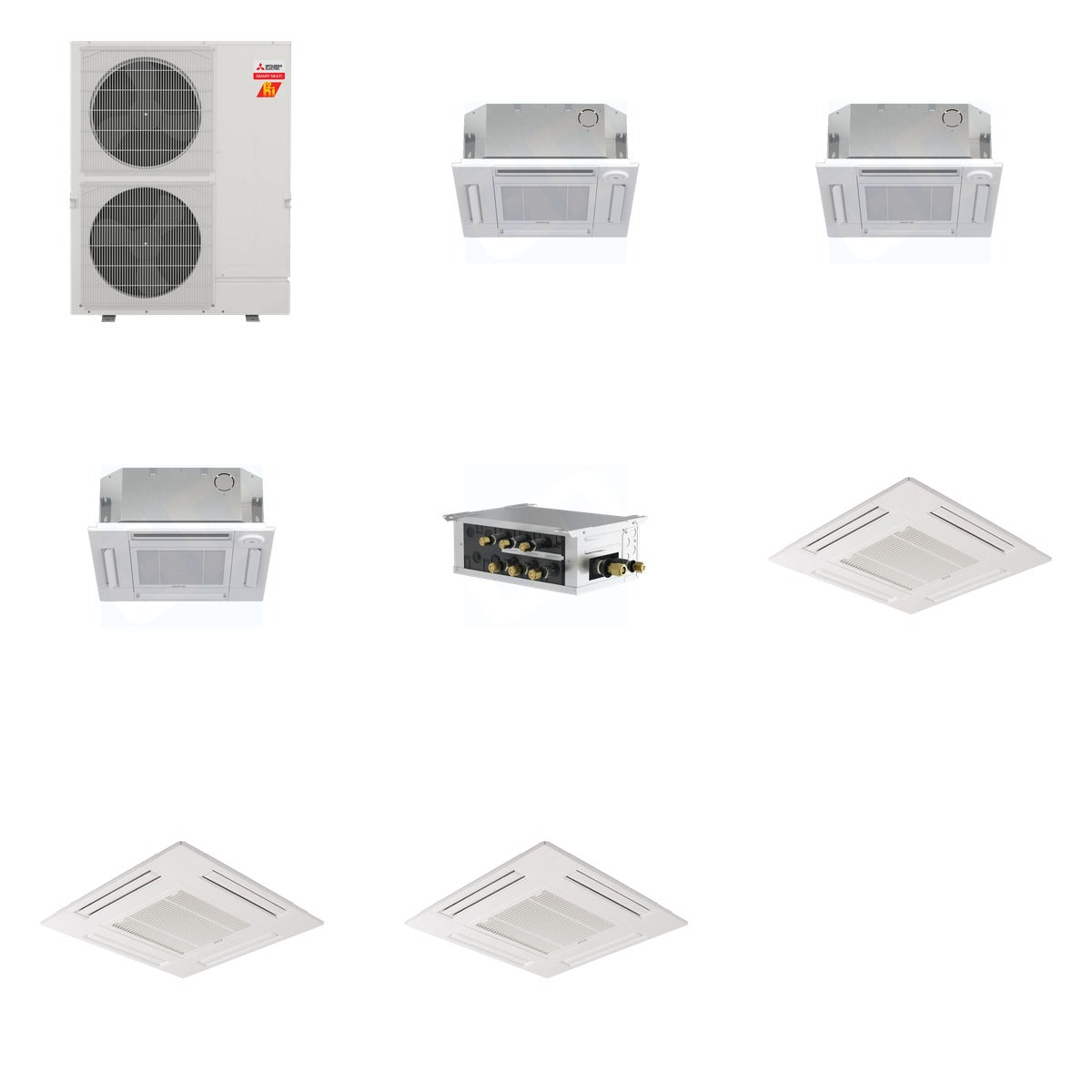

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC SLZ-AF12NL - Mitsubishi Electric SLZ-AF12NL M-Series - Multi or Single-Zone - 12k BTU - R-454B (Qty x3)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC SLP-18FAU - Mitsubishi Electric SLP-18FAU - (Grille for SLZ-AF Series) (Qty x3)

Key Details

• Weight of Bundle: 350 lb (Mitsubishi 225 lb + Mitsubishi 99 lb + Mitsubishi 5 lb + Mitsubishi 21 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• SEER2: Up to 23 (MXZ-SM60NL)
• System Capacity: 12,000 BTU (SLZ-AF12NL)
• Refrigerant: R454B (All units)
• Input Voltage: 208/230 V (SLZ-AF12NL, PAC-LMA30BC)
• Dimensions: 41-11/32 x 13 x 52-11/16 inches (MXZ-SM60NL)
• Sound Level: As low as 58 dB(A) (MXZ-SM60NL)
• Weight: 15 lbs (PAC-LMA30BC)

Use & Compatibility

This bundle is ideal for multi-zone heating and cooling applications, providing flexibility and efficiency. The MXZ-SM60NL outdoor unit is compatible with various indoor units, including the SLZ-AF12NL air handlers. The PAC-LMA30BC branch box ensures balanced refrigerant flow for optimal performance across connected units. Perfect for both residential and commercial environments, this system adapts to diverse installation needs.
