Mitsubishi Multi-Zone 60000 BTU R-454B 20 SEER2 2-Zone 3'x3' Ceiling Cassette Mini Split Heat Pump System - 12K+36K

Description

This comprehensive HVAC bundle features a selection of high-performance Mitsubishi Electric products designed to deliver efficient heating and cooling solutions for both residential and commercial applications. The MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit serves as the powerhouse, capable of connecting to multiple indoor units for customized climate control. Complementing this unit are the PLA-AE12NL and PLA-AE36NL 4-way cassette air handlers, which provide discreet, high-efficiency air distribution. The PAC-LMA30BC branch box ensures optimal refrigerant distribution among the indoor units, while the PLP-41EAEU grilles enhance airflow and system performance. Together, these components create a versatile and effective HVAC system tailored to meet diverse climate control needs.

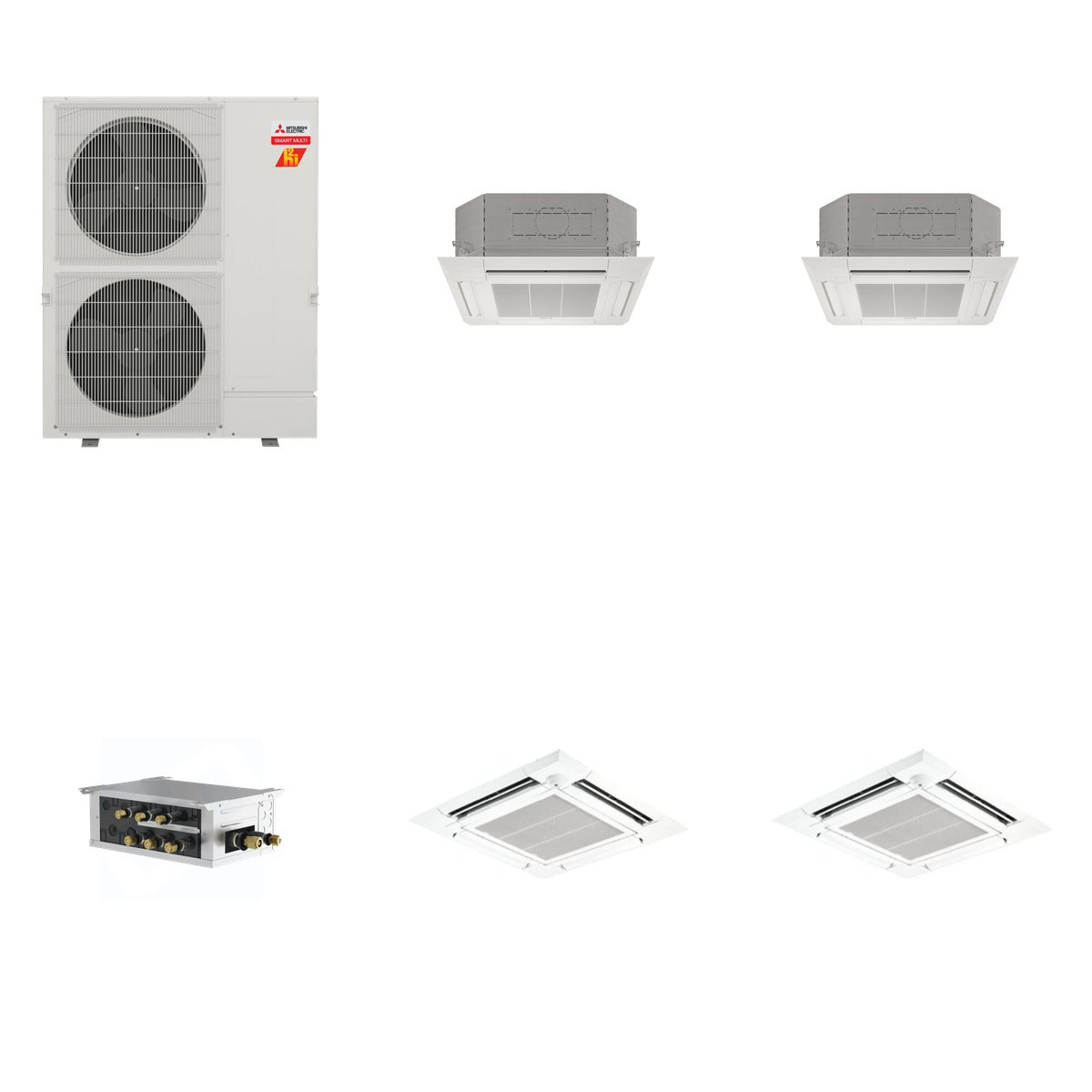

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)

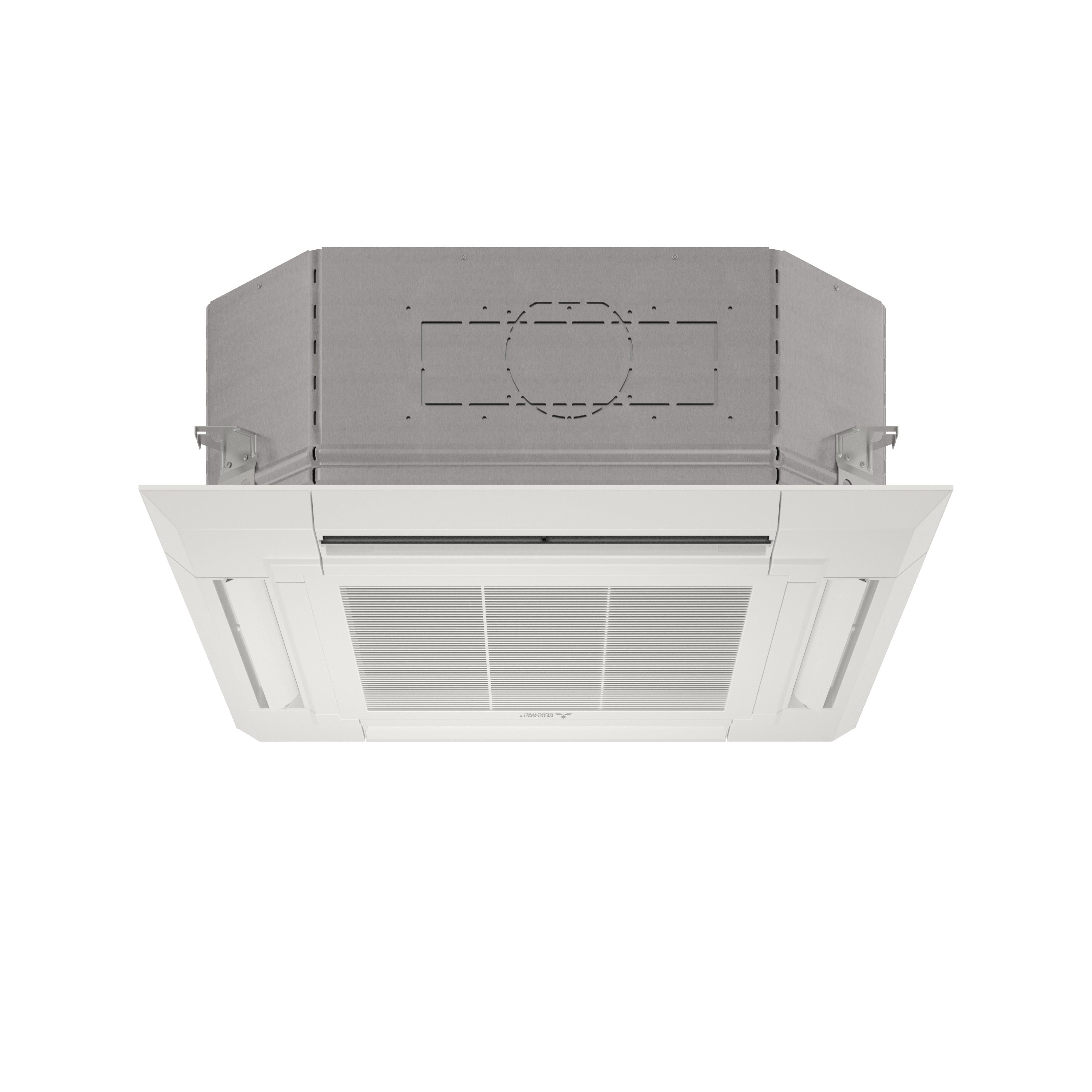

• MITSUBISHI ELECTRIC PLA-AE12NL - Mitsubishi Electric PLA-AE12NL R454B: 12,000 BTU 4-Way Cassette Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PLA-AE36NL - Mitsubishi Electric PLA-AE36NL R454B: 36,000 BTU 4-Way Cassette Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PLP-41EAEU - Mitsubishi Electric PLP-41EAEU Ceiling Cassette Grille (Qty x2)

Key Details

• Weight of Bundle: 351 lb (Mitsubishi 225 lb + Mitsubishi 46 lb + Mitsubishi 53 lb + Mitsubishi 5 lb + Mitsubishi 22 lb)
• MXZ-SM60NL: 60,000 BTU cooling capacity, 66,000 BTU heating capacity, SEER2 up to 23, dimensions 41-11/32" W x 13" D x 52-11/16" H
• PLA-AE12NL: 12,000 BTU cooling capacity, 13,500 BTU heating capacity, SEER2 up to 21.9, dimensions 33-1/16" W x 33-1/16" D x 11-3/4" H
• PLA-AE36NL: 36,000 BTU cooling capacity, 40,000 BTU heating capacity, SEER2 23.3, dimensions 33-1/16" W x 33-1/16" D x 11-3/4" H
• PAC-LMA30BC: connects up to 3 indoor units, dimensions 17-3/4" W x 11-1/16" D x 6-3/4" H
• PLP-41EAEU: weight 15 lbs, designed for seamless ceiling integration

Use & Compatibility

This bundle is ideal for creating a multi-zone HVAC system, suitable for both residential and commercial settings. The outdoor unit connects seamlessly with the indoor cassette air handlers, providing efficient climate control tailored to specific spaces. The branch box ensures balanced refrigerant flow, while the grilles optimize airflow, making this bundle a complete solution for effective heating and cooling.
