Mitsubishi Multi-Zone 60000 BTU R-454B 18 SEER2 2-Zone Multi-Position Air Handler Heat Pump System - 24K+36K

Description

This comprehensive HVAC bundle features top-of-the-line Mitsubishi Electric products designed to provide efficient heating and cooling solutions for both residential and commercial applications. The MXZ-SM60NL multi-zone heat pump outdoor unit serves as the powerhouse, capable of connecting to multiple indoor units for customized climate control. Complementing this are the SVZ-AP24NL and SVZ-AP36NL ducted air handlers, which offer flexible installation options and advanced features for optimal airflow and temperature management. The PAC-LMA30BC branch box ensures balanced refrigerant distribution among the connected indoor units, enhancing overall system performance. Together, these components create a versatile and efficient HVAC system tailored to meet diverse needs.

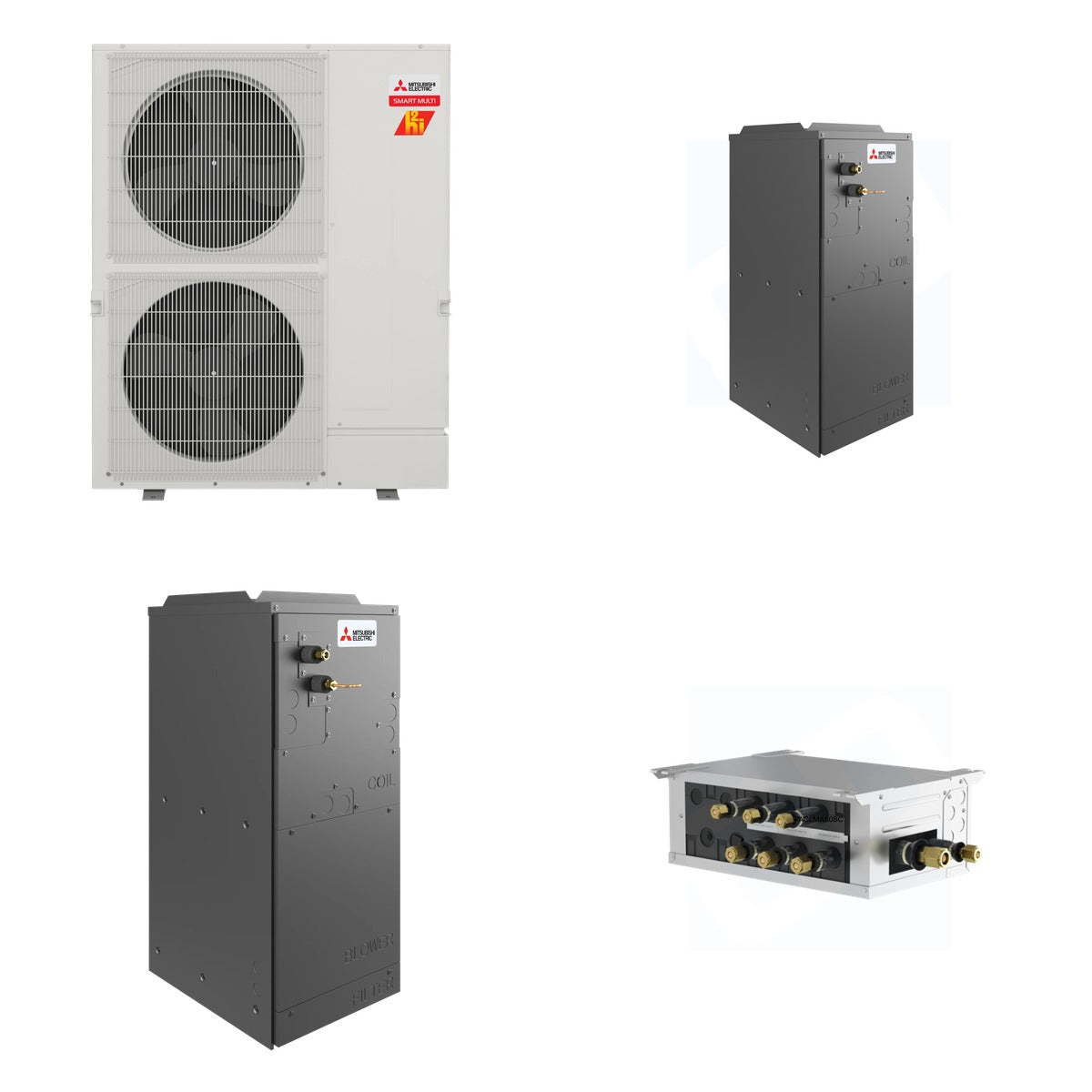

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)

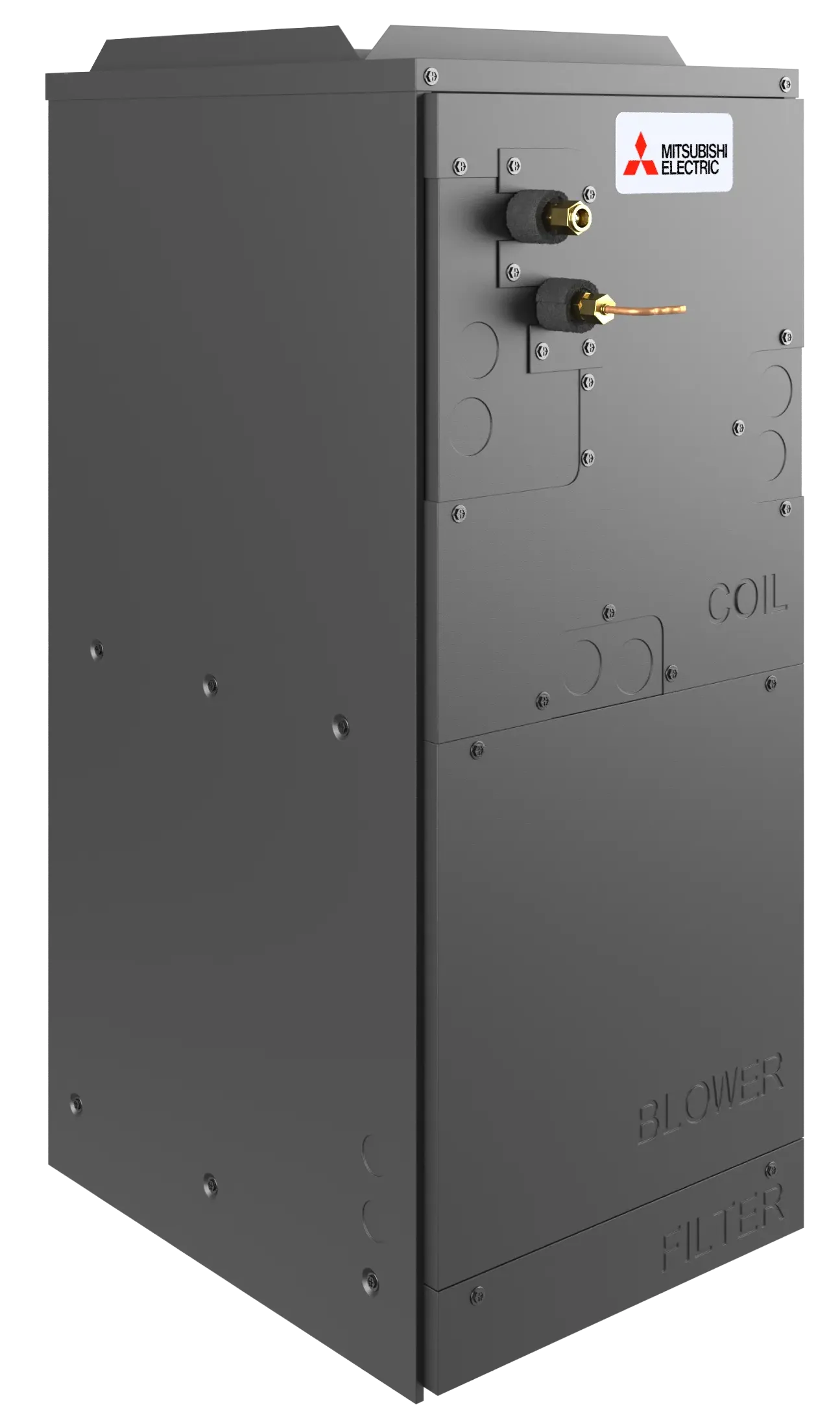

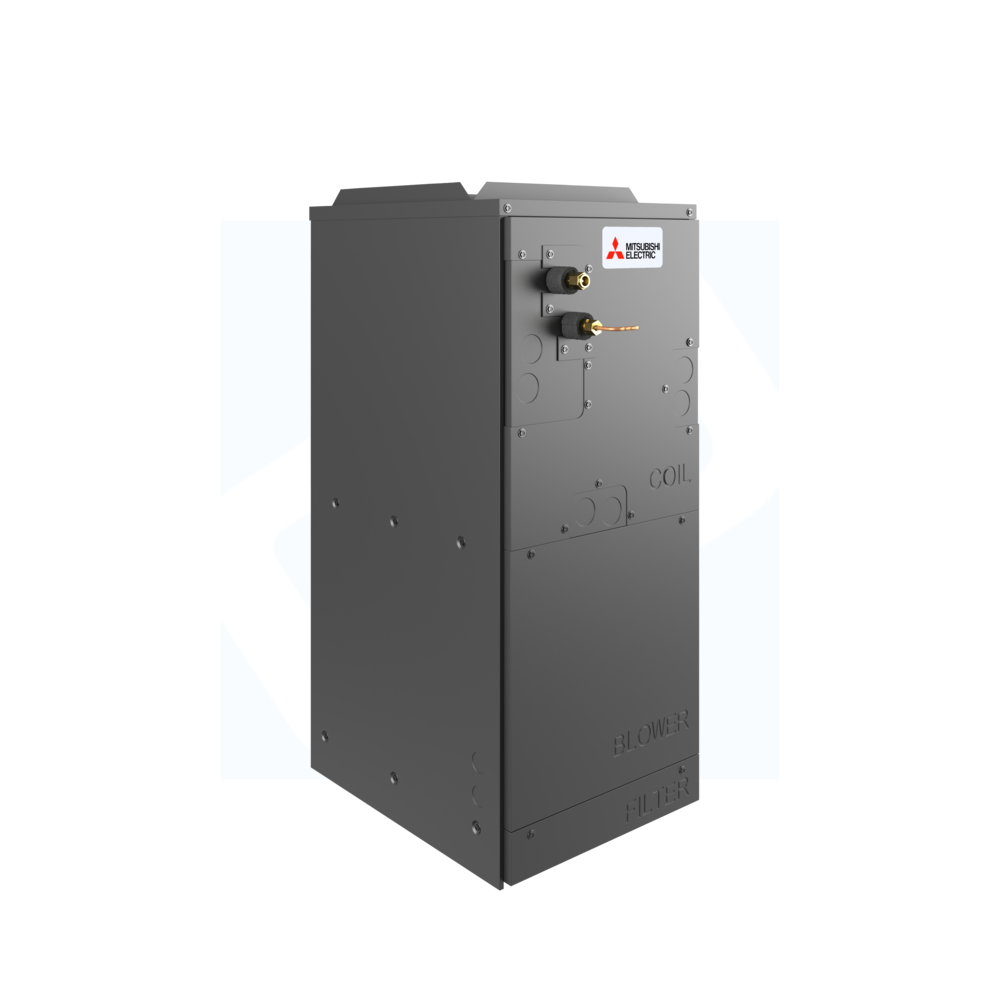

• MITSUBISHI ELECTRIC SVZ-AP24NL - Mitsubishi Electric SVZ-AP24NL AP-Series Ducted Air Handler Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC SVZ-AP36NL - Mitsubishi Electric SVZ-AP36NL AP-Series Ducted Air Handler Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 461 lb (Mitsubishi 225 lb + Mitsubishi 104 lb + Mitsubishi 127 lb + Mitsubishi 5 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL)
• SEER2: Up to 23 (MXZ-SM60NL)
• Indoor Unit Capacity: 24,000 BTU (SVZ-AP24NL), 36,000 BTU (SVZ-AP36NL)
• Refrigerant: R454B (all units)
• Voltage: 208/230 V (SVZ-AP36NL)
• Dimensions: MXZ-SM60NL: 41-11/32 x 13 x 52-11/16 inches
• Noise Level: As low as 36 dB(A) (SVZ-AP24NL)
• Weight: 122 lbs (SVZ-AP36NL)

Use & Compatibility

This HVAC bundle is ideal for multi-zone heating and cooling applications, providing efficient climate control for various indoor environments. The outdoor unit is compatible with M-Series, P-Series, and CITY MULTI indoor units, while the ducted air handlers can be installed in both horizontal and vertical orientations. The branch box facilitates optimal refrigerant distribution, making this system suitable for both residential and commercial settings.
