Mitsubishi Multi-Zone 60000 BTU R-454B 16 SEER2 2-Zone Ducted Medium-Static Mini Split Heat Pump System - 9K+18K

Description

This comprehensive HVAC bundle features essential components designed to provide efficient heating and cooling for both residential and commercial applications. The Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit serves as the powerhouse, supporting multiple indoor units for customized climate control. Paired with the PEAD-AA09NL and PEAD-AA18NL concealed duct indoor units, this setup ensures discreet and effective temperature regulation. The PAC-LMA30BC branch box facilitates seamless connections between the outdoor unit and indoor units, optimizing refrigerant distribution. Together, these products create a versatile and efficient multi-zone HVAC system.

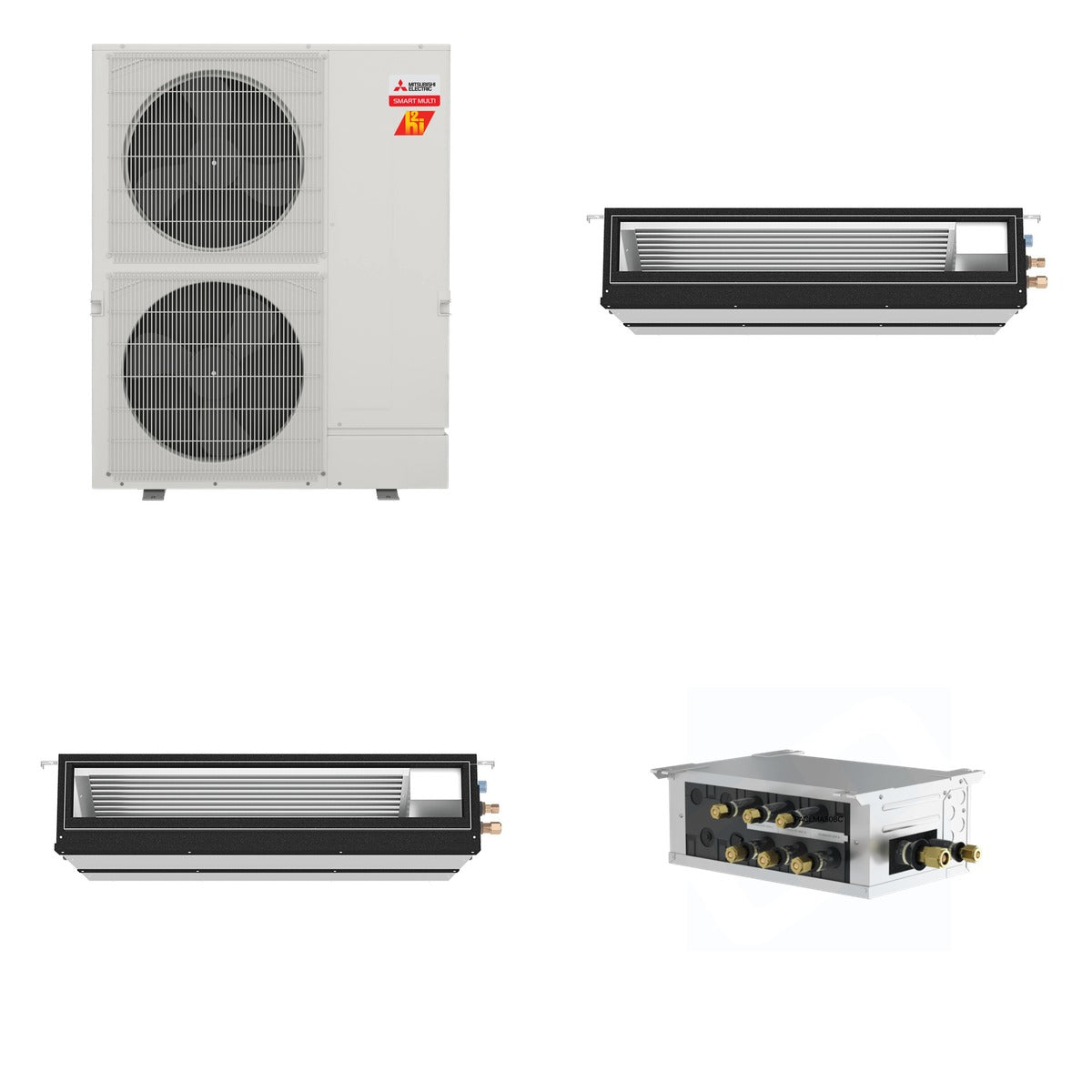

What's Included

• MITSUBISHI ELECTRIC MXZ-SM60NL - Mitsubishi Electric MXZ-SM60NL Multi-Zone Heat Pump Outdoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PEAD-AA09NL - Mitsubishi Electric PEAD-AA09NL R454B: 9k BTU P-Series Concealed Horizontal-Ducted Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PEAD-AA18NL - Mitsubishi Electric PEAD-AA18NL R454B: 18k BTU P-Series Concealed Horizontal-Ducted Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)

Key Details

• Weight of Bundle: 346 lb (Mitsubishi 225 lb + Mitsubishi 49 lb + Mitsubishi 67 lb + Mitsubishi 5 lb)
• Cooling Capacity: 60,000 BTU (MXZ-SM60NL), 9,000 BTU (PEAD-AA09NL), 18,000 BTU (PEAD-AA18NL)
• Heating Capacity: 66,000 BTU (MXZ-SM60NL), 12,000 BTU (PEAD-AA09NL), 20,000 BTU (PEAD-AA18NL)
• SEER2: Up to 23 (MXZ-SM60NL)
• Voltage: 208/230V (PEAD-AA09NL, PEAD-AA18NL, PAC-LMA30BC)
• Dimensions: 41-11/32 x 13 x 52-11/16 inches (MXZ-SM60NL), 9-7/8 x 35-7/16 x 28-7/8 inches (PEAD-AA09NL), 9-7/8 x 35-7/16 x 28-7/8 inches (PEAD-AA18NL), 17-3/4 x 11-1/16 x 6-3/4 inches (PAC-LMA30BC)
• Weight: 58 lbs (PEAD-AA09NL), 58 lbs (PEAD-AA18NL), 15 lbs (PAC-LMA30BC)
• Refrigerant Type: R454B

Use & Compatibility

This bundle is ideal for multi-zone heating and cooling applications, providing flexibility and efficiency for various indoor environments. The outdoor unit connects seamlessly with the concealed duct indoor units, making it suitable for both residential and commercial systems. The branch box enhances refrigerant distribution, ensuring optimal performance across all connected units.
