Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 8-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+6K+6K+6K+6K+6K+18K

Description

This comprehensive HVAC bundle includes essential components for optimizing your multi-zone heating and cooling systems. The Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit serves as the powerhouse, capable of connecting up to eight indoor units, making it ideal for larger spaces. Complementing this are the MSZ-GX06NL and MSZ-GX18NL wall-mounted air handlers, providing efficient heating and cooling for smaller zones. The PAC-LMA50BC and PAC-LMA30BC branch boxes ensure effective refrigerant distribution, while the MSDD-50AR2-E branch pipe distribution kit enhances system performance and installation efficiency. Together, these components create a versatile and efficient HVAC solution suitable for both residential and commercial applications.

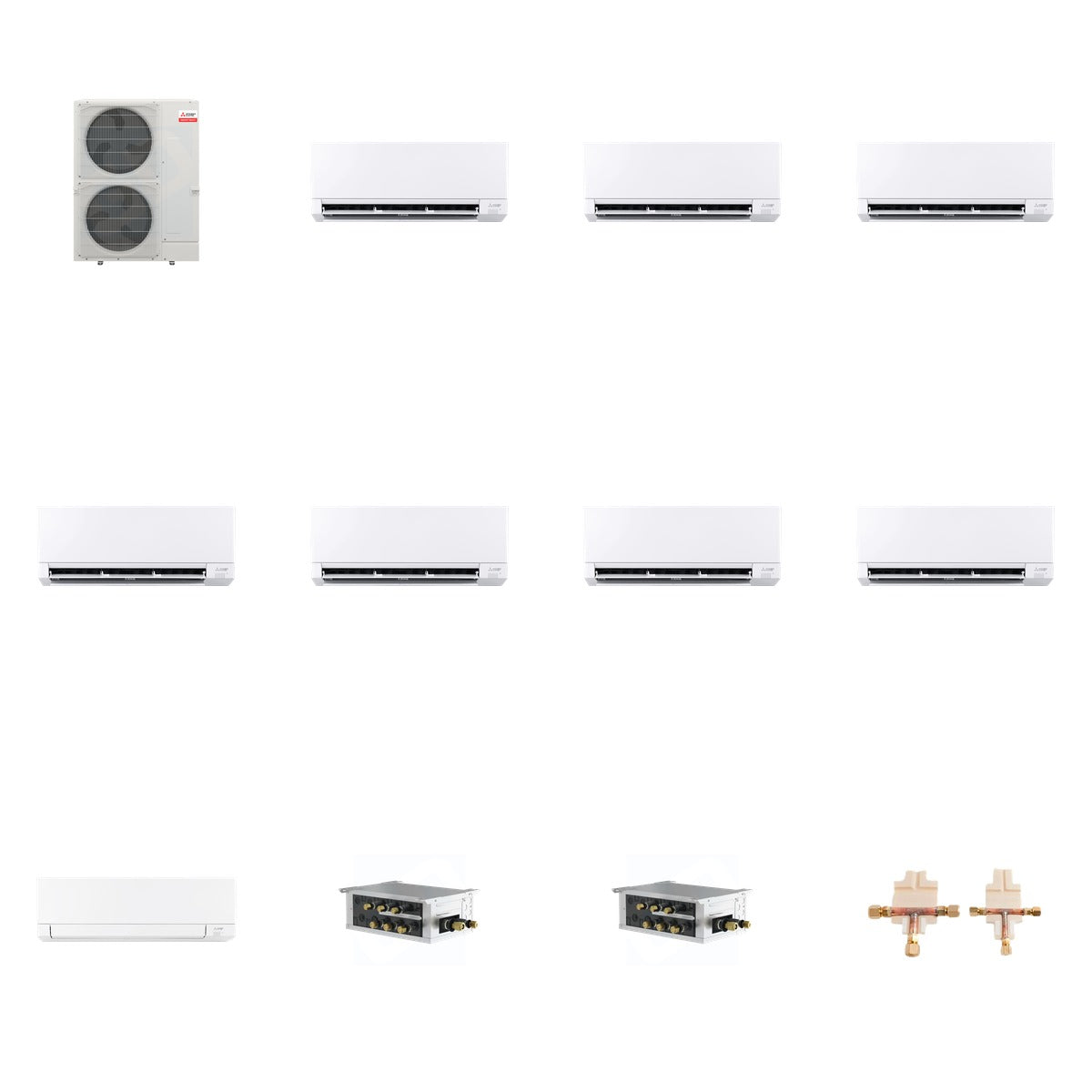

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - Mitsubishi Electric MSZ-GX06NL R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x7)
• MITSUBISHI ELECTRIC MSZ-GX18NL - Mitsubishi Electric MSZ-GX18NL R454B 18k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 422.1 lb (Mitsubishi 225 lb + Mitsubishi 154 lb + Mitsubishi 28 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM48NL: 48,000 BTU, R454B refrigerant, 8 zones, SEER2 up to 21.50
• MSZ-GX06NL: 6,000 BTU, R454B refrigerant, SEER2 up to 28.4, Wi-Fi enabled
• MSZ-GX18NL: 18,000 BTU, R454B refrigerant, SEER2 22.5, built-in Wi-Fi
• PAC-LMA50BC: 5 ports, 208/230V, supports up to 5 indoor units
• PAC-LMA30BC: 3 ports, 208/230V, connects up to 3 indoor units
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B, high-quality copper

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, providing efficient heating and cooling solutions for both residential and commercial environments. The outdoor heat pump unit connects seamlessly with the wall-mounted air handlers and branch boxes, ensuring optimal refrigerant flow and temperature control across multiple zones.
