Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 8-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+6K+6K+6K+9K+9K+12K

Description

This comprehensive Mitsubishi Electric HVAC bundle is designed to provide optimal heating and cooling solutions for both residential and commercial environments. Featuring a powerful MXZ-SM48NL outdoor heat pump unit that supports multiple indoor zones, this package includes a variety of wall-mounted air handlers (MSZ-FX06NL, MSZ-FX09NL, MSZ-FX12NL) that deliver efficient performance and advanced features like built-in Wi-Fi and superior air filtration. Additionally, the bundle includes essential branch boxes (PAC-LMA50BC and PAC-LMA30BC) and a distribution kit (MSDD-50AR2-E) to ensure seamless refrigerant flow and system integration. Together, these components create a versatile and efficient multi-zone climate control system.

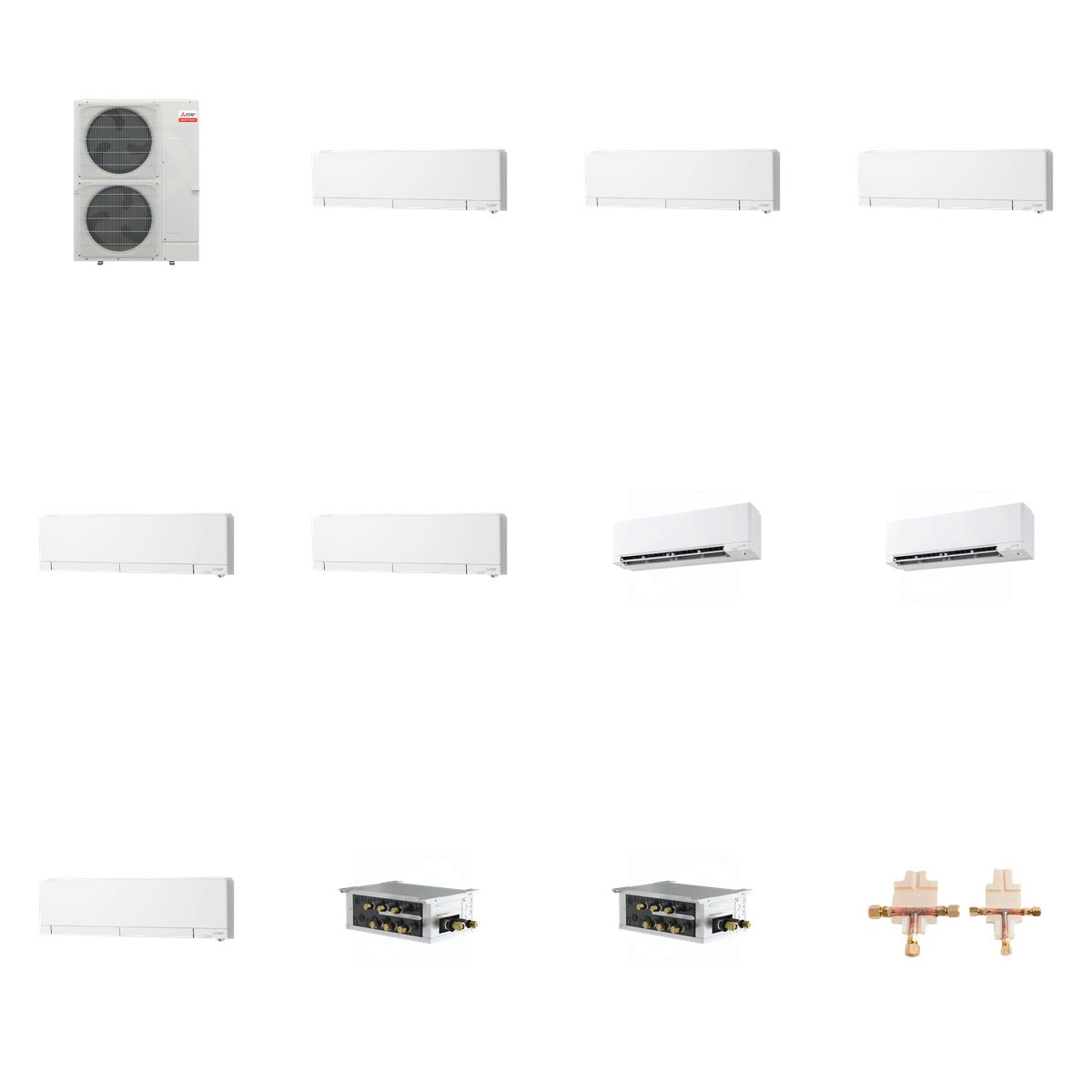

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x5)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-FX12NL - Mitsubishi Electric MSZ-FX12NL FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 494.3 lb (Mitsubishi 225 lb + Mitsubishi 145 lb + Mitsubishi 72.8 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM48NL: 48,000 BTU, R454B refrigerant, cooling/heating, 8 zones
• MSZ-FX06NL: 6,000 BTU, SEER2 up to 35, Wi-Fi enabled, 20-42 dB noise level
• MSZ-FX09NL: 9,000 BTU, SEER2 up to 35, Wi-Fi enabled, 20-44 dB noise level
• MSZ-FX12NL: 12,000 BTU, SEER2 up to 35, Wi-Fi enabled, 20-44 dB noise level
• PAC-LMA50BC: 5 ports, 208/230V, single-phase
• PAC-LMA30BC: 3 ports, 208/230V, single-phase
• MSDD-50AR2-E: Flare connection, oxygen-free copper, compatible with R-410A/R-454B

Use & Compatibility

This bundle is ideal for creating a multi-zone heating and cooling system, suitable for both residential and commercial applications. The outdoor heat pump unit connects seamlessly with the included wall-mounted air handlers, providing efficient climate control across various spaces. The branch boxes and distribution kit enhance refrigerant management, ensuring optimal performance and comfort in any environment.
