Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 8-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+6K+6K+6K+6K+9K+9K

Description

This comprehensive HVAC bundle is designed for optimal heating and cooling performance in multi-zone applications. The Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit serves as the powerhouse, connecting multiple indoor units to efficiently manage temperature across various spaces. Complementing this outdoor unit are the MSZ-FX06NL and MSZ-FX09NL wall-mounted air handlers, which provide flexible heating and cooling solutions for individual rooms. The inclusion of both the PAC-LMA30BC and PAC-LMA50BC branch boxes allows for seamless refrigerant flow management, while the MSDD-50AR2-E branch pipe distribution kit ensures balanced refrigerant distribution, maximizing system efficiency. Together, these components create a robust and versatile HVAC system suitable for both residential and commercial environments.

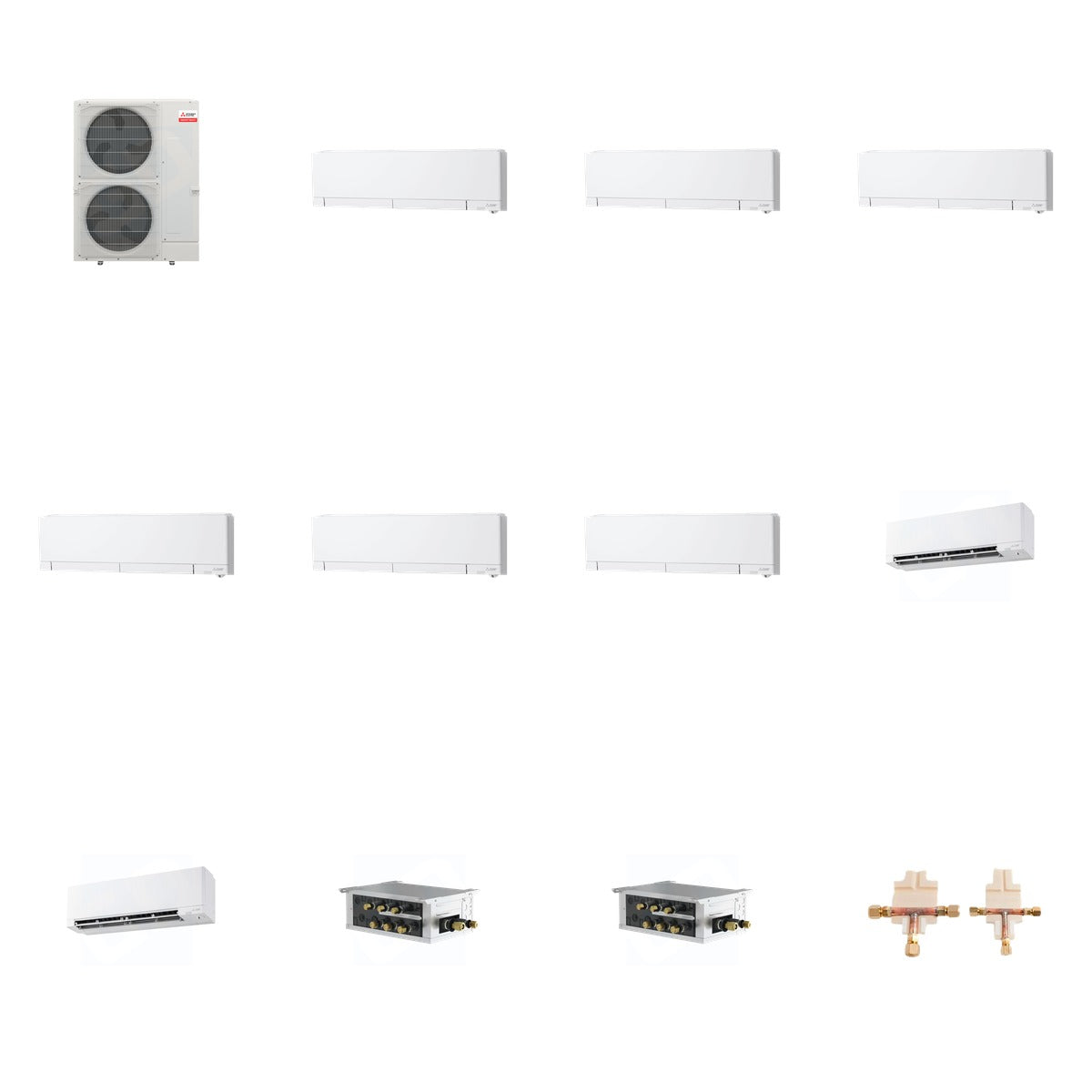

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x6)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 486.9 lb (Mitsubishi 225 lb + Mitsubishi 174 lb + Mitsubishi 72.8 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM48NL: 48,000 BTU, SEER2: 21.50, Heating Capacity: 48,000 BTU
• MSZ-FX06NL: 6,000 BTU, SEER2: Up to 35, Heating Capacity: 9,000 BTU
• MSZ-FX09NL: 9,000 BTU, SEER2: Up to 35, Heating Capacity: 12,000 BTU
• PAC-LMA50BC: 5 ports, Voltage: 208/230V, Compatible with MXZ models
• PAC-LMA30BC: 3 ports, Voltage: 208/230V, Compatible with R454B refrigerant
• MSDD-50AR2-E: Flare connection, Compatible with R-410A/R-454B

Use & Compatibility

This bundle is ideal for both residential and commercial HVAC applications, providing efficient heating and cooling solutions across multiple zones. The outdoor heat pump unit is compatible with various indoor units, while the branch boxes and distribution kit ensure optimal refrigerant flow for enhanced performance and comfort.
