Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 8-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+6K+6K+6K+6K+9K+15K

Description

This comprehensive HVAC bundle features a selection of high-performance Mitsubishi Electric products designed to create an efficient and versatile multi-zone climate control system. The MXZ-SM48NL outdoor heat pump unit serves as the backbone, supporting up to eight indoor units, while the MSZ-FX06NL, MSZ-FX09NL, and MSZ-FX15NL wall-mounted air handlers provide targeted heating and cooling for various room sizes. The included PAC-LMA50BC and PAC-LMA30BC branch boxes ensure optimal refrigerant distribution, enhancing system performance. Completing the bundle, the MSDD-50AR2-E branch pipe distribution kit allows for seamless installation and balanced refrigerant flow, making this bundle ideal for both residential and commercial applications.

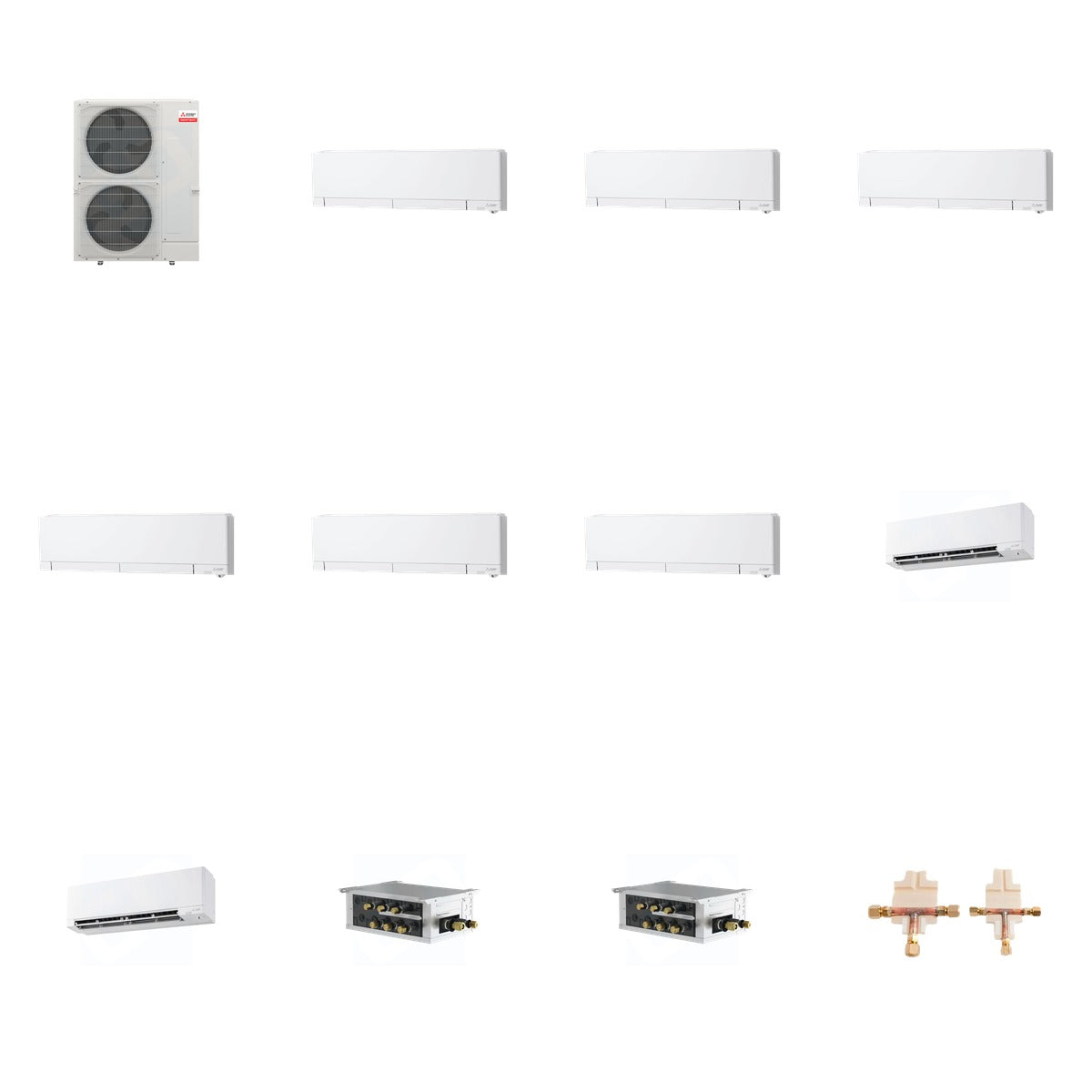

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x6)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX15NL - Mitsubishi Electric MSZ-FX15NL FX-Series Wall Mounted Unit 15k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 486.9 lb (Mitsubishi 225 lb + Mitsubishi 174 lb + Mitsubishi 36.4 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM48NL: 48,000 BTU, R454B refrigerant, SEER2 up to 21.50
• MSZ-FX06NL: 6,000 BTU, SEER2 up to 35, HSPF2 up to 13.3
• MSZ-FX09NL: 9,000 BTU, SEER2 up to 35, HSPF2 up to 13.3
• MSZ-FX15NL: 15,000 BTU, SEER2 up to 20.0, HSPF2 up to 10.5
• PAC-LMA50BC: 5 ports, 208/230V, compatible with MXZ units
• PAC-LMA30BC: 3 ports, 208/230V, compatible with R454B refrigerant
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B

Use & Compatibility

This bundle is designed for use in both residential and commercial settings, providing efficient heating and cooling solutions for various room sizes. The outdoor unit is compatible with multiple indoor units, allowing for customized climate control across different zones. The branch boxes and distribution kit ensure optimal refrigerant management, making installation straightforward and effective.
