Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 8-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+6K+6K+6K+6K+6K+9K

Description

This comprehensive bundle is designed for optimal performance in multi-zone HVAC systems, featuring a combination of essential components from Mitsubishi Electric. The MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit serves as the powerhouse, supporting up to eight indoor units for versatile heating and cooling. Paired with the MSZ-FX06NL and MSZ-FX09NL wall-mounted air handlers, this setup ensures efficient climate control across various room sizes. The inclusion of two branch boxes (PAC-LMA50BC and PAC-LMA30BC) allows for seamless refrigerant distribution, while the MSDD-50AR2-E branch pipe distribution kit guarantees balanced pressure and minimizes installation complexity. Together, these products create a robust and efficient HVAC solution for both residential and commercial applications.

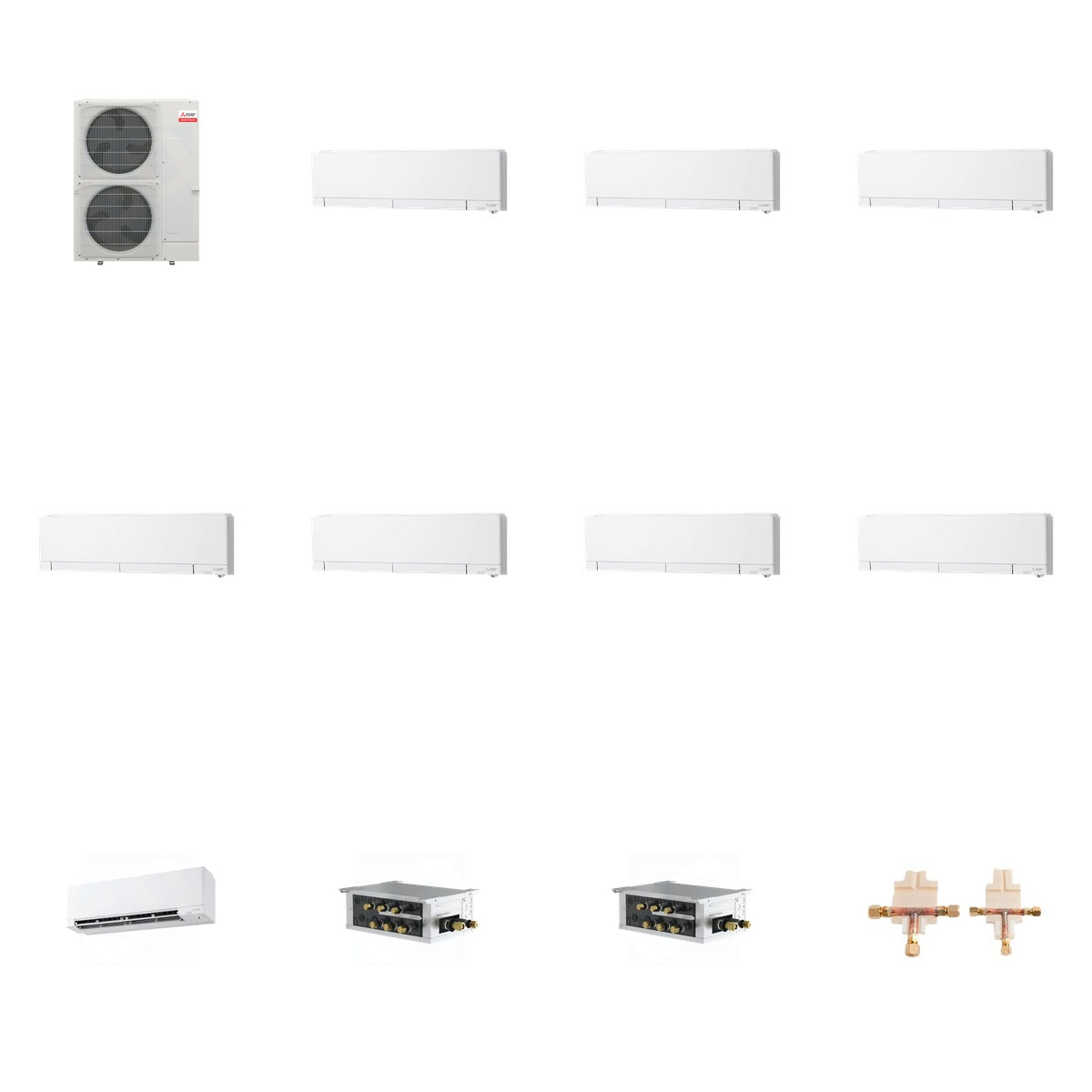

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x7)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 479.5 lb (Mitsubishi 225 lb + Mitsubishi 203 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM48NL: 48,000 BTU, R454B refrigerant, SEER2: 21.50, Cooling capacity: 42,000 BTU, Heating capacity: 48,000 BTU
• MSZ-FX06NL: 6,000 BTU, SEER2: Up to 35, Heating capacity: 9,000 BTU, Voltage: 208/230V
• MSZ-FX09NL: 9,000 BTU, SEER2: Up to 35, Heating capacity: 12,000 BTU, Voltage: 208/230V
• PAC-LMA50BC: 5 ports, Voltage: 208/230V
• PAC-LMA30BC: 3 ports, Voltage: 208/230V
• MSDD-50AR2-E: Flare connection, Oxygen-free copper construction

Use & Compatibility

This bundle is ideal for both residential and commercial HVAC systems, providing efficient heating and cooling across multiple zones. The components are compatible with Mitsubishi Electric's multi-zone mini-split systems, ensuring optimal refrigerant flow and temperature control for a variety of indoor environments.
