Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 8-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+6K+6K+6K+9K+9K+12K

Description

This comprehensive HVAC bundle features a selection of high-performance Mitsubishi Electric products, designed to provide efficient heating and cooling solutions for multi-zone systems. The MXZ-SM48NL outdoor heat pump unit serves as the powerhouse, capable of supporting multiple indoor units, while the MLZ-KX series ceiling cassettes offer versatile installation options for various room sizes. The included branch boxes and distribution kits ensure optimal refrigerant flow and system efficiency, making this bundle ideal for both residential and commercial applications.

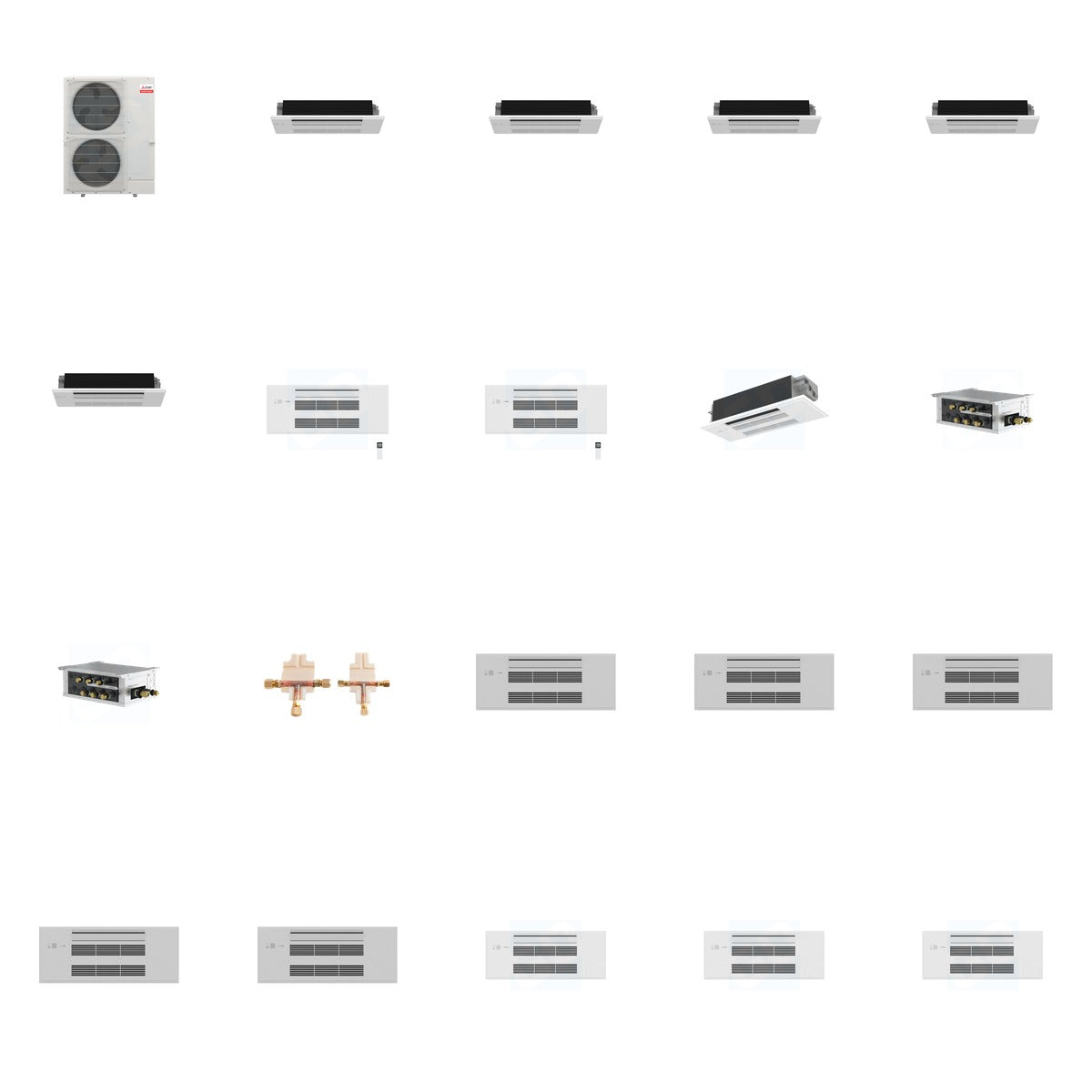

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x5)
• MITSUBISHI ELECTRIC MLZ-KX09NL - Mitsubishi Electric MLZ-KX09NL 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x2)
• MITSUBISHI ELECTRIC MLZ-KX12NL - Mitsubishi Electric MLZ-KX12NL 12k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Mitsubishi Electric MLP-448WU - (Grille for MLZ-KY Series) (Qty x5)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x3)

Key Details

• Weight of Bundle: 515.8 lb (Mitsubishi 225 lb + Mitsubishi 170 lb + Mitsubishi 6.7 lb + Mitsubishi 34 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 35 lb + Mitsubishi 30 lb)
• MXZ-SM48NL: 48,000 BTU, SEER2: 21.50, Heating Capacity: 48,000 BTU
• MLZ-KX06NL: 6,000 BTU, Cooling Capacity: 6,000 BTU, Heating Capacity: 7,200 BTU
• MLZ-KX09NL: 9,000 BTU, Cooling Capacity: 9,000 BTU, Heating Capacity: 12,000 BTU
• MLZ-KX12NL: 12,000 BTU, Cooling Capacity: 12,000 BTU, Heating Capacity: 15,400 BTU
• PAC-LMA50BC: 5 ports, Voltage: 208/230V
• PAC-LMA30BC: 3 ports, Voltage: 208/230V
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B
• MLP-448WU: Dimensions: 16.5 x 38.5 x 4.25 inches
• MLP-449WU: Designed for MLZ Series Indoor Units

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, providing both heating and cooling capabilities. The outdoor unit is compatible with various indoor units from the M- and P-Series, as well as City Multi systems. Ideal for residential and commercial applications, the included branch boxes and distribution kit facilitate efficient refrigerant management, ensuring optimal performance across multiple zones.
