Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 8-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+6K+6K+6K+6K+9K+9K

Description

This comprehensive HVAC bundle from Mitsubishi Electric is designed to provide efficient heating and cooling solutions for multi-zone systems. The package includes a powerful outdoor heat pump unit capable of supporting multiple indoor units, ensuring optimal temperature control across various spaces. With a combination of ceiling cassette indoor units, branch boxes for refrigerant management, and essential grilles for air distribution, this bundle is perfect for both residential and commercial applications. Each component is engineered for compatibility and performance, making it an ideal choice for those looking to upgrade or install a new HVAC system.

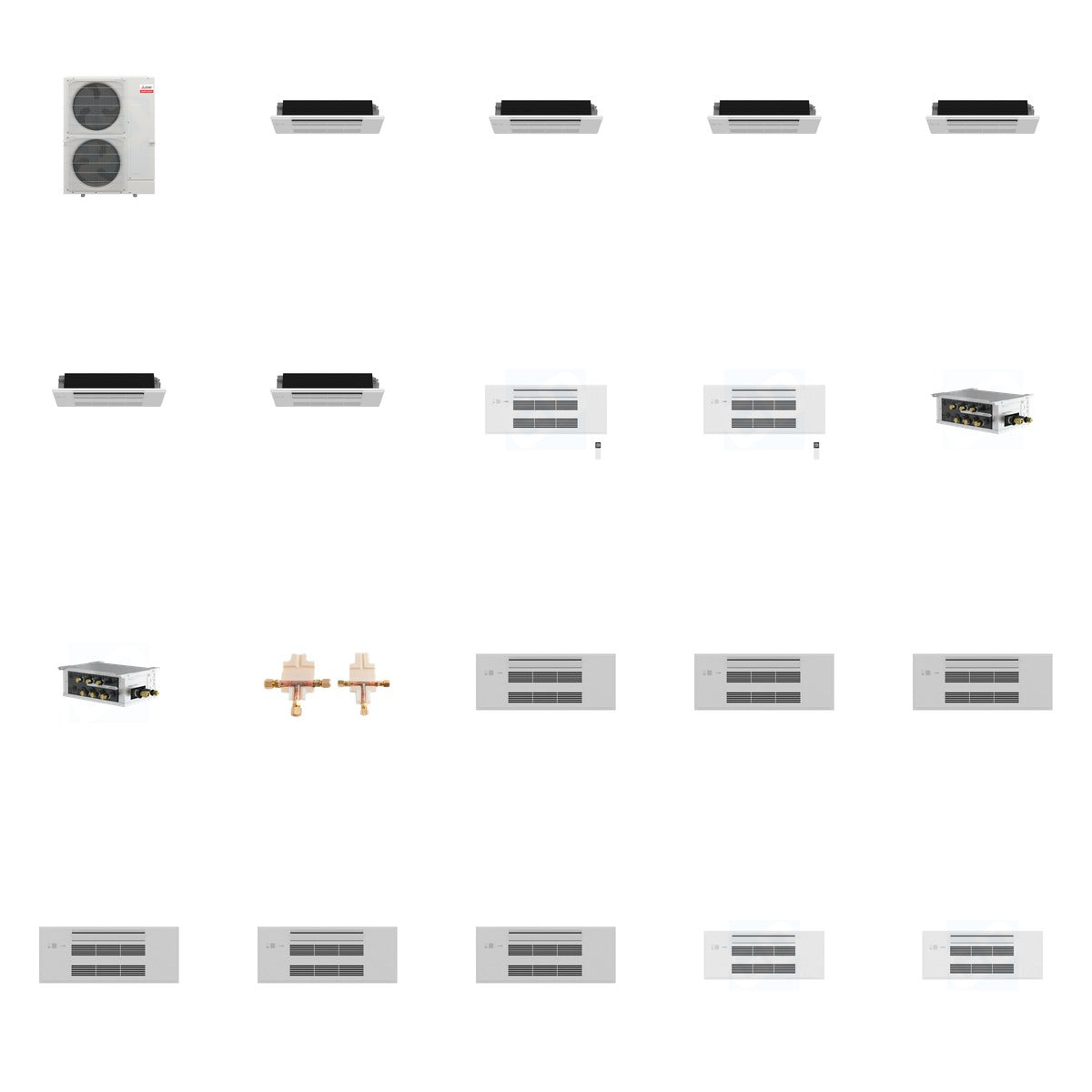

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x6)
• MITSUBISHI ELECTRIC MLZ-KX09NL - Mitsubishi Electric MLZ-KX09NL 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Mitsubishi Electric MLP-448WU - (Grille for MLZ-KY Series) (Qty x6)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x2)

Key Details

• Weight of Bundle: 512.8 lb (Mitsubishi 225 lb + Mitsubishi 204 lb + Mitsubishi 6.7 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 42 lb + Mitsubishi 20 lb)
• Outdoor Unit Capacity: 48,000 BTU
• Indoor Unit Capacities: 6,000 BTU (x6), 9,000 BTU (x2)
• Refrigerant Type: R-454B
• SEER2 Rating: Up to 21.50
• Voltage: 208/230 Volts
• Dimensions (Outdoor Unit): 41-11/32 W x 13 D x 52-11/16 H
• Dimensions (Indoor Units): 33-3/16 W x 11-7/8 D x 7-11/16 H (6k BTU), 43-3/8 x 14-3/16 x 7-5/16 inches (9k BTU)
• Branch Box Ports: 3 or 5
• Grille Dimensions: 16.5 W x 38.5 L x 4.25 H (MLP-448WU), compatible with MLZ-KY Series

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, making it suitable for both residential and commercial applications. The outdoor heat pump unit connects to various indoor units, providing flexible heating and cooling options. The branch boxes facilitate efficient refrigerant distribution, while the grilles ensure optimal airflow for enhanced system performance.
