Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 8-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+6K+6K+6K+6K+6K+9K

Description

This comprehensive HVAC bundle includes essential components for creating an efficient multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM48NL outdoor heat pump unit serves as the powerhouse, capable of connecting to multiple indoor units for optimal climate control across various spaces. The MLZ-KX06NL and MLZ-KX09NL ceiling cassette units provide versatile heating and cooling solutions for smaller areas, while the PAC-LMA50BC and PAC-LMA30BC branch boxes ensure effective refrigerant distribution. Additionally, the MSDD-50AR2-E branch pipe distribution kit facilitates seamless refrigerant flow, and the MLP-448WU and MLP-449WU grilles enhance air circulation for improved system performance. Together, these components create a robust and efficient HVAC system suitable for both residential and commercial applications.

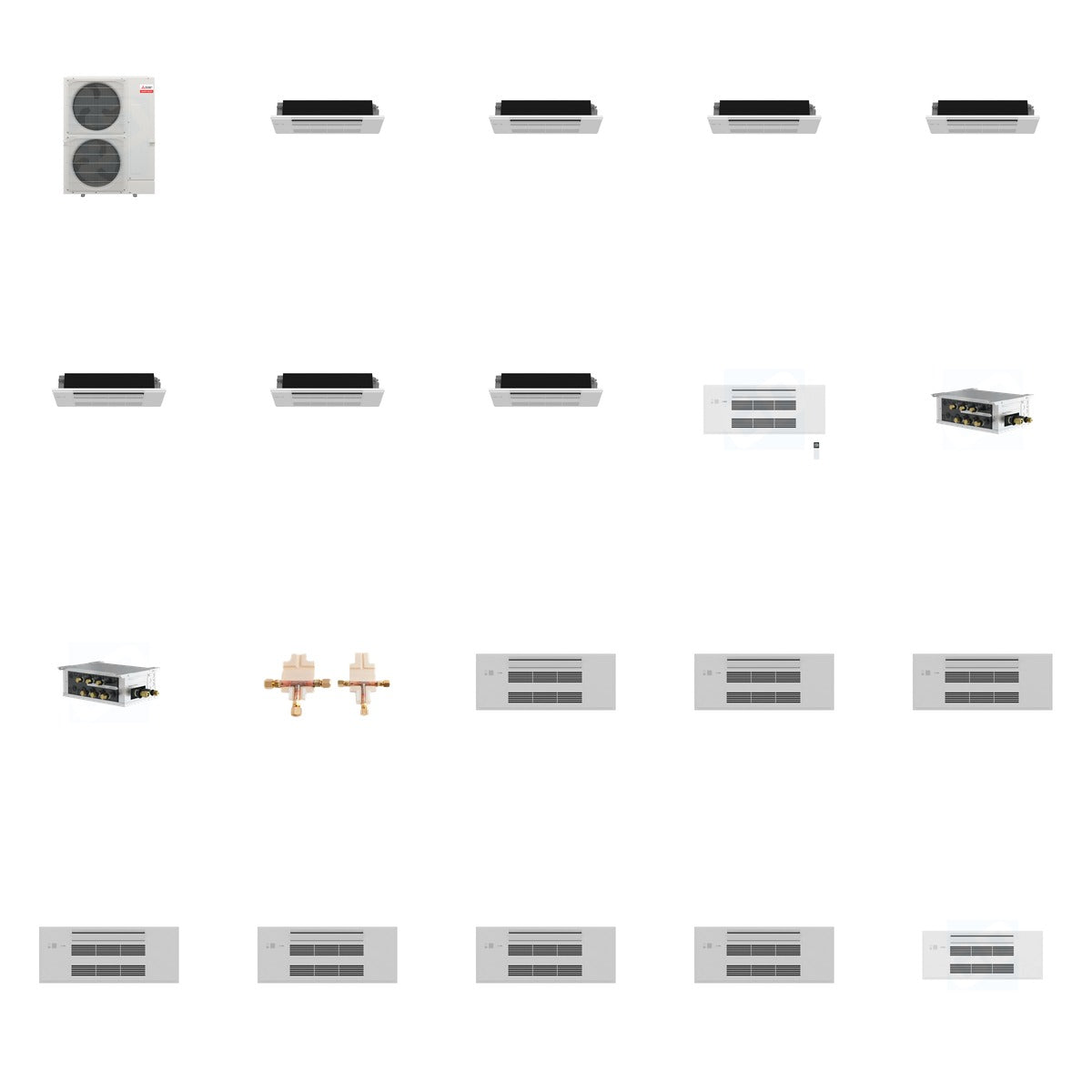

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x7)
• MITSUBISHI ELECTRIC MLZ-KX09NL - Mitsubishi Electric MLZ-KX09NL 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Mitsubishi Electric MLP-448WU - (Grille for MLZ-KY Series) (Qty x7)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x1)

Key Details

• Weight of Bundle: 540.4 lb (Mitsubishi 225 lb + Mitsubishi 238 lb + Mitsubishi 3.3 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 49 lb + Mitsubishi 10 lb)
• MXZ-SM48NL: 48,000 BTU, R454B refrigerant, SEER2: 21.50, Heating Capacity: 48,000 BTU
• MLZ-KX06NL: 6,000 BTU, R-454B refrigerant, Room Capacity: up to 200 sq ft
• MLZ-KX09NL: 9,000 BTU, R-454B refrigerant, Room Capacity: up to 350 sq ft
• PAC-LMA50BC: 5 ports, 208/230 Volts, supports up to 5 indoor units
• PAC-LMA30BC: 3 ports, 208/230 Volts, connects up to 3 indoor units
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B, Oxygen-Free Copper construction
• MLP-448WU: Dimensions: 16.5 in x 38.5 in x 4.25 in, Weight: 7.9 lbs
• MLP-449WU: Dimensions: 16.5 in x 38.5 in x 4.25 in, Weight: 7.9 lbs

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, providing efficient heating and cooling solutions for both residential and commercial applications. The outdoor unit connects seamlessly with the included indoor ceiling cassettes, while the branch boxes and distribution kit ensure optimal refrigerant flow and temperature control across multiple zones.
