Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 8-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+6K+6K+6K+6K+12K+12K

Description

This comprehensive HVAC bundle features essential components designed to optimize your multi-zone heating and cooling systems. The Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit serves as the powerhouse of this setup, efficiently managing up to eight indoor zones. Complementing this are the MLZ-KX06NL and MLZ-KX12NL ceiling cassette indoor units, which provide versatile heating and cooling for smaller spaces. To ensure smooth refrigerant flow, the bundle includes both the PAC-LMA50BC and PAC-LMA30BC branch boxes, allowing for seamless connections to multiple indoor units. Additionally, the MSDD-50AR2-E branch pipe distribution kit and the MLP-449WU and MLP-448WU grilles enhance system performance and air distribution, making this bundle ideal for residential and commercial applications alike.

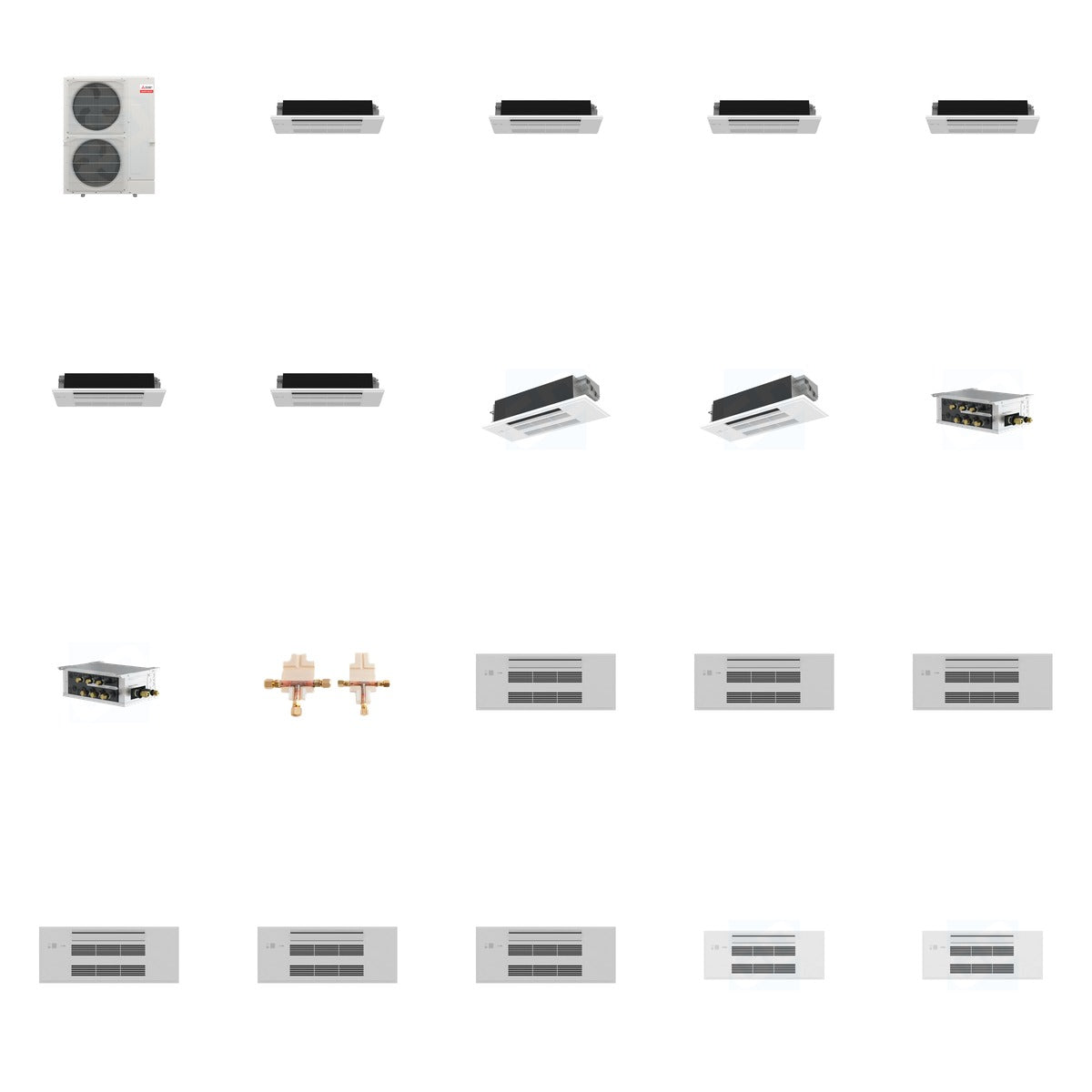

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x6)
• MITSUBISHI ELECTRIC MLZ-KX12NL - Mitsubishi Electric MLZ-KX12NL 12k BTU One-Way Ceiling Cassette Indoor Unit (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Mitsubishi Electric MLP-448WU - (Grille for MLZ-KY Series) (Qty x6)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x2)

Key Details

• Weight of Bundle: 574.1 lb (Mitsubishi 225 lb + Mitsubishi 204 lb + Mitsubishi 68 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 42 lb + Mitsubishi 20 lb)
• MXZ-SM48NL: 48,000 BTU, SEER2: 21.50, R454B refrigerant
• MLZ-KX06NL: 6,000 BTU, Wi-Fi enabled, 208/230V
• MLZ-KX12NL: 12,000 BTU, Wi-Fi enabled, 208/230V
• PAC-LMA50BC: 5 ports, 208/230V, supports up to 5 indoor units
• PAC-LMA30BC: 3 ports, 208/230V, connects up to 3 indoor units
• MSDD-50AR2-E: Flare connection, R-410A/R-454B compatible
• MLP-448WU: 16.5 x 38.5 x 4.25 inches, 7.9 lbs
• MLP-449WU: Compatible with MLZ Series, simple installation

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, providing efficient heating and cooling across various indoor environments. The components are compatible with Mitsubishi Electric's M-Series and City Multi systems, ensuring reliable performance and comfort in both residential and commercial settings.
