Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+9K+9K+9K+9K+12K

Description

This comprehensive bundle features essential components for optimizing multi-zone HVAC systems, specifically designed for use with Mitsubishi Electric's advanced mini-split technology. The Mitsubishi Electric MXZ-SM48NL outdoor heat pump unit serves as the powerhouse, supporting multiple indoor units for efficient heating and cooling across various zones. Coupled with the MSZ-GX06NL, MSZ-GX09NL, and MSZ-GX12NL wall-mounted air handlers, this bundle provides versatile options for different room sizes and configurations. The included branch boxes (PAC-LMA50BC and PAC-LMA30BC) ensure optimal refrigerant distribution, while the MSDD-50AR2-E branch pipe kit facilitates seamless installation. Together, these components deliver a reliable, energy-efficient climate control solution for both residential and commercial applications.

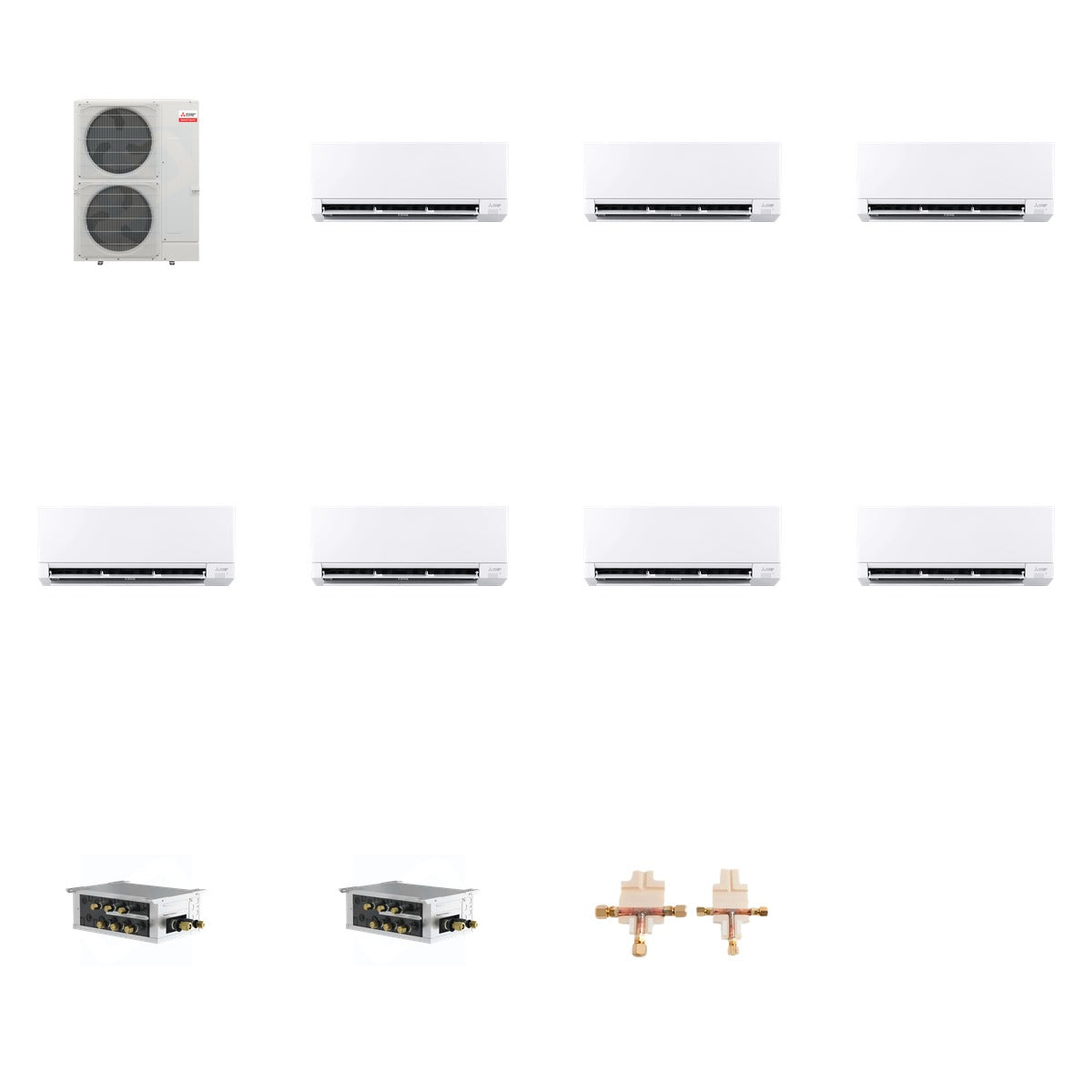

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - Mitsubishi Electric MSZ-GX06NL R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-GX09NL - Mitsubishi Electric MSZ-GX09NL R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x4)
• MITSUBISHI ELECTRIC MSZ-GX12NL - Mitsubishi Electric MSZ-GX12NL R454B 12k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 394.1 lb (Mitsubishi 225 lb + Mitsubishi 44 lb + Mitsubishi 88 lb + Mitsubishi 22 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM48NL: 48,000 BTU, R454B refrigerant, supports up to 12 zones
• MSZ-GX06NL: 6,000 BTU, SEER2 up to 28.4, Wi-Fi enabled
• MSZ-GX09NL: 9,000 BTU, SEER2 up to 28.4, quiet operation
• MSZ-GX12NL: 12,000 BTU, SEER2 up to 28.4, advanced filtration
• PAC-LMA50BC: 5 ports, 208/230V, electronic LEVs for refrigerant flow
• PAC-LMA30BC: 3 ports, 208/230V, balanced refrigerant flow
• MSDD-50AR2-E: Flare connection, oxygen-free copper, compatible with R-410A/R-454B

Use & Compatibility

This bundle is designed for residential and commercial HVAC applications, providing efficient heating and cooling for multi-zone systems. The outdoor unit is compatible with various indoor units, ensuring optimal performance and comfort across different spaces. Ideal for both new installations and upgrades, these components work seamlessly together to enhance climate control efficiency.
