Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+6K+9K+9K+9K+9K

Description

This comprehensive HVAC bundle includes essential components designed for efficient multi-zone climate control. The Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit serves as the powerhouse, capable of supporting up to 12 indoor units, making it ideal for larger spaces. Paired with three MSZ-GX06NL and four MSZ-GX09NL wall-mounted air handlers, this setup ensures optimal heating and cooling for various room sizes, from cozy bedrooms to expansive living areas. The PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate seamless refrigerant distribution, while the MSDD-50AR2-E branch pipe distribution kit enhances installation efficiency. Together, these components create a versatile and powerful HVAC solution suitable for both residential and commercial applications.

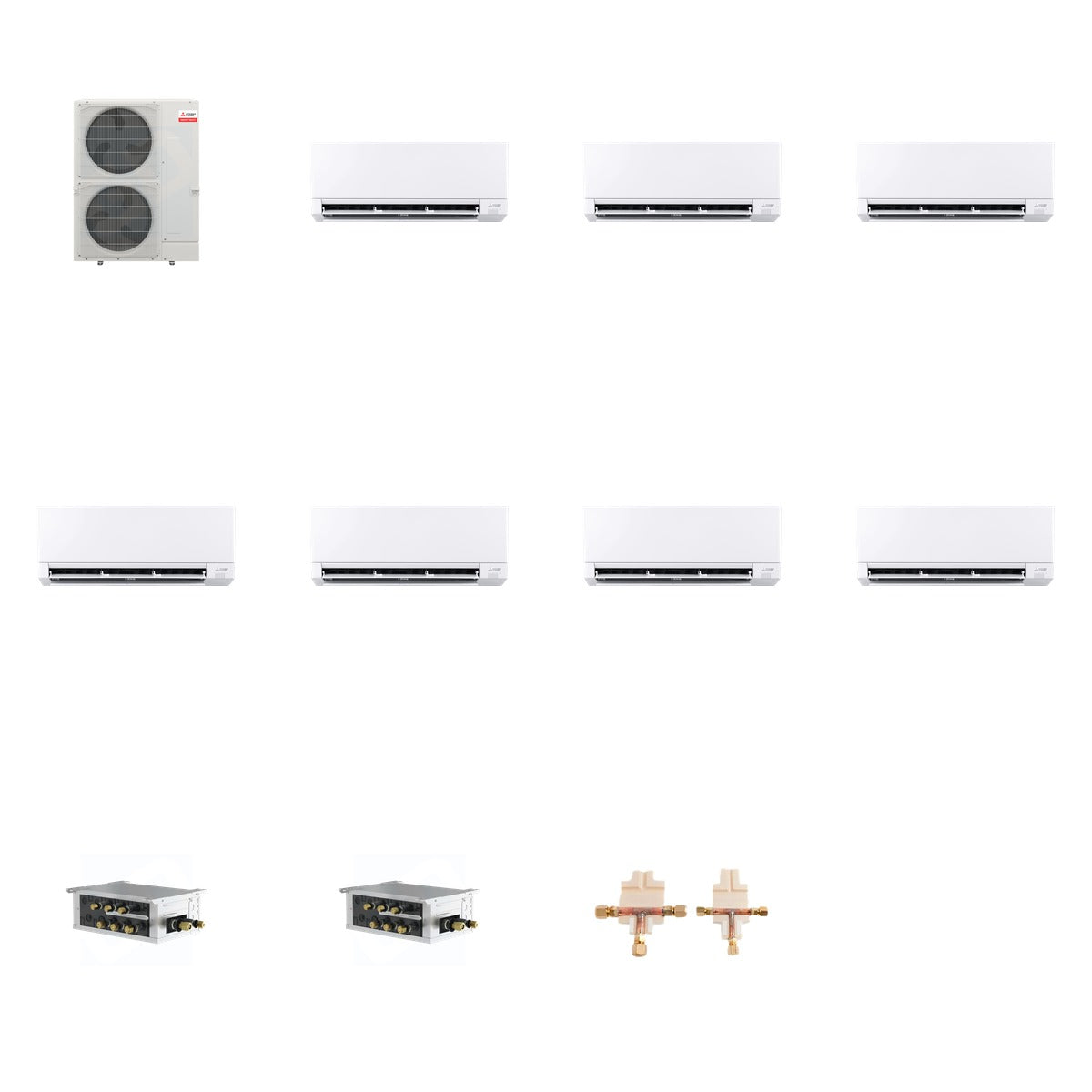

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-GX09NL - R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x4)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 394.1 lb (Mitsubishi 225 lb + Mitsubishi 66 lb + Mitsubishi 88 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM48NL: 48,000 BTU, SEER2: 21.50, R454B refrigerant
• MSZ-GX06NL: 6,000 BTU, SEER2: Up to 28.4, Wi-Fi enabled
• MSZ-GX09NL: 9,000 BTU, SEER2: Up to 28.4, Wi-Fi enabled
• PAC-LMA50BC: 5 ports, 208/230V, compatible with MXZ model
• PAC-LMA30BC: 3 ports, 208/230V, supports R454B refrigerant
• MSDD-50AR2-E: Flare connection, oxygen-free copper, compatible with R-410A/R-454B

Use & Compatibility

This bundle is intended for multi-zone heating and cooling applications, making it suitable for both residential and commercial environments. The components are designed to work seamlessly together, ensuring efficient refrigerant flow and optimal temperature control across multiple indoor units. Ideal for new installations or upgrades to existing systems, this bundle provides a comprehensive solution for effective climate management.
