Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+6K+9K+9K+9K+15K

Description

This comprehensive HVAC bundle is designed to provide optimal heating and cooling solutions for residential and commercial spaces. Featuring a powerful Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit, this bundle supports multiple indoor units, making it ideal for multi-zone applications. The included MSZ-GX06NL, MSZ-GX09NL, and MSZ-GX15NL wall-mounted air handlers ensure efficient temperature control in various room sizes, while the PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate seamless refrigerant management. The MSDD-50AR2-E branch pipe distribution kit further enhances system performance, ensuring balanced airflow and energy efficiency across all connected units.

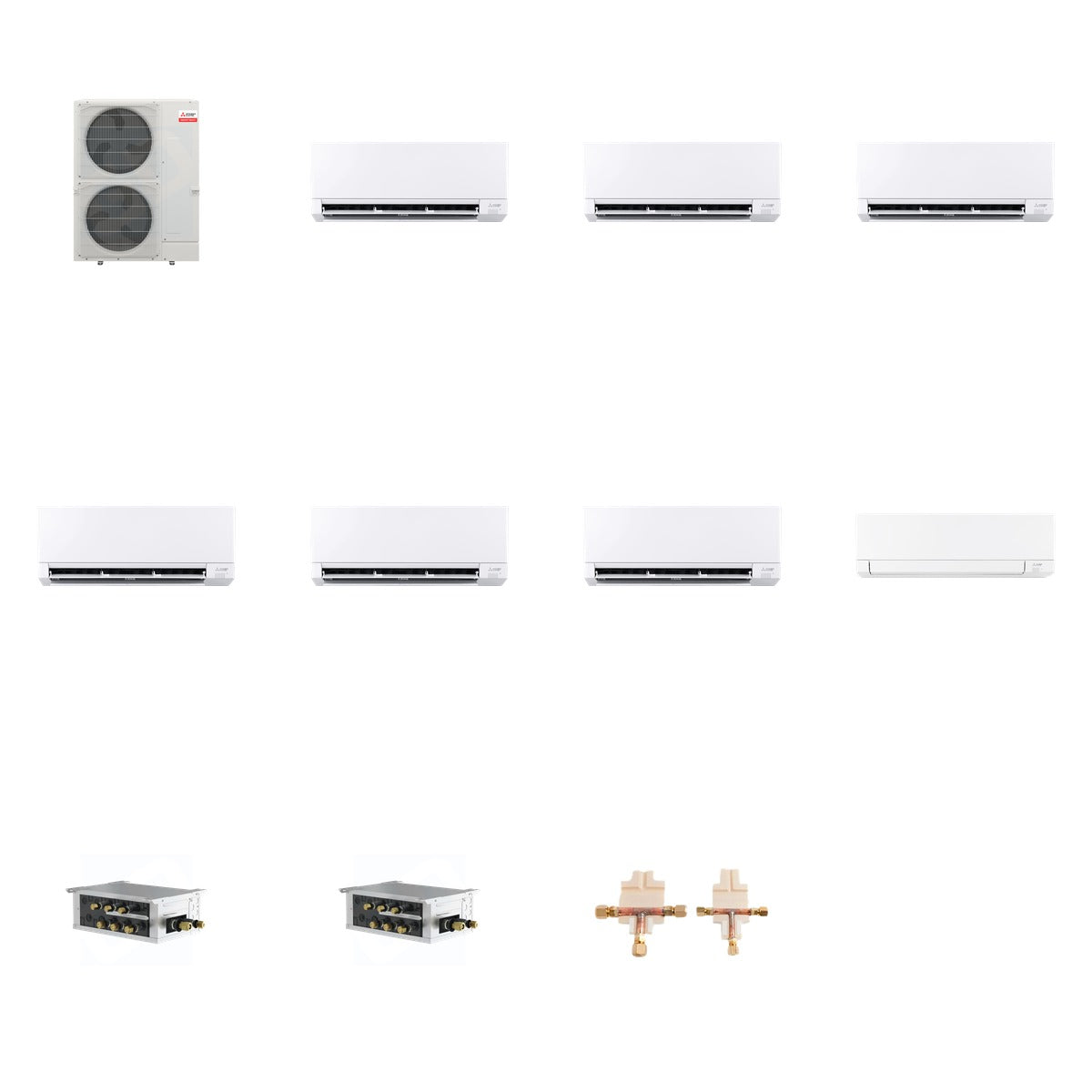

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - Mitsubishi Electric MSZ-GX06NL R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-GX09NL - Mitsubishi Electric MSZ-GX09NL R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-GX15NL - Mitsubishi Electric MSZ-GX15NL R454B 15k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 394.1 lb (Mitsubishi 225 lb + Mitsubishi 66 lb + Mitsubishi 66 lb + Mitsubishi 22 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM48NL: 48,000 BTU, R454B refrigerant, 8 zones, SEER2: 21.50
• MSZ-GX06NL: 6,000 BTU, R454B refrigerant, SEER2: Up to 28.4, up to 250 sq ft
• MSZ-GX09NL: 9,000 BTU, R454B refrigerant, SEER2: Up to 28.4, up to 350 sq ft
• MSZ-GX15NL: 15,000 BTU, R454B refrigerant, SEER2: Up to 28.4, up to 600 sq ft
• PAC-LMA50BC: 5 ports, 208/230 Volts, compatible with MXZ models
• PAC-LMA30BC: 3 ports, 208/230 Volts, compatible with R454B refrigerant
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B

Use & Compatibility

This bundle is perfect for both residential and commercial HVAC applications, providing efficient heating and cooling across multiple zones. The outdoor heat pump unit is compatible with various indoor units, allowing for flexible configurations. Each air handler is designed for quiet operation and easy installation, making them suitable for diverse environments.
