Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+6K+9K+9K+9K+12K

Description

This comprehensive HVAC bundle features a selection of high-efficiency Mitsubishi Electric products designed to create a powerful multi-zone climate control system. The MXZ-SM48NL outdoor heat pump unit serves as the backbone, capable of connecting to multiple indoor units for versatile heating and cooling. Complementing this are three wall-mounted air handlers (MSZ-GX06NL, MSZ-GX09NL, and MSZ-GX12NL) that provide targeted comfort in individual rooms. The bundle also includes essential branch boxes (PAC-LMA50BC and PAC-LMA30BC) for optimal refrigerant flow management, along with a branch pipe distribution kit (MSDD-50AR2-E) to ensure seamless installation and performance across the system. Together, these components deliver energy-efficient solutions tailored for both residential and commercial applications.

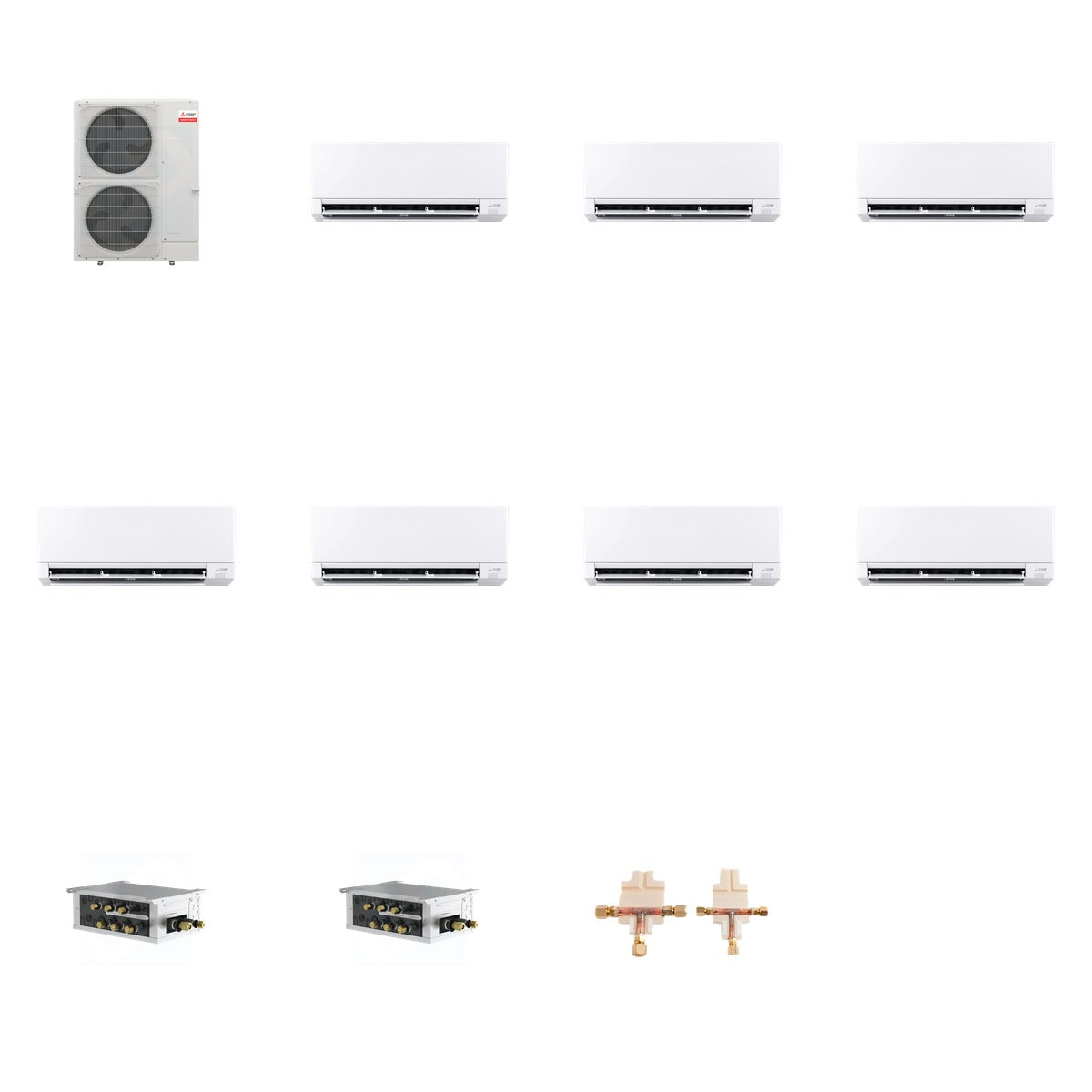

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - Mitsubishi Electric MSZ-GX06NL R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-GX09NL - Mitsubishi Electric MSZ-GX09NL R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-GX12NL - Mitsubishi Electric MSZ-GX12NL R454B 12k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 394.1 lb (Mitsubishi 225 lb + Mitsubishi 66 lb + Mitsubishi 66 lb + Mitsubishi 22 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM48NL: 48,000 BTU, R454B refrigerant, 21.50 SEER2, 8 zones
• MSZ-GX06NL: 6,000 BTU, R454B refrigerant, 28.4 SEER2, up to 250 sq ft
• MSZ-GX09NL: 9,000 BTU, R454B refrigerant, 28.4 SEER2, up to 300 sq ft
• MSZ-GX12NL: 12,000 BTU, R454B refrigerant, 28.4 SEER2, up to 400 sq ft
• PAC-LMA50BC: 5 ports, compatible with MXZ models, 208/230V
• PAC-LMA30BC: 3 ports, compatible with R454B refrigerant, 208/230V
• MSDD-50AR2-E: Flare connection, oxygen-free copper, R-410A/R-454B compatible

Use & Compatibility

This bundle is ideal for creating a multi-zone HVAC system, providing efficient heating and cooling for residential and commercial spaces. The outdoor heat pump unit connects seamlessly with the wall-mounted air handlers, while the branch boxes and distribution kit ensure optimal refrigerant flow and temperature control across all zones.
