Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+6K+6K+9K+9K+9K

Description

This comprehensive bundle is designed for those looking to optimize their HVAC systems with high-efficiency components from Mitsubishi Electric. The MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit serves as the powerhouse, capable of supporting multiple indoor units across various zones. The MSZ-GX06NL and MSZ-GX09NL wall-mounted air handlers provide efficient heating and cooling for smaller spaces, while the PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate seamless refrigerant flow to multiple indoor units. Completing the bundle, the MSDD-50AR2-E branch pipe distribution kit ensures balanced refrigerant distribution, enhancing system performance and longevity. Together, these components create a versatile and efficient multi-zone HVAC solution suitable for both residential and commercial applications.

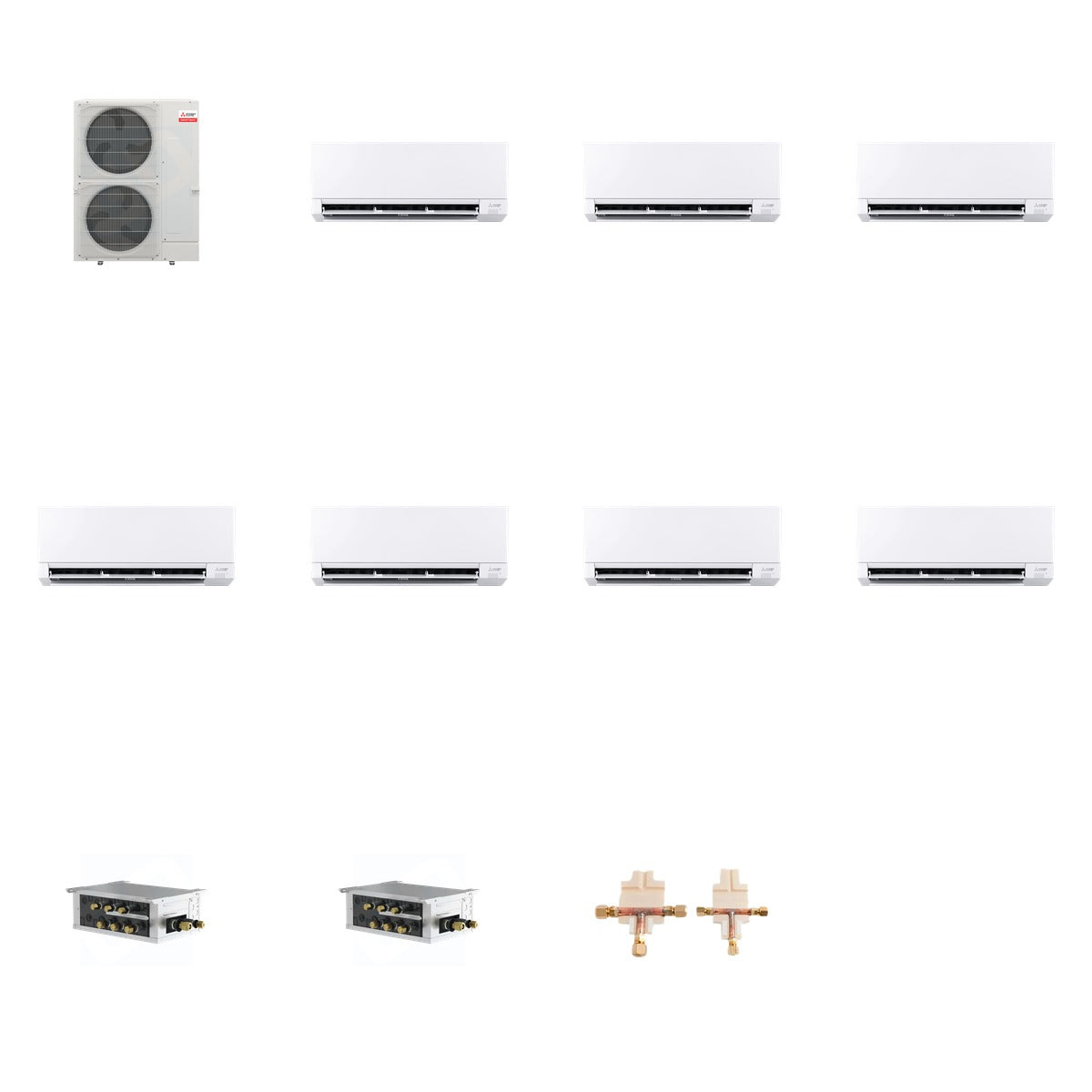

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - Mitsubishi Electric MSZ-GX06NL R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x4)
• MITSUBISHI ELECTRIC MSZ-GX09NL - Mitsubishi Electric MSZ-GX09NL R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x3)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 394.1 lb (Mitsubishi 225 lb + Mitsubishi 88 lb + Mitsubishi 66 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM48NL: 48,000 BTU, R454B refrigerant, SEER2 up to 21.50, operates in -24°F to 5°F.
• MSZ-GX06NL: 6,000 BTU, SEER2 up to 28.4, Wi-Fi enabled, operates up to 250 sq ft.
• MSZ-GX09NL: 9,000 BTU, SEER2 up to 28.4, operates up to 300 sq ft, minimum sound level 19 dB.
• PAC-LMA50BC: 5 ports, compatible with MXZ model, 208/230V.
• PAC-LMA30BC: 3 ports, compatible with R454B, 208/230V.
• MSDD-50AR2-E: Flare connection, oxygen-free copper, compatible with R-410A/R-454B.

Use & Compatibility

This bundle is ideal for creating a multi-zone HVAC system, perfect for both residential and commercial applications. The outdoor heat pump unit connects to various indoor air handlers, while the branch boxes and distribution kit ensure efficient refrigerant management. Compatible with Mitsubishi Electric's M-Series and City Multi systems, this setup guarantees optimal performance and comfort across multiple zones.
