Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+6K+6K+9K+12K+12K

Description

This comprehensive HVAC bundle includes a selection of Mitsubishi Electric products designed to create an efficient and effective multi-zone climate control system. The MXZ-SM48NL outdoor heat pump unit serves as the powerhouse, supporting multiple indoor air handlers for optimal heating and cooling across various spaces. The MSZ-GX06NL, MSZ-GX09NL, and MSZ-GX12NL wall-mounted air handlers provide tailored comfort for individual rooms, while the PAC-LMA50BC and PAC-LMA30BC branch boxes ensure seamless refrigerant distribution. Completing the bundle is the MSDD-50AR2-E branch pipe distribution kit, which enhances system performance and installation efficiency. Together, these components deliver a robust solution for both residential and commercial applications.

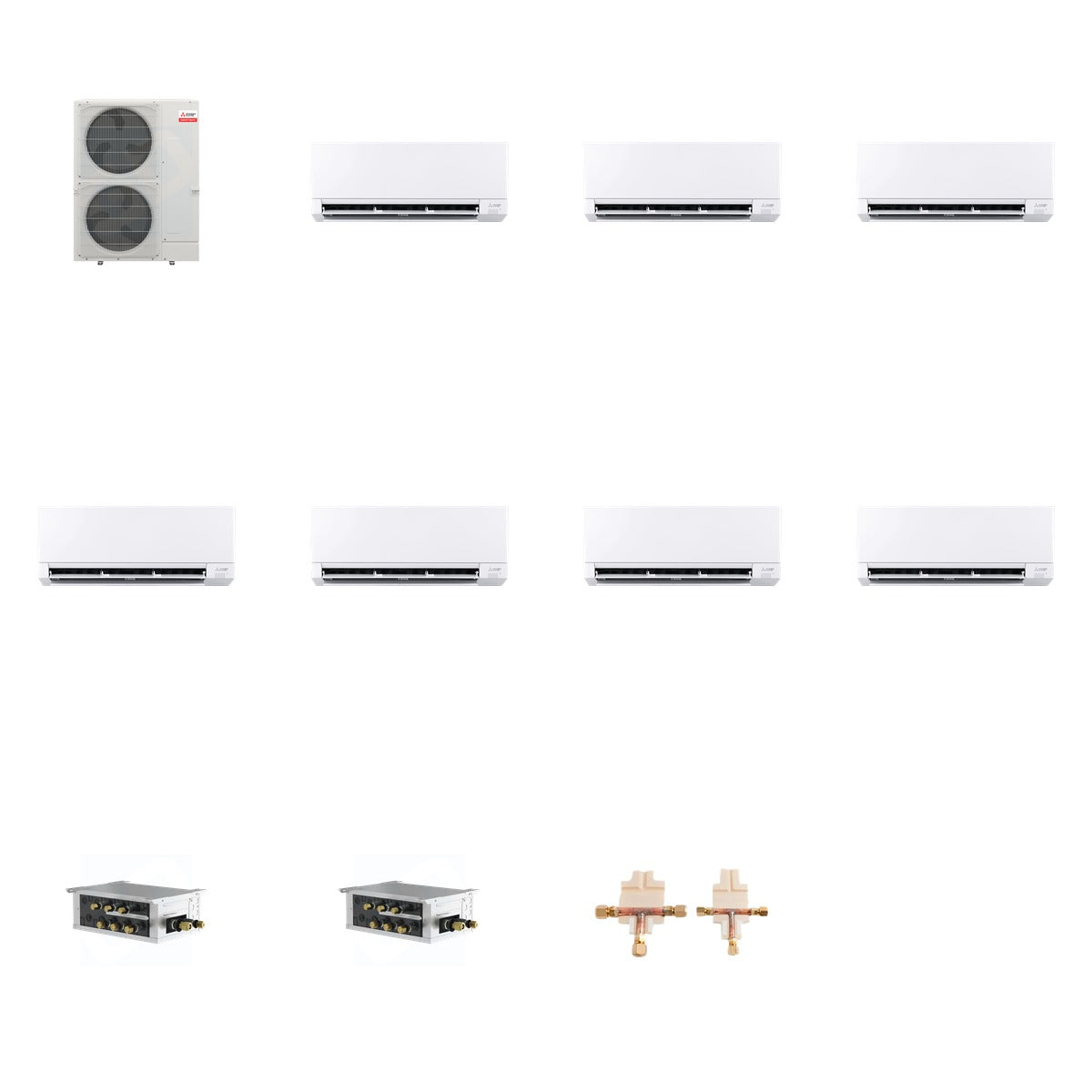

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - Mitsubishi Electric MSZ-GX06NL R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x4)
• MITSUBISHI ELECTRIC MSZ-GX09NL - Mitsubishi Electric MSZ-GX09NL R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX12NL - Mitsubishi Electric MSZ-GX12NL R454B 12k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 394.1 lb (Mitsubishi 225 lb + Mitsubishi 88 lb + Mitsubishi 22 lb + Mitsubishi 44 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM48NL: 48,000 BTU, SEER2: 21.50, Heating Capacity: 48,000 BTU
• MSZ-GX06NL: 6,000 BTU, SEER2: Up to 28.4, Heating Capacity: 7,200 BTU
• MSZ-GX09NL: 9,000 BTU, SEER2: Up to 28.4, Heating Capacity: 10,900 BTU
• MSZ-GX12NL: 12,000 BTU, SEER2: Up to 28.4, Heating Capacity: 14,400 BTU
• PAC-LMA50BC: 5 ports, Voltage: 208/230V, Phase: 1
• PAC-LMA30BC: 3 ports, Voltage: 208/230V, Phase: 1
• MSDD-50AR2-E: Flare connection, Compatible with R-410A/R-454B

Use & Compatibility

This bundle is intended for use in multi-zone HVAC systems, perfect for both residential and commercial applications. The outdoor heat pump unit is compatible with M-Series and City Multi indoor units, while the air handlers are designed for single or multi-zone configurations. The branch boxes and distribution kit facilitate efficient refrigerant flow, ensuring optimal performance across connected indoor units.
