Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+6K+6K+6K+6K+15K

Description

This comprehensive bundle features essential components for optimizing your multi-zone HVAC system. The Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit serves as the powerhouse, supporting multiple indoor units for efficient heating and cooling. Paired with the MSZ-GX06NL and MSZ-GX15NL wall-mounted air handlers, this setup provides versatile climate control for various room sizes. The PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate seamless refrigerant distribution, while the MSDD-50AR2-E branch pipe distribution kit ensures balanced performance across all connected units. Together, these products deliver a reliable and energy-efficient solution for both residential and commercial applications.

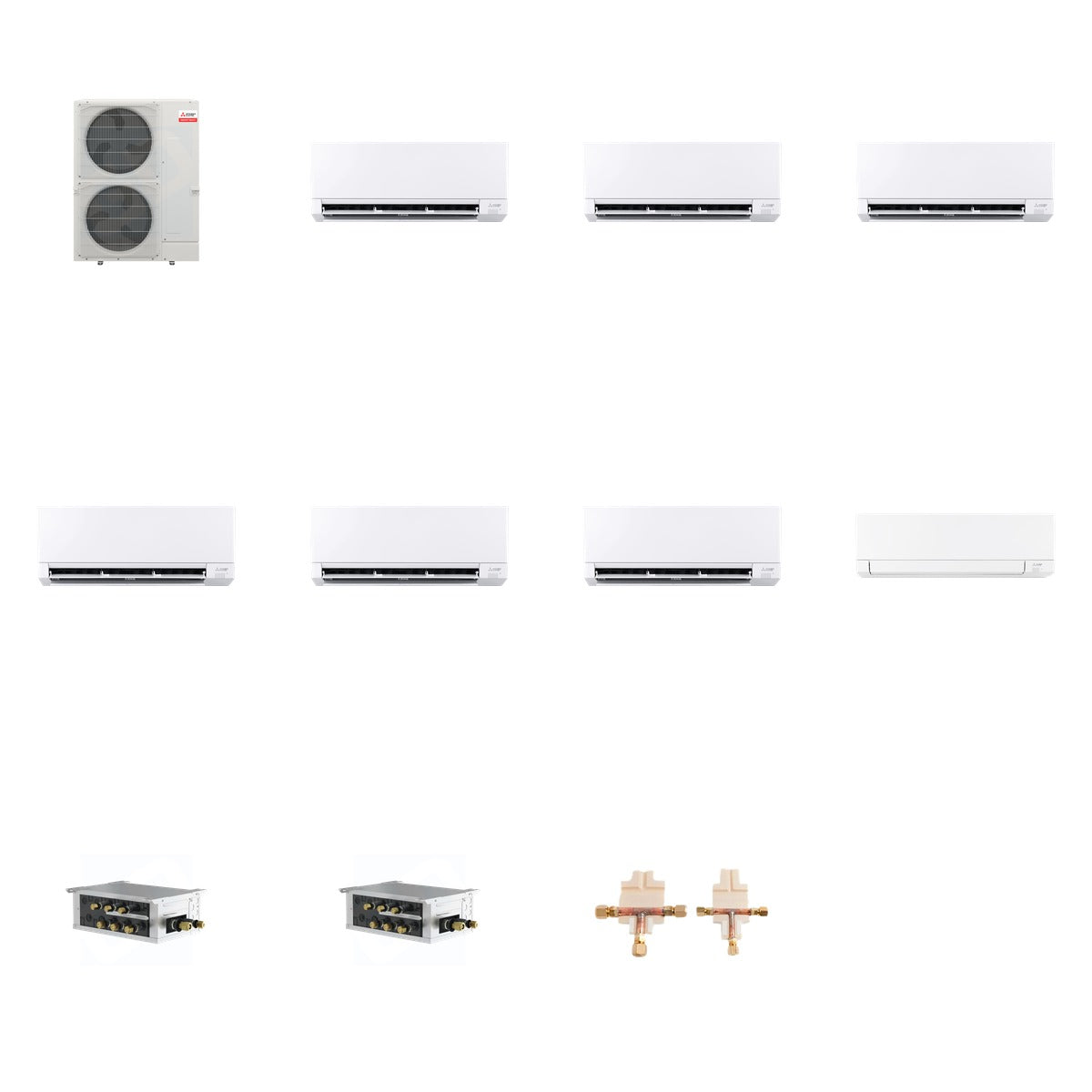

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x6)
• MITSUBISHI ELECTRIC MSZ-GX15NL - R454B 15k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 394.1 lb (Mitsubishi 225 lb + Mitsubishi 132 lb + Mitsubishi 22 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM48NL: 48,000 BTU, R454B refrigerant, connects up to 8 zones, SEER2: 21.50
• MSZ-GX06NL: 6,000 BTU, R454B refrigerant, cooling/heating for up to 250 sq ft, SEER2: Up to 28.4
• MSZ-GX15NL: 15,000 BTU, R454B refrigerant, cooling/heating capacity 14,000/18,000 BTU, SEER2: Up to 28.4
• PAC-LMA50BC: 5 ports, 208/230V, compatible with MXZ model
• PAC-LMA30BC: 3 ports, 208/230V, supports R454B refrigerant
• MSDD-50AR2-E: Flare connection, oxygen-free copper, compatible with R-410A/R-454B

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, providing efficient heating and cooling solutions for both residential and commercial spaces. The components are compatible with Mitsubishi Electric's M-Series and City Multi systems, ensuring optimal performance and energy efficiency across multiple indoor units.
