Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+6K+6K+6K+15K+15K

Description

This comprehensive HVAC bundle is designed for optimal performance and efficiency in multi-zone heating and cooling applications. Featuring a powerful Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit, this bundle supports multiple indoor units, making it ideal for both residential and commercial spaces. The included MSZ-GX06NL and MSZ-GX15NL wall-mounted air handlers provide efficient heating and cooling for smaller zones, while the PAC-LMA50BC and PAC-LMA30BC branch boxes ensure balanced refrigerant distribution. The MSDD-50AR2-E branch pipe distribution kit completes the setup, ensuring seamless integration and reliable operation across the system.

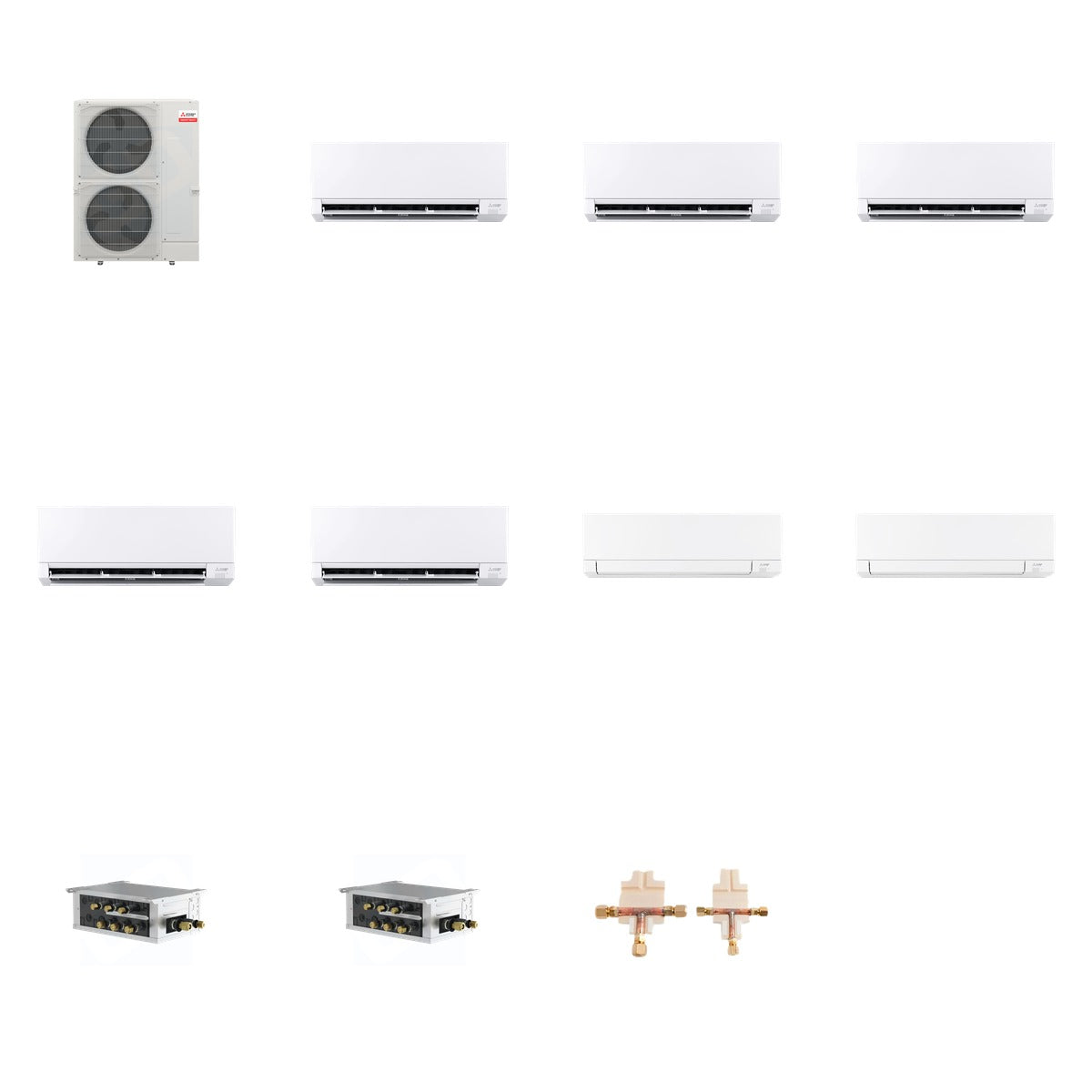

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - Mitsubishi Electric MSZ-GX06NL R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x5)
• MITSUBISHI ELECTRIC MSZ-GX15NL - Mitsubishi Electric MSZ-GX15NL R454B 15k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 394.1 lb (Mitsubishi 225 lb + Mitsubishi 110 lb + Mitsubishi 44 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM48NL: 48,000 BTU, R454B refrigerant, SEER2 up to 21.50, dimensions 41-11/32 W x 13 D x 52-11/16 H
• MSZ-GX06NL: 6,000 BTU, R454B refrigerant, SEER2 up to 28.4, dimensions 31-19/48 W x 11-37/48 H x 9-31/48 D
• MSZ-GX15NL: 15,000 BTU, R454B refrigerant, SEER2 not specified, dimensions 31.40 W x 11.77 H x 9.65 D
• PAC-LMA50BC: 5 ports, compatible with R454B, dimensions 17-3/4 W x 11-1/16 D x 6-3/4 H
• PAC-LMA30BC: 3 ports, compatible with R454B, dimensions 17-3/4 W x 11-1/16 D x 6-3/4 H
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B, dimensions 11.5 L x 6.2 W x 4.8 H

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, providing efficient heating and cooling across various indoor environments. The components are compatible with Mitsubishi Electric's M-Series and City Multi systems, ensuring seamless integration and optimal performance.
