Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+6K+6K+6K+12K+18K

Description

This comprehensive HVAC bundle is designed to provide efficient heating and cooling solutions for both residential and commercial spaces. Featuring the Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit, this bundle allows for multi-zone configurations, supporting up to 12 indoor units. The included wall-mounted air handlers (MSZ-GX06NL, MSZ-GX12NL, MSZ-GX18NL) offer varying capacities to suit different room sizes, ensuring optimal comfort. Additionally, the PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate seamless refrigerant distribution, while the MSDD-50AR2-E branch pipe kit enhances installation efficiency. Together, these components create a powerful and versatile HVAC system that meets diverse climate control needs.

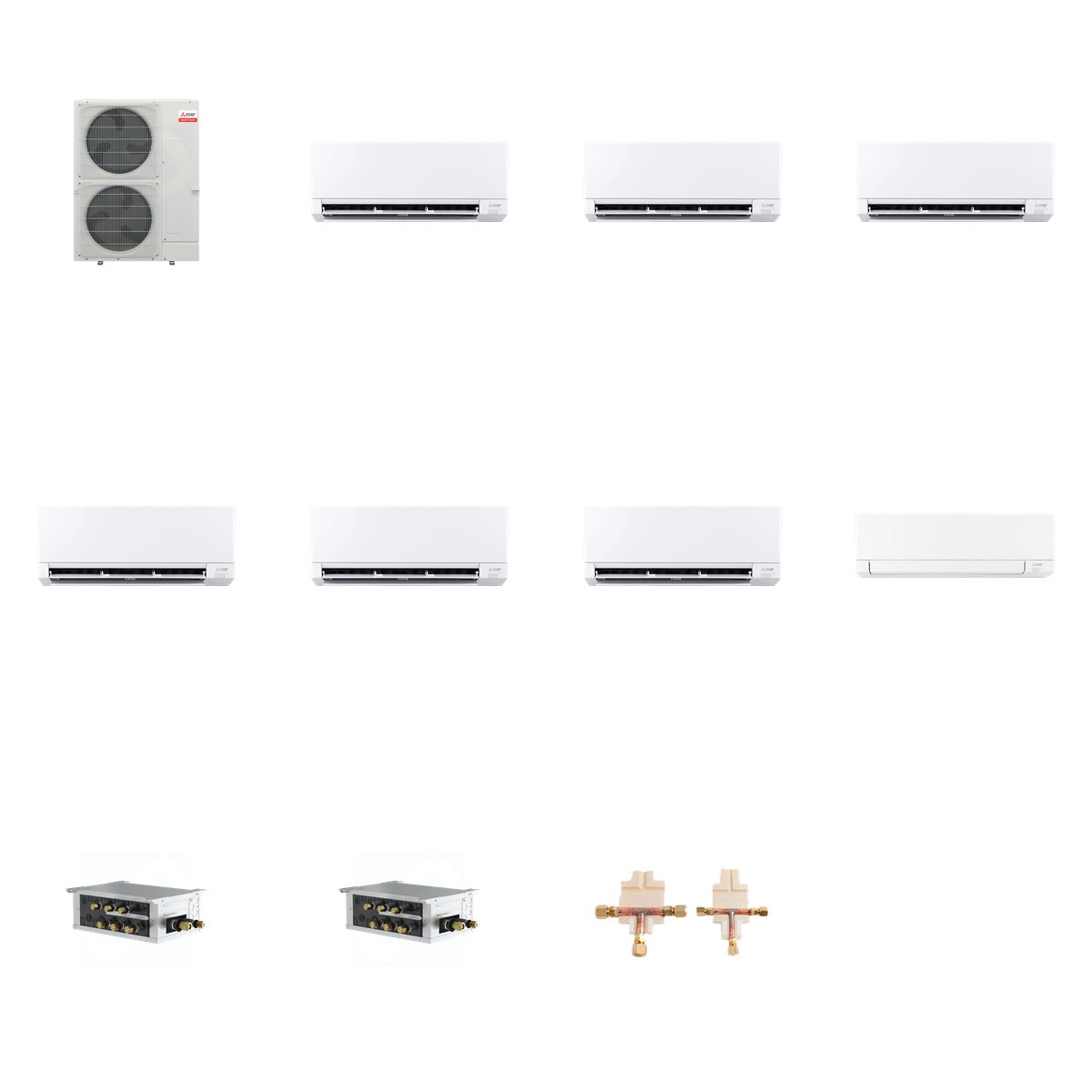

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x5)
• MITSUBISHI ELECTRIC MSZ-GX12NL - R454B 12k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX18NL - R454B 18k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 400.1 lb (Mitsubishi 225 lb + Mitsubishi 110 lb + Mitsubishi 22 lb + Mitsubishi 28 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Outdoor Unit Capacity: 48,000 BTU
• Indoor Unit Capacities: 6,000 BTU, 12,000 BTU, 18,000 BTU
• Refrigerant Type: R454B
• SEER2 Ratings: Up to 28.4
• HSPF2 Ratings: Up to 11
• Voltage: 208/230 Volts
• Dimensions (Outdoor Unit): 41-11/32 W x 13 D x 52-11/16 H
• Dimensions (Indoor Units): Varies by model

Use & Compatibility

This bundle is ideal for multi-zone HVAC systems, providing efficient heating and cooling across various indoor spaces. The outdoor heat pump unit is compatible with M-Series and City Multi indoor units, while the branch boxes and distribution kit ensure optimal refrigerant flow and temperature control. Perfect for both residential and commercial applications, this setup guarantees comfort and efficiency throughout the year.
