Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+6K+6K+12K+12K+12K

Description

This comprehensive HVAC bundle is designed to provide efficient heating and cooling solutions for both residential and commercial applications. Featuring a powerful Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit, this bundle supports multiple indoor zones, making it ideal for homes or offices that require tailored climate control. Complementing the outdoor unit are three wall-mounted air handlers (MSZ-GX06NL and MSZ-GX12NL) that deliver exceptional performance and energy efficiency. Additionally, the bundle includes essential branch boxes (PAC-LMA50BC and PAC-LMA30BC) for optimal refrigerant distribution, along with a branch pipe distribution kit (MSDD-50AR2-E) to ensure seamless installation and operation. Together, these components create a robust and versatile HVAC system that meets diverse climate control needs.

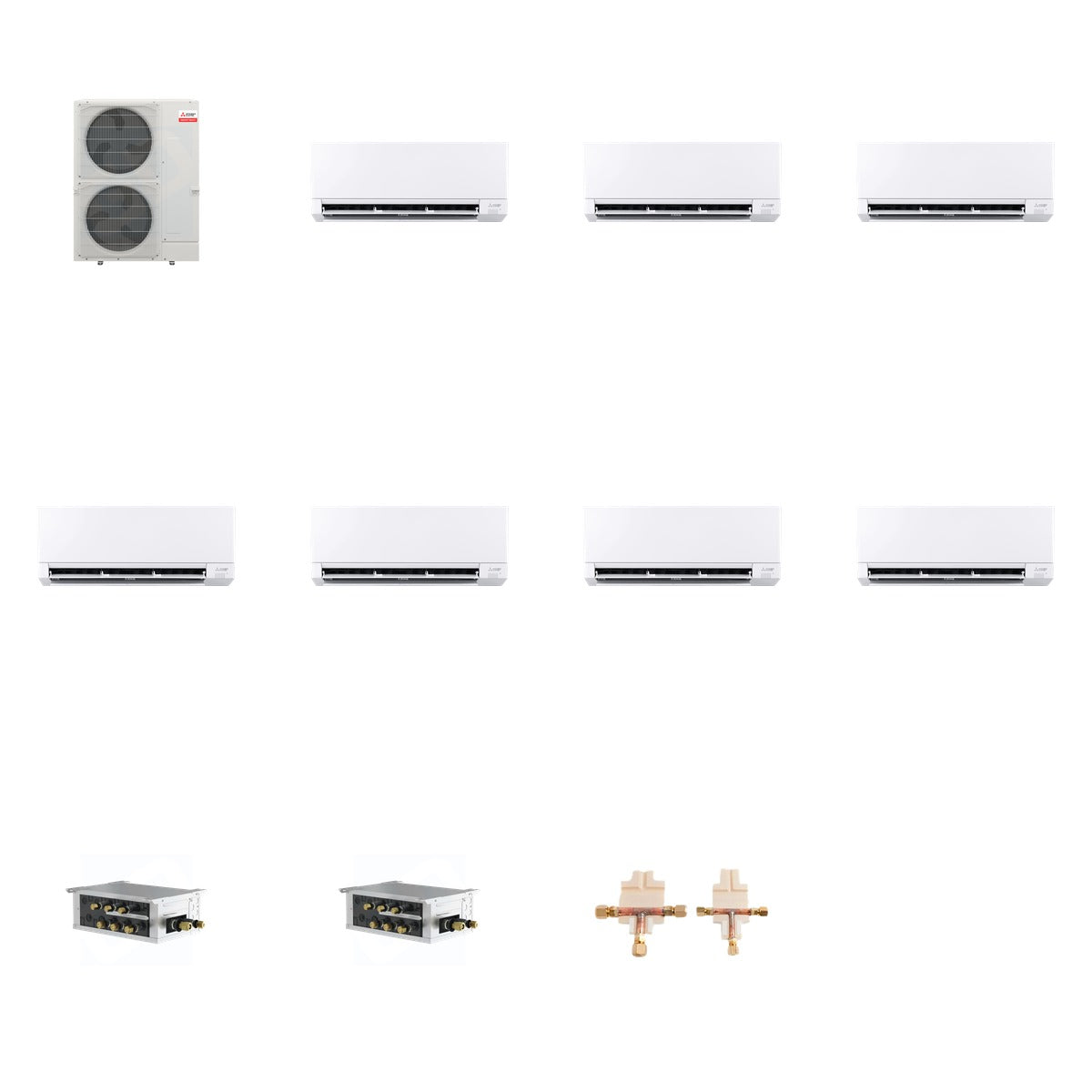

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - Mitsubishi Electric MSZ-GX06NL R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x4)
• MITSUBISHI ELECTRIC MSZ-GX12NL - Mitsubishi Electric MSZ-GX12NL R454B 12k BTU Heat Pump Wall Mount Air Handler (Qty x3)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 394.1 lb (Mitsubishi 225 lb + Mitsubishi 88 lb + Mitsubishi 66 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: Up to 42,000 BTU/h (MXZ-SM48NL)
• Heating Capacity: Up to 48,000 BTU/h (MXZ-SM48NL)
• SEER2 Rating: Up to 28.4 (MSZ-GX series)
• HSPF2 Rating: Up to 11 (MSZ-GX series)
• Refrigerant Type: R454B
• Voltage: 208/230 Volts
• Dimensions: MXZ-SM48NL - 41-11/32 W x 13 D x 52-11/16 H
• Weight: MXZ-SM48NL - 120 lbs; MSZ-GX06NL - 27 lbs; MSZ-GX12NL - 23 lbs

Use & Compatibility

This bundle is intended for use in multi-zone HVAC systems, providing efficient heating and cooling for various indoor spaces. The outdoor heat pump unit is compatible with M-Series and City Multi indoor units, allowing for flexible configurations. The included wall-mounted air handlers are designed for single or multi-zone setups, while the branch boxes and distribution kit ensure optimal refrigerant flow and temperature control across all connected units.
