Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+9K+9K+9K+9K+9K

Description

This comprehensive bundle features essential components for creating a highly efficient multi-zone HVAC system. The Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit serves as the powerhouse, providing robust heating and cooling capabilities for up to eight zones. Complementing this unit are the MSZ-FX06NL and MSZ-FX09NL wall-mounted air handlers, which deliver exceptional comfort and advanced filtration in individual rooms. The PAC-LMA50BC and PAC-LMA30BC branch boxes ensure optimal refrigerant distribution, while the MSDD-50AR2-E branch pipe distribution kit facilitates seamless connections between the outdoor unit and indoor units. Together, these products create a cohesive and efficient climate control solution suitable for both residential and commercial applications.

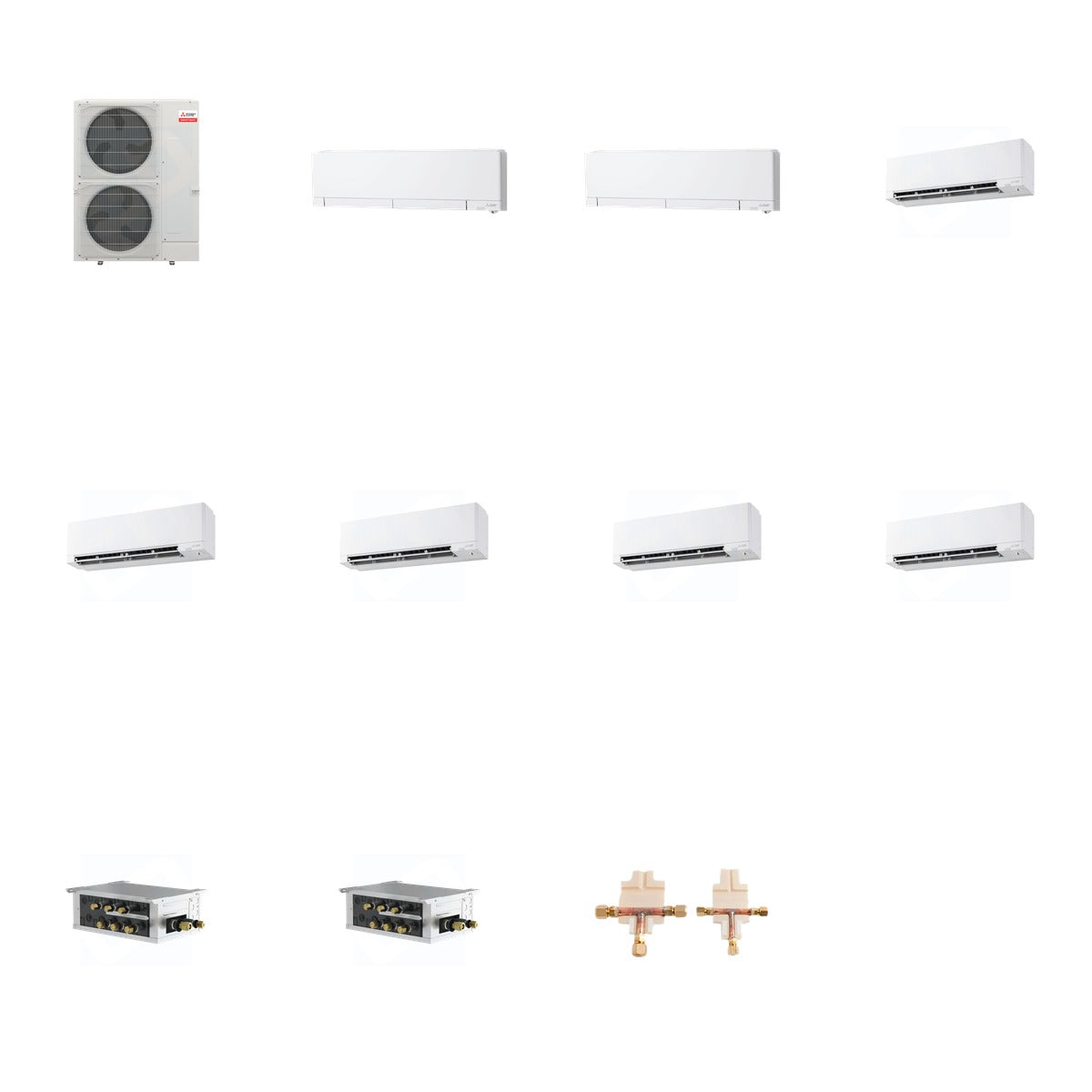

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x5)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 480.1 lb (Mitsubishi 225 lb + Mitsubishi 58 lb + Mitsubishi 182 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM48NL: 48,000 BTU, R454B refrigerant, SEER2: 21.50, Heating capacity: 48,000 BTU
• MSZ-FX06NL: 6,000 BTU, R454B refrigerant, SEER2: Up to 35, Heating capacity: 9,000 BTU
• MSZ-FX09NL: 9,000 BTU, R454B refrigerant, SEER2: Up to 35, Heating capacity: 12,000 BTU
• PAC-LMA50BC: 5 ports, 208/230V, 60Hz, supports up to 5 indoor units
• PAC-LMA30BC: 3 ports, 208/230V, 60Hz, connects up to 3 indoor units
• MSDD-50AR2-E: Flare connection, Oxygen-Free Copper, compatible with R-410A/R-454B

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, making it ideal for both residential and commercial applications. The outdoor heat pump unit is compatible with M-Series and City Multi indoor units, while the branch boxes and distribution kit ensure efficient refrigerant flow and temperature control across multiple zones.
