Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+6K+9K+9K+9K+15K

Description

This comprehensive HVAC bundle is designed to provide efficient heating and cooling for both residential and commercial spaces. Featuring the Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit, this system supports multiple indoor units, making it ideal for multi-zone applications. The included wall-mounted air handlers (MSZ-FX06NL, MSZ-FX09NL, and MSZ-FX15NL) deliver exceptional performance with advanced filtration and smart technology. Additionally, the PAC-LMA50BC and PAC-LMA30BC branch boxes ensure optimal refrigerant flow, while the MSDD-50AR2-E branch pipe distribution kit enhances installation efficiency. Together, these components create a powerful, flexible, and energy-efficient climate control solution.

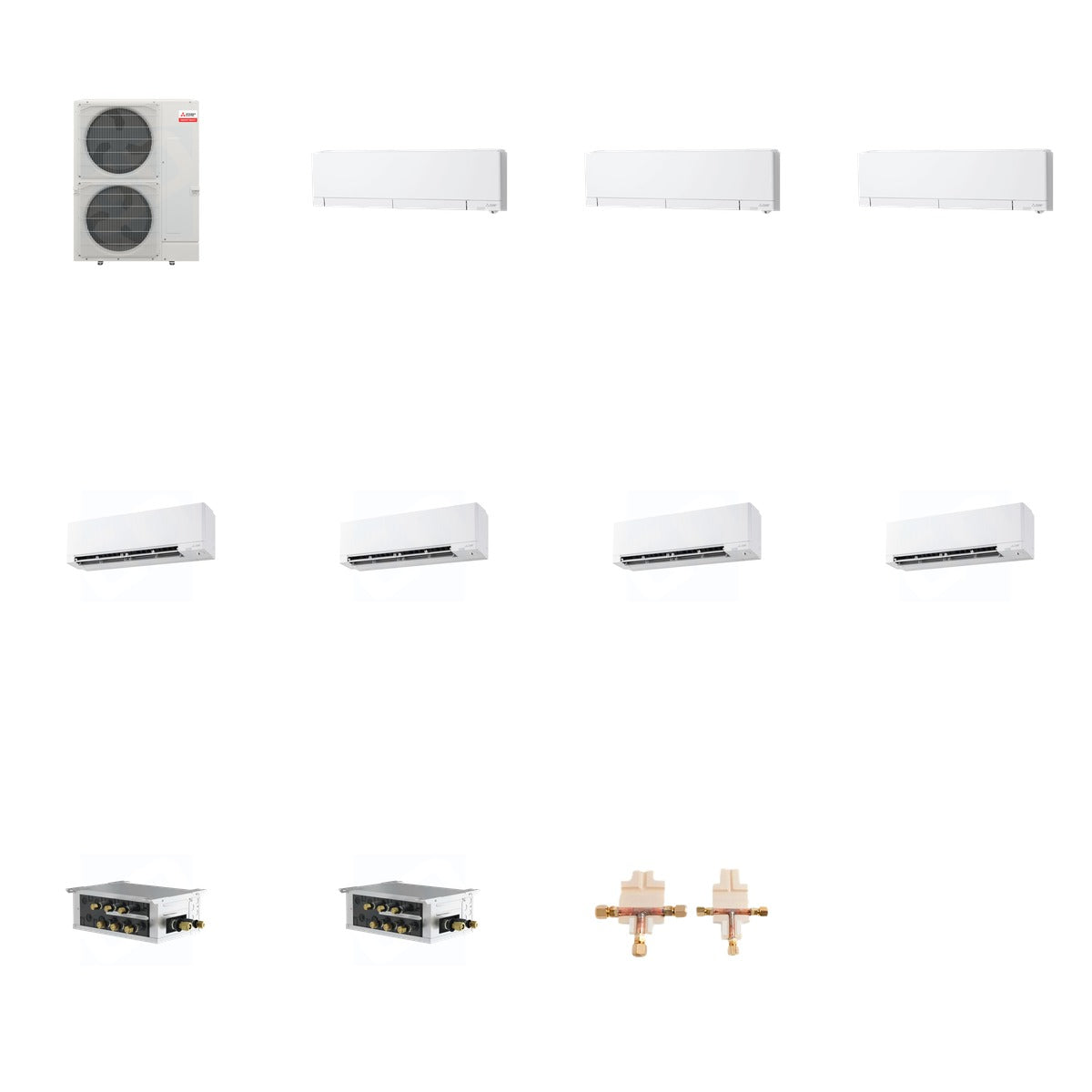

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-FX15NL - Mitsubishi Electric MSZ-FX15NL FX-Series Wall Mounted Unit 15k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 472.7 lb (Mitsubishi 225 lb + Mitsubishi 87 lb + Mitsubishi 109.2 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM48NL: 48,000 BTU, R454B refrigerant, 8 zones, SEER2 up to 21.50
• MSZ-FX06NL: 6,000 BTU, R454B refrigerant, SEER2 up to 35, Wi-Fi enabled
• MSZ-FX09NL: 9,000 BTU, R454B refrigerant, SEER2 up to 35, Wi-Fi enabled
• MSZ-FX15NL: 15,000 BTU, R454B refrigerant, SEER2 up to 20.0
• PAC-LMA50BC: 5 ports, 208/230V, electronic LEVs
• PAC-LMA30BC: 3 ports, 208/230V, ensures balanced refrigerant flow
• MSDD-50AR2-E: Flare connection, oxygen-free copper, compatible with R-410A/R-454B

Use & Compatibility

This bundle is intended for use in multi-zone heating and cooling applications, making it suitable for both residential and commercial systems. The outdoor heat pump unit is compatible with various indoor units, allowing for flexible configurations. The branch boxes and distribution kit enhance system efficiency and ensure optimal refrigerant flow, making installation and operation seamless.
