Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+6K+9K+9K+9K+12K

Description

This comprehensive HVAC bundle is designed for efficient heating and cooling in multi-zone environments. Featuring a powerful Mitsubishi Electric MXZ-SM48NL outdoor heat pump unit that connects to multiple indoor units, this bundle includes three wall-mounted air handlers (MSZ-FX06NL, MSZ-FX09NL, and MSZ-FX12NL) for tailored climate control. The included branch boxes (PAC-LMA50BC and PAC-LMA30BC) facilitate optimal refrigerant flow, while the MSDD-50AR2-E distribution kit ensures balanced performance across all connected units. Together, these components create a versatile and energy-efficient heating and cooling solution suitable for both residential and commercial applications.

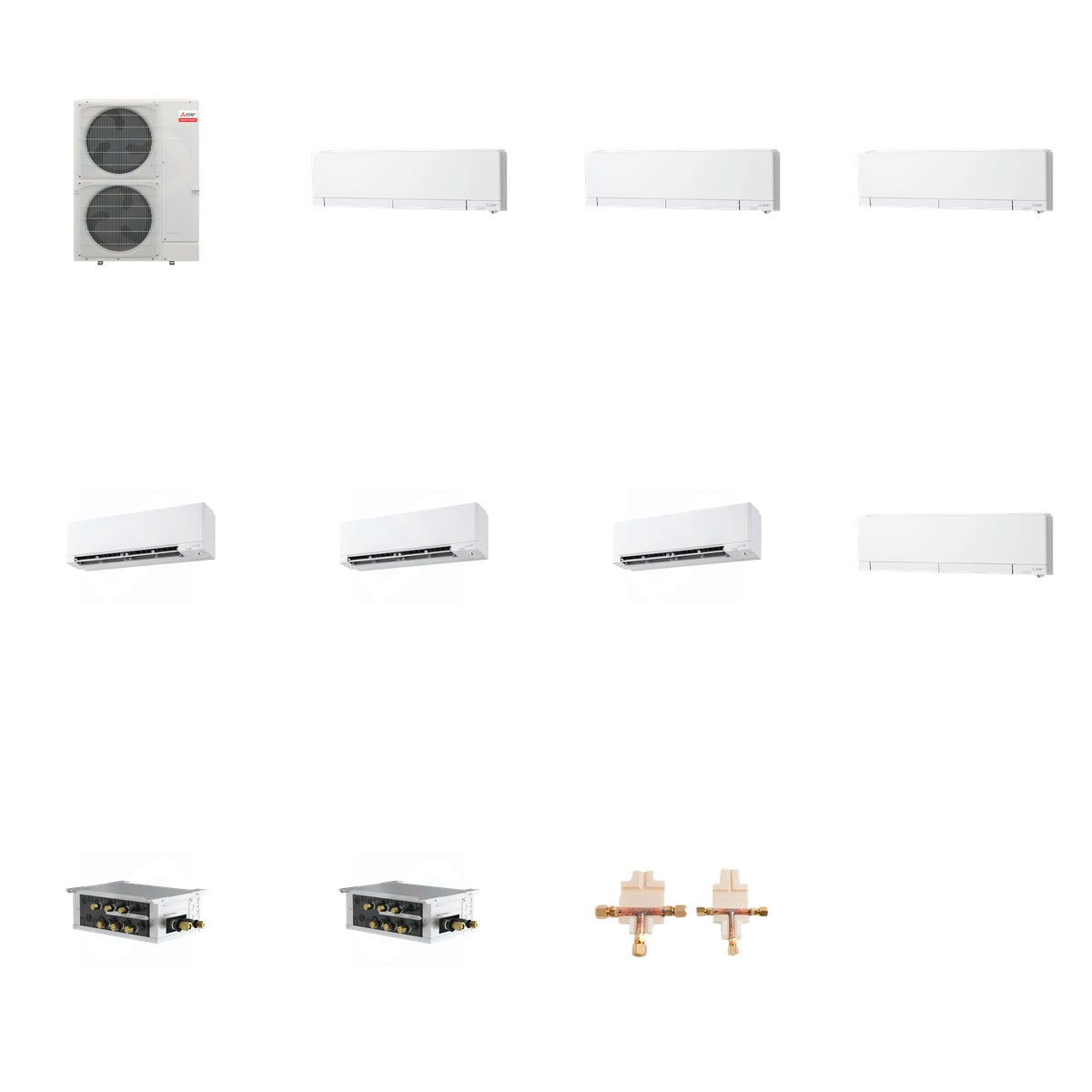

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-FX12NL - Mitsubishi Electric MSZ-FX12NL FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 472.7 lb (Mitsubishi 225 lb + Mitsubishi 87 lb + Mitsubishi 109.2 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM48NL: 48,000 BTU, R454B refrigerant, 8 zones (12 with branch box), SEER2 up to 21.50
• MSZ-FX06NL: 6,000 BTU, R454B refrigerant, SEER2 up to 35, suitable for rooms up to 250 sq ft
• MSZ-FX09NL: 9,000 BTU, R454B refrigerant, SEER2 up to 35, suitable for rooms up to 350 sq ft
• MSZ-FX12NL: 12,000 BTU, R454B refrigerant, SEER2 up to 35, suitable for rooms up to 450 sq ft
• PAC-LMA50BC: 5 ports, 208/230V, electronic LEVs for refrigerant flow management
• PAC-LMA30BC: 3 ports, 208/230V, ensures balanced refrigerant flow
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B, high-quality copper construction

Use & Compatibility

This bundle is ideal for both residential and commercial HVAC systems, providing efficient heating and cooling solutions across multiple zones. The outdoor unit is compatible with various Mitsubishi Electric indoor units, allowing for flexible configurations to meet specific space requirements.
