Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+6K+6K+9K+9K+18K

Description

This comprehensive HVAC bundle features a selection of high-performance Mitsubishi Electric products designed for optimal heating and cooling in multi-zone environments. The MXZ-SM48NL outdoor heat pump unit serves as the backbone, supporting up to eight indoor units, while the MSZ-FX series air handlers (6k, 9k, 18k BTU) provide efficient climate control for individual rooms. Additionally, the PAC-LMA branch boxes facilitate refrigerant distribution, ensuring balanced performance across all zones. This bundle is ideal for both residential and commercial applications, offering flexibility, energy efficiency, and advanced features like Wi-Fi control and multi-stage filtration.

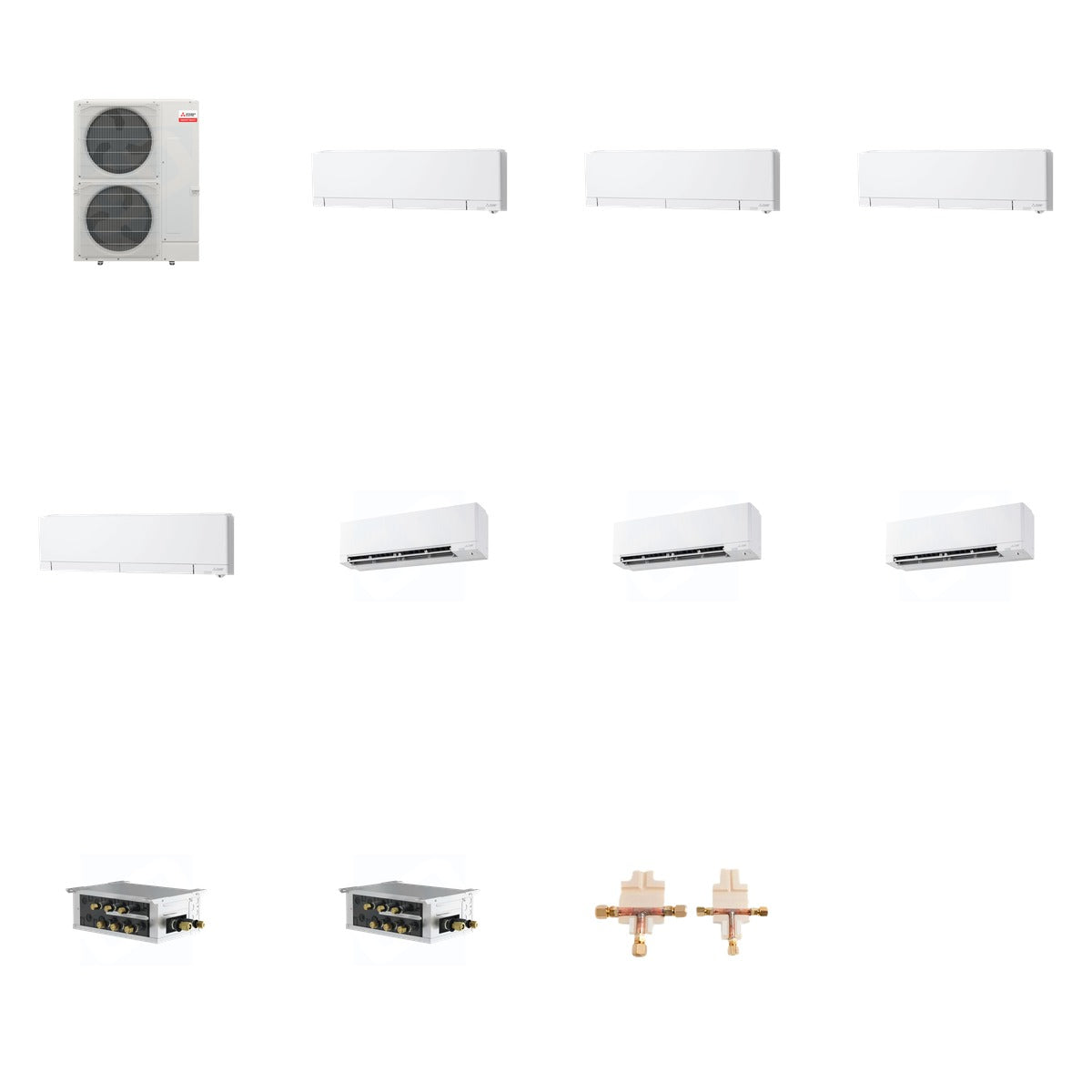

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x4)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-FX18NL - Mitsubishi Electric MSZ-FX18NL FX-Series Wall Mounted Unit 18k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 465.3 lb (Mitsubishi 225 lb + Mitsubishi 116 lb + Mitsubishi 72.8 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM48NL: 48,000 BTU, R454B refrigerant, cooling capacity 42,000 BTU, heating capacity 48,000 BTU, SEER2 up to 21.50
• MSZ-FX06NL: 6,000 BTU, R454B refrigerant, heating capacity 9,000 BTU, SEER2 up to 35, Wi-Fi enabled
• MSZ-FX09NL: 9,000 BTU, R454B refrigerant, heating capacity 12,000 BTU, SEER2 up to 35, Wi-Fi enabled
• MSZ-FX18NL: 18,000 BTU, R454B refrigerant, heating capacity 17,000 BTU, SEER up to 25.5, Wi-Fi enabled
• PAC-LMA50BC: 5 ports, compatible with MXZ model, 208/230V, 60Hz
• PAC-LMA30BC: 3 ports, compatible with R454B refrigerant, 208/230V, 60Hz
• MSDD-50AR2-E: Flare connection, compatible with R410A/R454B, oxygen-free copper construction

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, making it suitable for both residential and commercial applications. The outdoor heat pump unit connects seamlessly with the indoor air handlers, while the branch boxes and distribution kit ensure efficient refrigerant flow and temperature control across multiple zones.
