Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+6K+6K+9K+9K+15K

Description

This comprehensive HVAC bundle from Mitsubishi Electric is designed to provide efficient heating and cooling solutions for both residential and commercial applications. Featuring a powerful outdoor heat pump unit and multiple wall-mounted air handlers, this set is perfect for multi-zone installations. The included branch boxes facilitate optimal refrigerant distribution, ensuring each indoor unit operates at peak performance. With advanced features such as built-in Wi-Fi, quiet operation, and high SEER ratings, this bundle delivers comfort and convenience while maintaining energy efficiency.

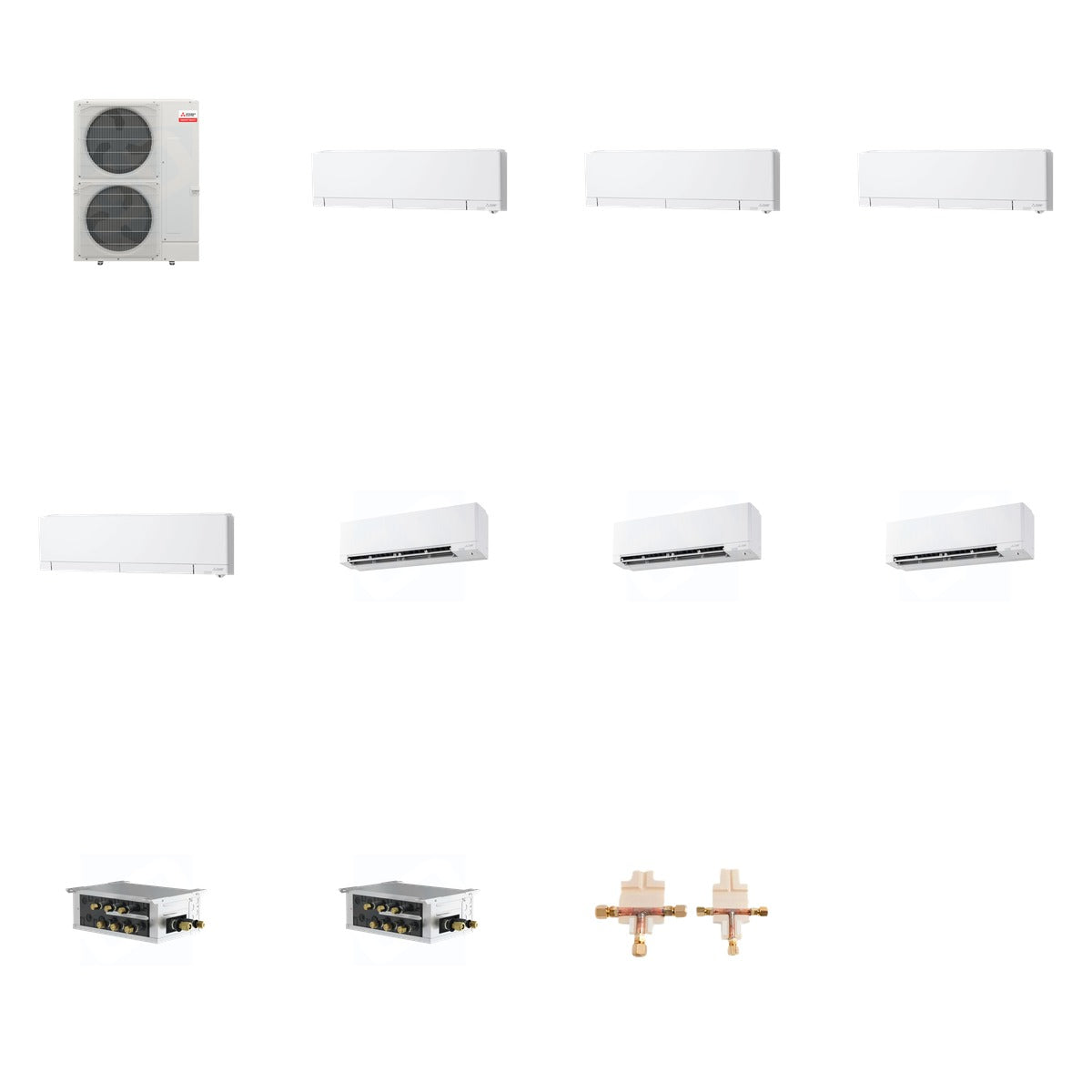

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x4)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-FX15NL - Mitsubishi Electric MSZ-FX15NL FX-Series Wall Mounted Unit 15k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 465.3 lb (Mitsubishi 225 lb + Mitsubishi 116 lb + Mitsubishi 72.8 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM48NL: 48,000 BTU, R454B refrigerant, 21.50 SEER2, 42,000 BTU cooling capacity, 48,000 BTU heating capacity
• MSZ-FX06NL: 6,000 BTU, R454B refrigerant, up to 35 SEER2, 9,000 BTU heating capacity
• MSZ-FX09NL: 9,000 BTU, R454B refrigerant, up to 20 SEER2, 12,000 BTU heating capacity
• MSZ-FX15NL: 15,000 BTU, R454B refrigerant, up to 20 SEER2, 18,000 BTU heating capacity
• PAC-LMA50BC: 5 ports, 208/230V, compatible with MXZ models
• PAC-LMA30BC: 3 ports, 208/230V, compatible with R454B refrigerant
• MSDD-50AR2-E: Oxygen-free copper, compatible with R-410A/R-454B, flare connection

Use & Compatibility

This bundle is ideal for multi-zone heating and cooling applications, providing flexibility and efficiency for residential or commercial spaces. The outdoor unit connects to multiple indoor air handlers, while the branch boxes ensure balanced refrigerant flow. Compatible with Mitsubishi Electric's M-Series and City Multi systems, this setup is perfect for optimizing climate control across various room sizes.
