Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+6K+6K+9K+12K+12K

Description

This comprehensive bundle features a selection of high-performance Mitsubishi Electric HVAC components designed to create an efficient and versatile multi-zone heating and cooling system. The MXZ-SM48NL outdoor heat pump unit serves as the backbone, supporting up to twelve indoor units for maximum coverage. Accompanying this are four wall-mounted air handlers (MSZ-FX06NL, MSZ-FX09NL, and MSZ-FX12NL) that provide tailored comfort in various room sizes. Additionally, the PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate optimal refrigerant distribution, while the MSDD-50AR2-E branch pipe distribution kit ensures a seamless connection between components. Together, these products deliver a reliable and energy-efficient climate control solution suitable for both residential and commercial applications.

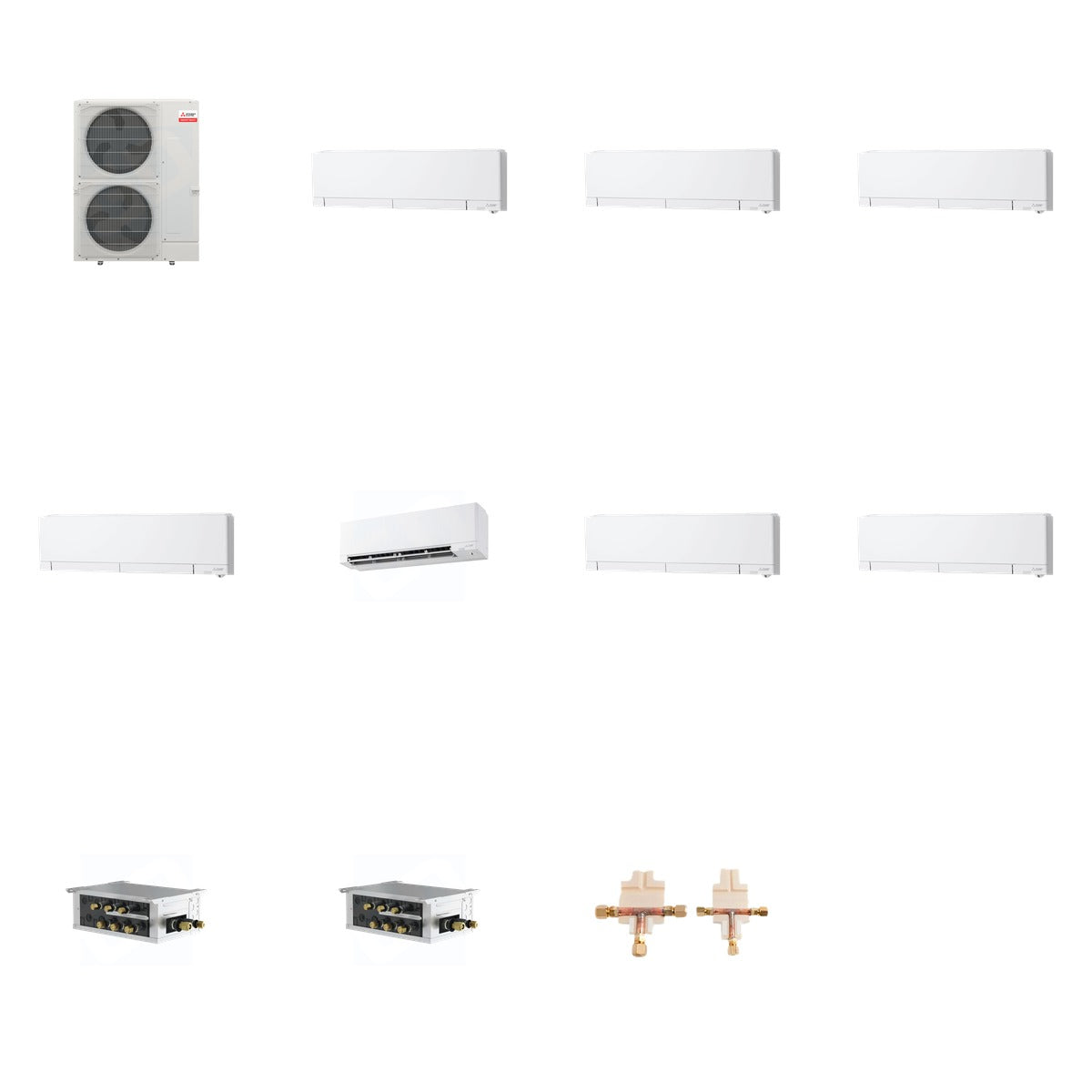

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x4)
• MITSUBISHI ELECTRIC MSZ-FX09NL - Mitsubishi Electric MSZ-FX09NL FX-Series Wall Mounted Unit 9k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX12NL - Mitsubishi Electric MSZ-FX12NL FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 465.3 lb (Mitsubishi 225 lb + Mitsubishi 116 lb + Mitsubishi 36.4 lb + Mitsubishi 72.8 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM48NL: 48,000 BTU, R454B refrigerant, 8-12 zones, SEER2: 21.50
• MSZ-FX06NL: 6,000 BTU, SEER2: Up to 35, Wi-Fi enabled, 20 dB minimum sound level
• MSZ-FX09NL: 9,000 BTU, SEER2: Up to 35, Wi-Fi enabled, 20 dB minimum sound level
• MSZ-FX12NL: 12,000 BTU, SEER2: Up to 35, Wi-Fi enabled, 20 dB minimum sound level
• PAC-LMA50BC: 5 ports, compatible with MXZ model, 208/230 Volts
• PAC-LMA30BC: 3 ports, compatible with R454B refrigerant, 208/230 Volts
• MSDD-50AR2-E: Flare connection, oxygen-free copper, compatible with R-410A/R-454B

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, providing efficient heating and cooling across various indoor spaces. The outdoor unit connects seamlessly with the included wall-mounted air handlers, while the branch boxes and distribution kit ensure optimal refrigerant flow and temperature control. Ideal for both residential and commercial applications, this system enhances comfort and energy efficiency in any environment.
