Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+6K+6K+6K+6K+18K

Description

This comprehensive HVAC bundle features essential components designed for efficient multi-zone climate control. The Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit serves as the backbone, capable of connecting multiple indoor units for tailored heating and cooling solutions. Complementing this are the MSZ-FX06NL and MSZ-FX18NL wall-mounted air handlers, which provide flexible installation options and advanced features like Wi-Fi control and superior air filtration. To optimize refrigerant flow, the PAC-LMA50BC and PAC-LMA30BC branch boxes ensure seamless distribution to indoor units, while the MSDD-50AR2-E branch pipe kit guarantees efficient refrigerant management. This bundle is ideal for both residential and commercial applications, ensuring comfort and efficiency across various spaces.

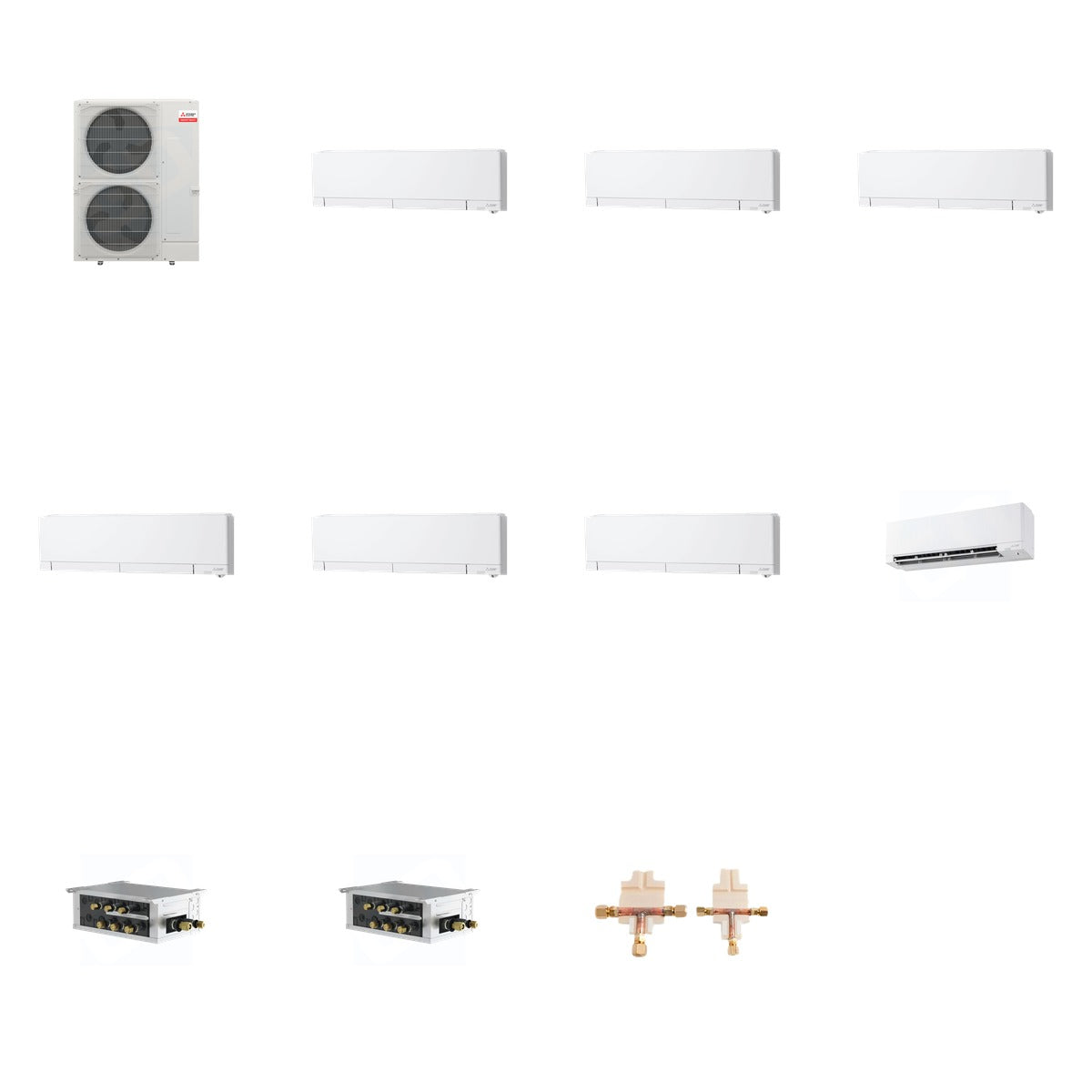

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x6)
• MITSUBISHI ELECTRIC MSZ-FX18NL - Mitsubishi Electric MSZ-FX18NL FX-Series Wall Mounted Unit 18k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 450.5 lb (Mitsubishi 225 lb + Mitsubishi 174 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM48NL: 48,000 BTU, R454B refrigerant, SEER2: 21.50, up to 2000 sq ft coverage
• MSZ-FX06NL: 6,000 BTU, R454B refrigerant, SEER2: up to 35, up to 250 sq ft coverage
• MSZ-FX18NL: 18,000 BTU, R454B refrigerant, SEER: 25.5, up to 750 sq ft coverage
• PAC-LMA50BC: 5 ports, 208/230V, electronic LEVs for refrigerant management
• PAC-LMA30BC: 3 ports, 208/230V, ensures balanced refrigerant flow
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B, oxygen-free copper construction

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, allowing for customized climate control in various indoor environments. The outdoor heat pump unit connects seamlessly with the included wall-mounted air handlers, while the branch boxes and pipe distribution kit facilitate optimal refrigerant flow, ensuring efficient operation across all connected units.
