Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+6K+6K+6K+6K+15K

Description

This comprehensive HVAC bundle features top-of-the-line Mitsubishi Electric products designed for optimal heating and cooling efficiency in multi-zone systems. The MXZ-SM48NL outdoor heat pump unit serves as the powerhouse, capable of supporting multiple indoor units, while the MSZ-FX06NL and MSZ-FX15NL wall-mounted air handlers provide versatile and efficient climate control for various room sizes. The PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate seamless refrigerant flow, ensuring balanced temperatures across connected units. Completing the bundle, the MSDD-50AR2-E branch pipe distribution kit ensures reliable refrigerant distribution, making this collection ideal for both residential and commercial applications.

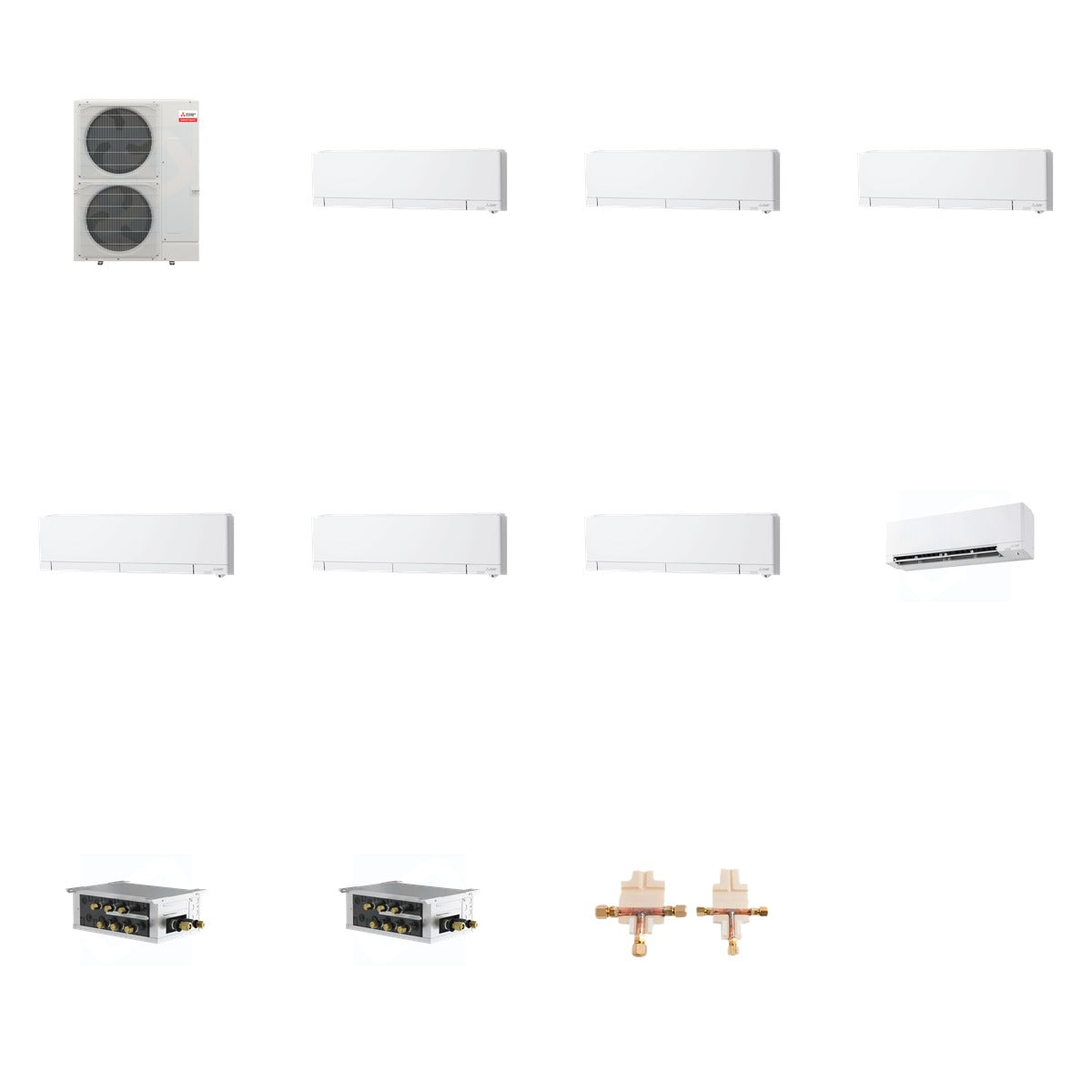

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x6)
• MITSUBISHI ELECTRIC MSZ-FX15NL - Mitsubishi Electric MSZ-FX15NL FX-Series Wall Mounted Unit 15k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 450.5 lb (Mitsubishi 225 lb + Mitsubishi 174 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM48NL: 48,000 BTU, SEER2: 21.50, R454B refrigerant, 8 zones
• MSZ-FX06NL: 6,000 BTU, SEER2: Up to 35, R454B refrigerant, 250 sq ft coverage
• MSZ-FX15NL: 15,000 BTU, SEER2: Up to 20.0, R454B refrigerant, 500 sq ft coverage
• PAC-LMA50BC: 5 ports, 208/230V, 60Hz
• PAC-LMA30BC: 3 ports, 208/230V, 60Hz
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B

Use & Compatibility

This bundle is designed for multi-zone heating and cooling applications, making it suitable for both residential and commercial environments. The included outdoor unit and air handlers work seamlessly together to provide efficient climate control, while the branch boxes and distribution kit ensure optimal refrigerant flow and temperature maintenance across all connected indoor units.
