Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+6K+6K+6K+12K+18K

Description

This comprehensive HVAC bundle includes essential components designed to optimize the performance of multi-zone mini-split systems. The Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit serves as the powerhouse, efficiently managing heating and cooling across multiple indoor units. Complementing this are the MSZ-FX06NL, MSZ-FX12NL, MSZ-FX18NL air handlers, providing versatile heating and cooling solutions for various room sizes. The PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate seamless refrigerant distribution, while the MSDD-50AR2-E branch pipe distribution kit ensures balanced flow and easy installation. Together, these products create a cohesive system that enhances comfort, efficiency, and control in residential and commercial spaces.

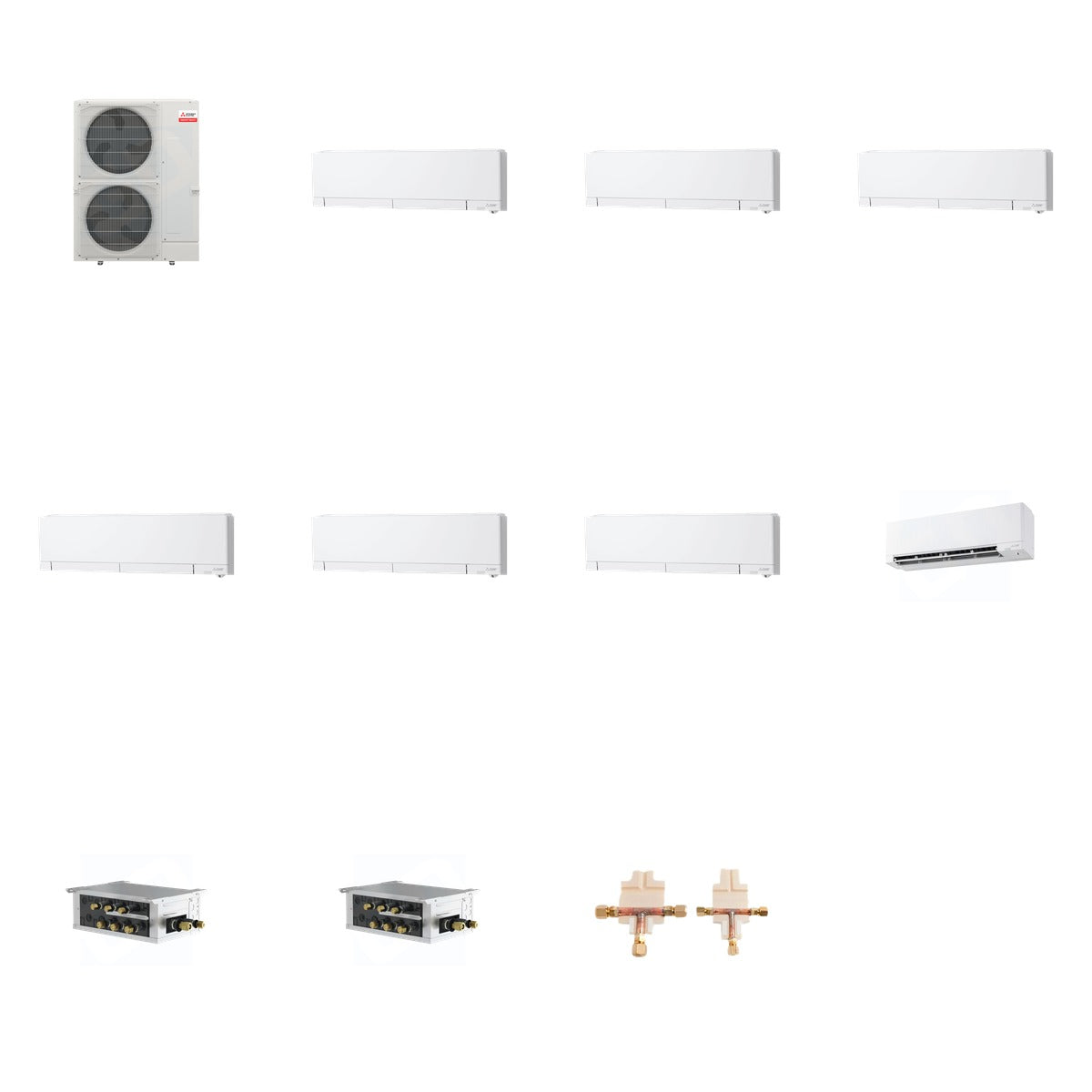

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x5)
• MITSUBISHI ELECTRIC MSZ-FX12NL - Mitsubishi Electric MSZ-FX12NL FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX18NL - Mitsubishi Electric MSZ-FX18NL FX-Series Wall Mounted Unit 18k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 457.9 lb (Mitsubishi 225 lb + Mitsubishi 145 lb + Mitsubishi 36.4 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM48NL: 48,000 BTU, R454B refrigerant, up to 12 zones, SEER2: 21.50
• MSZ-FX06NL: 6,000 BTU, R454B refrigerant, SEER2: Up to 35, Wi-Fi enabled
• MSZ-FX12NL: 12,000 BTU, R454B refrigerant, SEER2: Up to 35, Wi-Fi enabled
• MSZ-FX18NL: 18,000 BTU, R454B refrigerant, SEER2: 25.5, Wi-Fi enabled
• PAC-LMA50BC: 5 ports, 208/230V, 60Hz
• PAC-LMA30BC: 3 ports, 208/230V, 60Hz
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, providing efficient heating and cooling solutions for both residential and commercial applications. The outdoor heat pump unit connects seamlessly with the included indoor air handlers, while the branch boxes and distribution kit ensure optimal refrigerant flow and temperature control across multiple zones.
