Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 7-Zone Wall-Mounted Hyper Heat Mini Split Heat Pump System - 6K+6K+6K+6K+6K+12K+15K

Description

This comprehensive HVAC bundle features a selection of high-performance Mitsubishi Electric products designed to create an efficient multi-zone climate control system. The MXZ-SM48NL outdoor heat pump unit serves as the backbone, supporting up to eight indoor units, making it ideal for both residential and commercial applications. Complementing this are the MSZ-FX06NL, MSZ-FX12NL, and MSZ-FX15NL wall-mounted air handlers, which provide versatile heating and cooling options for various room sizes. The PAC-LMA50BC and PAC-LMA30BC branch boxes ensure optimal refrigerant distribution, while the MSDD-50AR2-E branch pipe kit enhances system performance by ensuring balanced refrigerant flow. Together, these components deliver reliable comfort and energy efficiency.

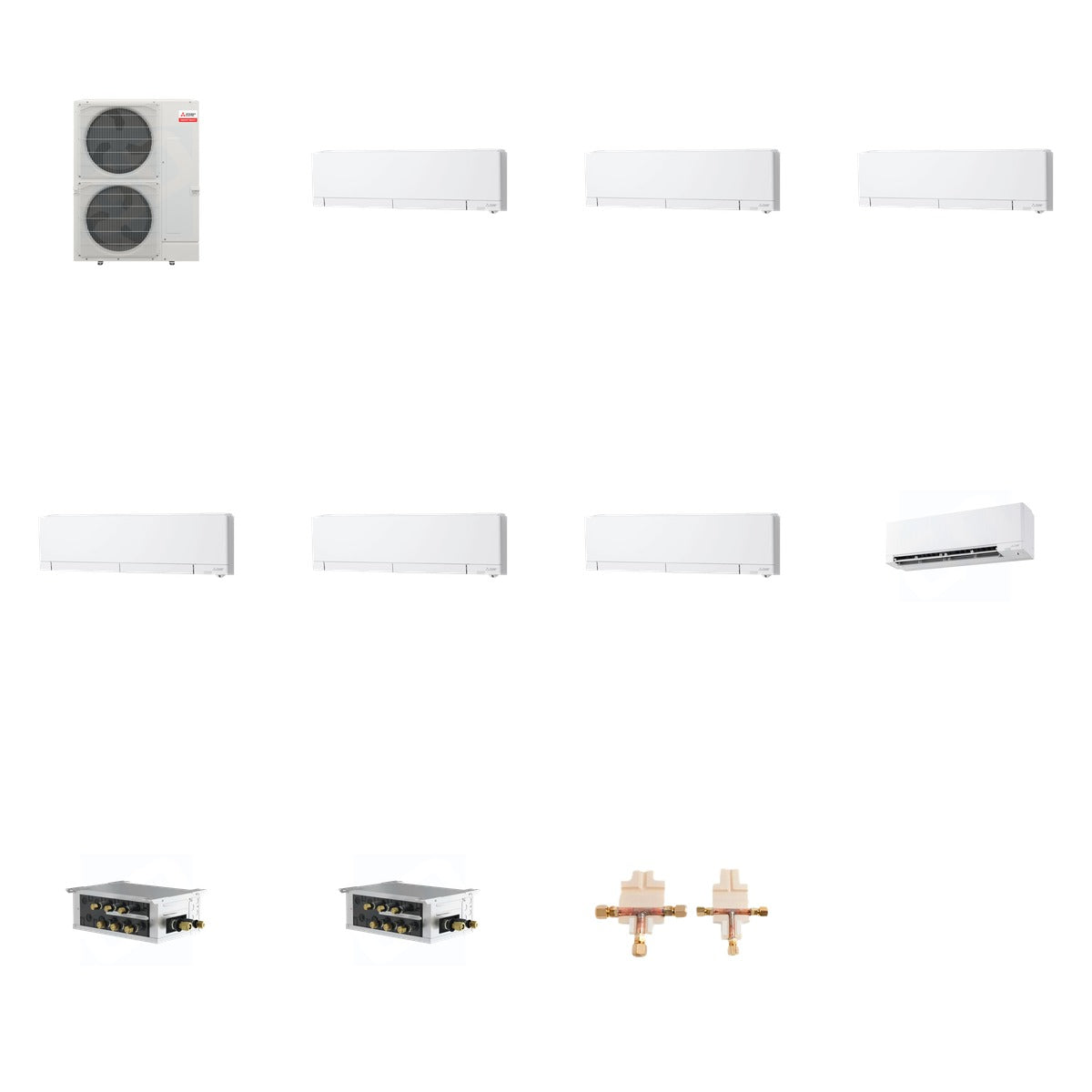

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX06NL - Mitsubishi Electric MSZ-FX06NL FX-Series Wall Mounted Unit 6k BTU Hyper Heat Air Handler (Qty x5)
• MITSUBISHI ELECTRIC MSZ-FX12NL - Mitsubishi Electric MSZ-FX12NL FX-Series Wall Mounted Unit 12k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-FX15NL - Mitsubishi Electric MSZ-FX15NL FX-Series Wall Mounted Unit 15k BTU Hyper Heat Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 457.9 lb (Mitsubishi 225 lb + Mitsubishi 145 lb + Mitsubishi 36.4 lb + Mitsubishi 36.4 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM48NL: 48,000 BTU, R454B refrigerant, 8 zones, SEER2 up to 21.50
• MSZ-FX06NL: 6,000 BTU, R454B refrigerant, SEER2 up to 35, operates in up to 250 sq ft
• MSZ-FX12NL: 12,000 BTU, R454B refrigerant, SEER2 up to 35, operates in up to 400 sq ft
• MSZ-FX15NL: 15,000 BTU, R454B refrigerant, SEER2 up to 20, operates in medium-to-large spaces
• PAC-LMA50BC: 5 ports, 208/230V, for up to 5 indoor units
• PAC-LMA30BC: 3 ports, 208/230V, for up to 3 indoor units
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B, oxygen-free copper construction

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, providing efficient heating and cooling for residential or commercial spaces. The components are compatible with Mitsubishi Electric's M-Series and City Multi systems, ensuring optimal performance and comfort across various environments.
