Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 7-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+9K+9K+9K+9K+9K

Description

This comprehensive HVAC bundle features essential components designed for optimal performance in multi-zone heating and cooling systems. The Mitsubishi Electric MXZ-SM48NL outdoor heat pump unit serves as the powerhouse, efficiently supporting up to eight indoor zones. Complementing this, the MLZ-KX06NL and MLZ-KX09NL ceiling cassette units provide versatile heating and cooling options for various room sizes, ensuring comfort in every corner of your space. The PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate seamless refrigerant distribution, while the MSDD-50AR2-E branch pipe kit guarantees balanced flow and efficient operation. Finally, the MLP-448WU and MLP-449WU grilles optimize airflow, enhancing system efficiency and performance. Together, these components create a cohesive and efficient HVAC solution for both residential and commercial applications.

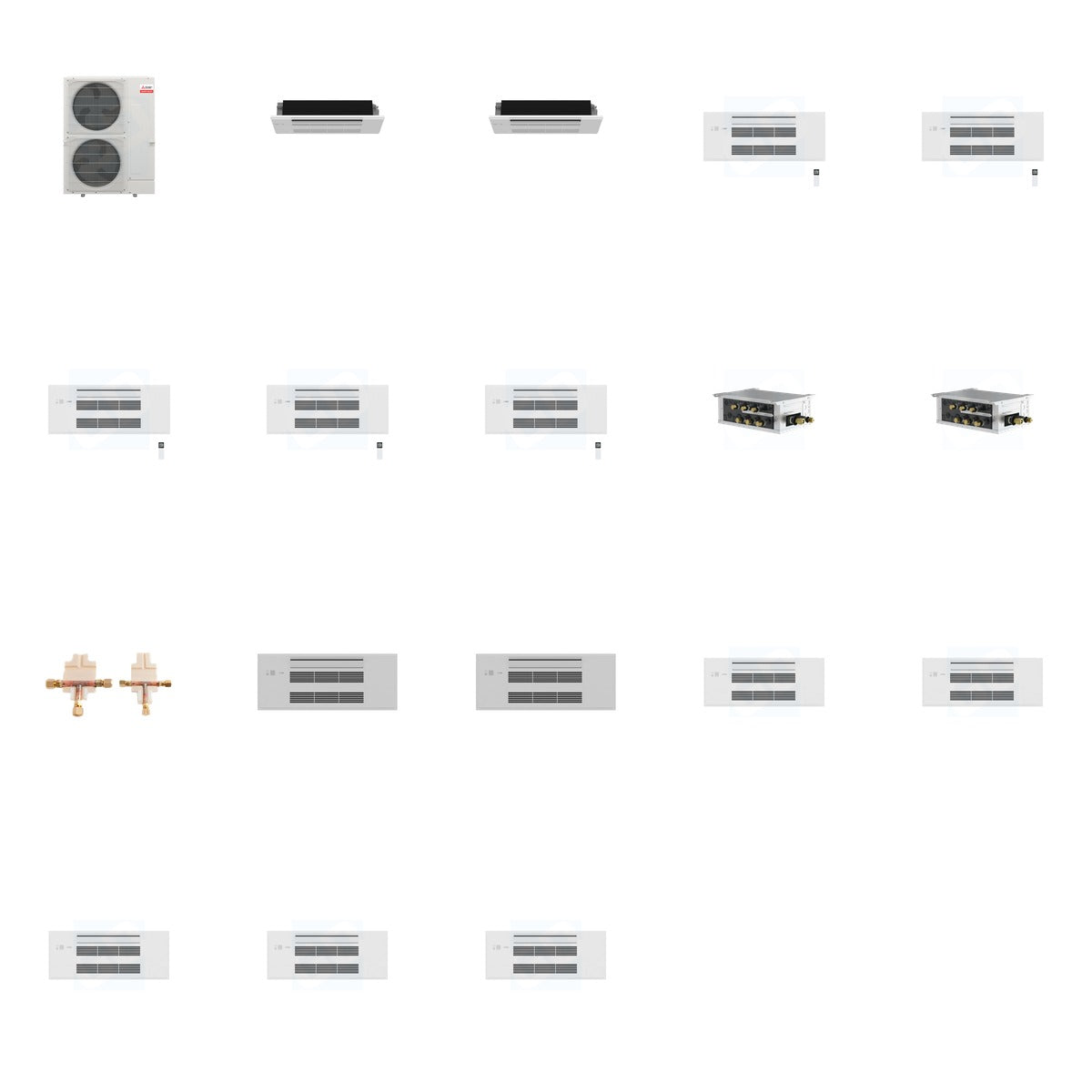

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x2)
• MITSUBISHI ELECTRIC MLZ-KX09NL - Mitsubishi Electric MLZ-KX09NL 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x5)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Mitsubishi Electric MLP-448WU - (Grille for MLZ-KY Series) (Qty x2)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x5)

Key Details

• Weight of Bundle: 388.8 lb (Mitsubishi 225 lb + Mitsubishi 68 lb + Mitsubishi 16.7 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 14 lb + Mitsubishi 50 lb)
• MXZ-SM48NL: 48,000 BTU, R454B refrigerant, SEER2: 21.50, Cooling/Heating capacity: Up to 2000 sq ft
• MLZ-KX06NL: 6,000 BTU, R454B refrigerant, Airflow: 152-198 CFM, Noise Level: 29-36 dB(A)
• MLZ-KX09NL: 9,000 BTU, R454B refrigerant, Airflow: 201-325 CFM, Noise Level: 26-38 dB(A)
• PAC-LMA50BC: 5 ports, 208/230V, 60Hz, Liquid Connection: 1/4 inch
• PAC-LMA30BC: 3 ports, 208/230V, 60Hz, Liquid Connection: 1/4 inch
• MSDD-50AR2-E: Flare connection, R-410A/R-454B compatible, Copper construction
• MLP-448WU: Dimensions: 16.5 x 38.5 x 4.25 inches, Weight: 7.9 lbs
• MLP-449WU: Designed for MLZ Series, Simple installation, Optimizes airflow

Use & Compatibility

This bundle is intended for use in multi-zone HVAC systems, providing efficient heating and cooling for residential and commercial spaces. The components are compatible with Mitsubishi Electric's M-Series and City Multi systems, ensuring optimal performance and comfort in diverse applications.
