Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 7-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+6K+9K+9K+9K+9K

Description

This comprehensive HVAC bundle is designed to provide efficient heating and cooling solutions for both residential and commercial spaces. Featuring the Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit, this bundle supports multiple indoor units, making it ideal for homes or businesses requiring precise climate control across various zones. The included one-way ceiling cassette indoor units (MLZ-KX06NL and MLZ-KX09NL) offer versatile installation options and Wi-Fi connectivity for smart control. Additionally, the branch boxes (PAC-LMA50BC and PAC-LMA30BC) ensure optimal refrigerant distribution, while the branch pipe distribution kit (MSDD-50AR2-E) enhances system performance. Completing the package are the essential grilles (MLP-448WU and MLP-449WU) that optimize airflow, ensuring your HVAC system operates at peak efficiency.

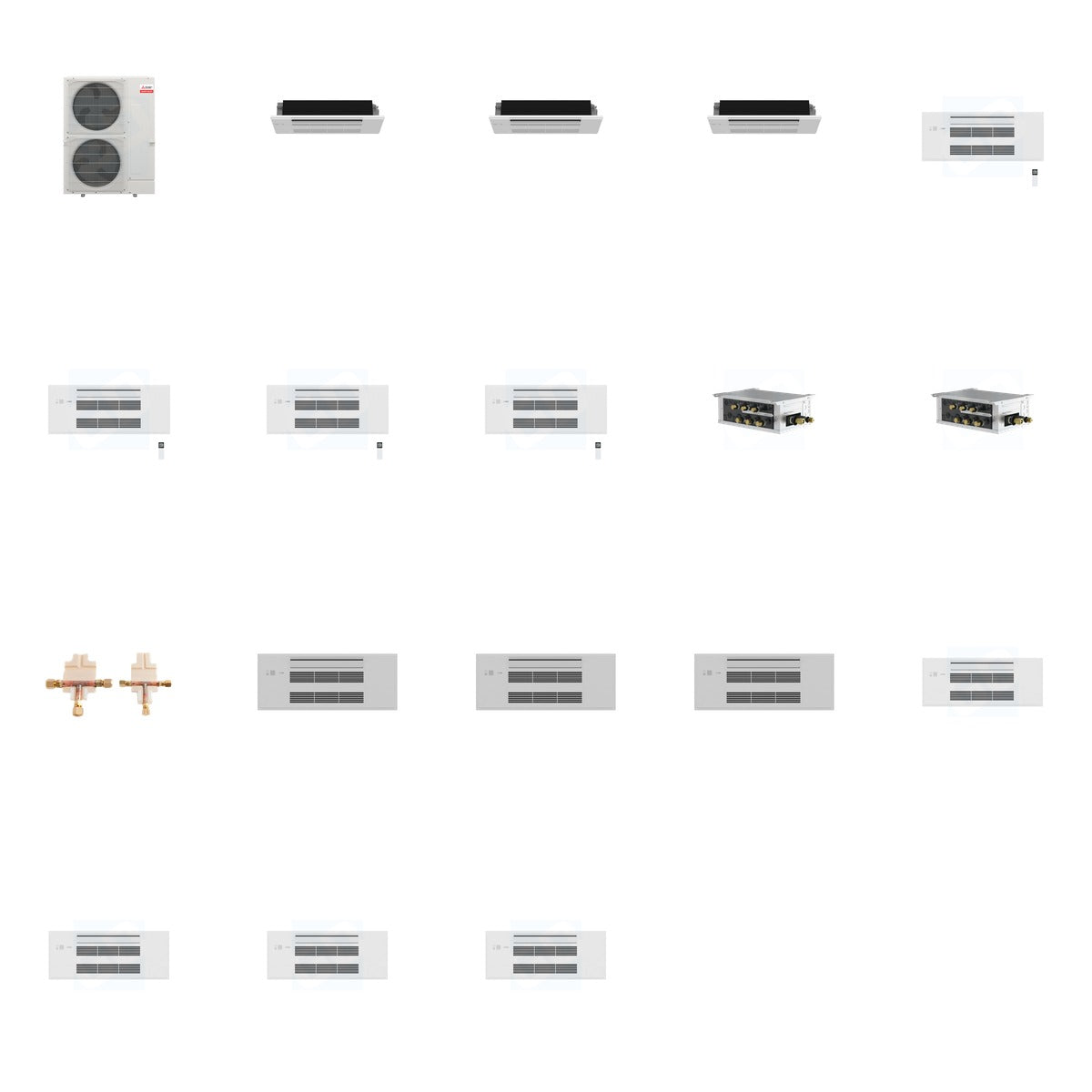

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x3)
• MITSUBISHI ELECTRIC MLZ-KX09NL - Mitsubishi Electric MLZ-KX09NL 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x4)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Mitsubishi Electric MLP-448WU - (Grille for MLZ-KY Series) (Qty x3)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x4)

Key Details

• Weight of Bundle: 416.4 lb (Mitsubishi 225 lb + Mitsubishi 102 lb + Mitsubishi 13.3 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 21 lb + Mitsubishi 40 lb)
• MXZ-SM48NL: 48,000 BTU, SEER2: 21.50, R454B refrigerant
• MLZ-KX06NL: 6,000 BTU, Heating Capacity: 7,200 BTU, Wi-Fi enabled
• MLZ-KX09NL: 9,000 BTU, Heating Capacity: 12,000 BTU, Wi-Fi enabled
• PAC-LMA50BC: 5 ports, Voltage: 208/230V, Phase: 1
• PAC-LMA30BC: 3 ports, Voltage: 208/230V, Phase: 1
• MSDD-50AR2-E: Flare connection, Oxygen-Free Copper, compatible with R-410A/R-454B
• MLP-448WU: Dimensions: 16.5 x 38.5 x 4.25 inches, Weight: 7.9 lbs
• MLP-449WU: Designed for MLZ Series, facilitates efficient air distribution

Use & Compatibility

This bundle is intended for use in multi-zone HVAC systems, providing both heating and cooling capabilities. The outdoor heat pump unit connects to multiple indoor units, making it suitable for various applications in residential and commercial settings. The included branch boxes and distribution kit ensure balanced refrigerant flow, while the grilles optimize air circulation for enhanced system performance.
