Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 7-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+6K+9K+9K+12K+12K

Description

This comprehensive bundle features essential components for creating an efficient multi-zone HVAC system. The Mitsubishi Electric MXZ-SM48NL outdoor heat pump unit serves as the powerhouse, capable of connecting to multiple indoor units for optimal climate control in diverse settings. Complementing this are the one-way ceiling cassette indoor units (MLZ-KX06NL, MLZ-KX09NL, and MLZ-KX12NL), which provide flexible heating and cooling solutions for various room sizes. The included branch boxes (PAC-LMA50BC and PAC-LMA30BC) ensure effective refrigerant distribution, while the MSDD-50AR2-E branch pipe kit guarantees seamless installation. Grilles (MLP-448WU and MLP-449WU) are also included to enhance airflow efficiency, making this bundle ideal for both residential and commercial applications.

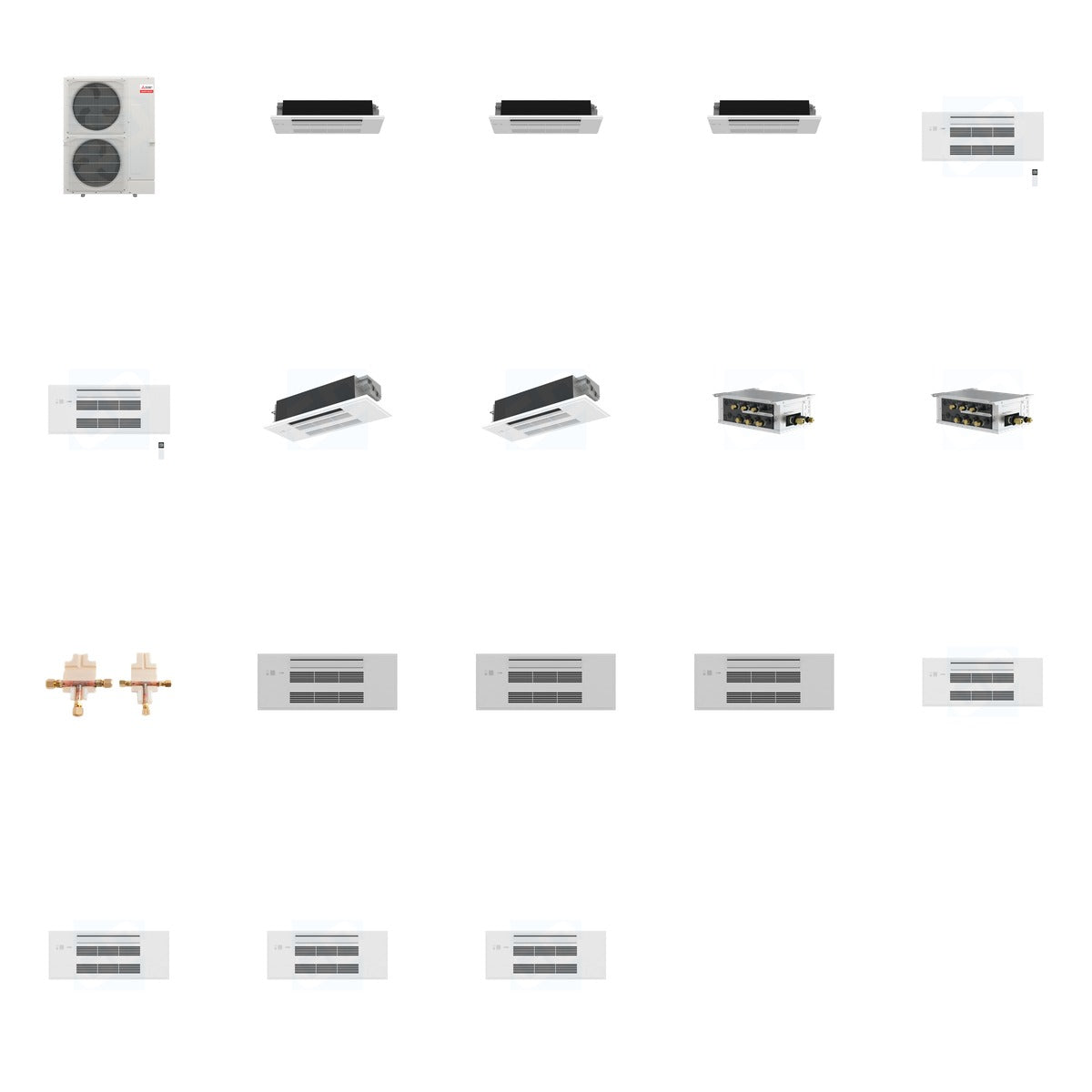

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x3)
• MITSUBISHI ELECTRIC MLZ-KX09NL - Mitsubishi Electric MLZ-KX09NL 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x2)
• MITSUBISHI ELECTRIC MLZ-KX12NL - Mitsubishi Electric MLZ-KX12NL 12k BTU One-Way Ceiling Cassette Indoor Unit (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Mitsubishi Electric MLP-448WU - (Grille for MLZ-KY Series) (Qty x3)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x4)

Key Details

• Weight of Bundle: 477.8 lb (Mitsubishi 225 lb + Mitsubishi 102 lb + Mitsubishi 6.7 lb + Mitsubishi 68 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 21 lb + Mitsubishi 40 lb)
• Outdoor Unit Capacity: 48,000 BTU
• Indoor Unit Capacities: 6,000 BTU, 9,000 BTU, 12,000 BTU
• Refrigerant Type: R-454B
• Voltage: 208/230 Volts
• Number of Zones: Up to 12 with branch box
• Airflow CFM: Up to 325 CFM (varies by unit)
• Dimensions: Varies by unit (see individual specifications)
• Wi-Fi Enabled: Yes (selected units)

Use & Compatibility

This bundle is designed for use in both residential and commercial HVAC systems, providing efficient heating and cooling across multiple zones. The outdoor heat pump is compatible with M- and P-Series indoor units, while the ceiling cassettes are suitable for installation in standard ceiling joists. The branch boxes and distribution kit facilitate optimal refrigerant flow, ensuring balanced performance across all connected indoor units.
