Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 7-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+6K+6K+9K+9K+18K

Description

The Mitsubishi Electric HVAC Bundle is the perfect solution for those looking to enhance their indoor climate control with a comprehensive multi-zone system. This bundle includes a powerful outdoor heat pump and multiple indoor units, designed to work seamlessly together for both heating and cooling applications. With a total capacity of 48,000 BTU from the outdoor unit and various indoor units ranging from 6,000 to 18,000 BTU, this system is ideal for residential and commercial spaces alike. The included branch boxes and distribution kit ensure optimal refrigerant flow, making installation and operation efficient and reliable. Whether you're retrofitting an existing space or designing a new one, this bundle provides the versatility and performance needed for effective climate control.

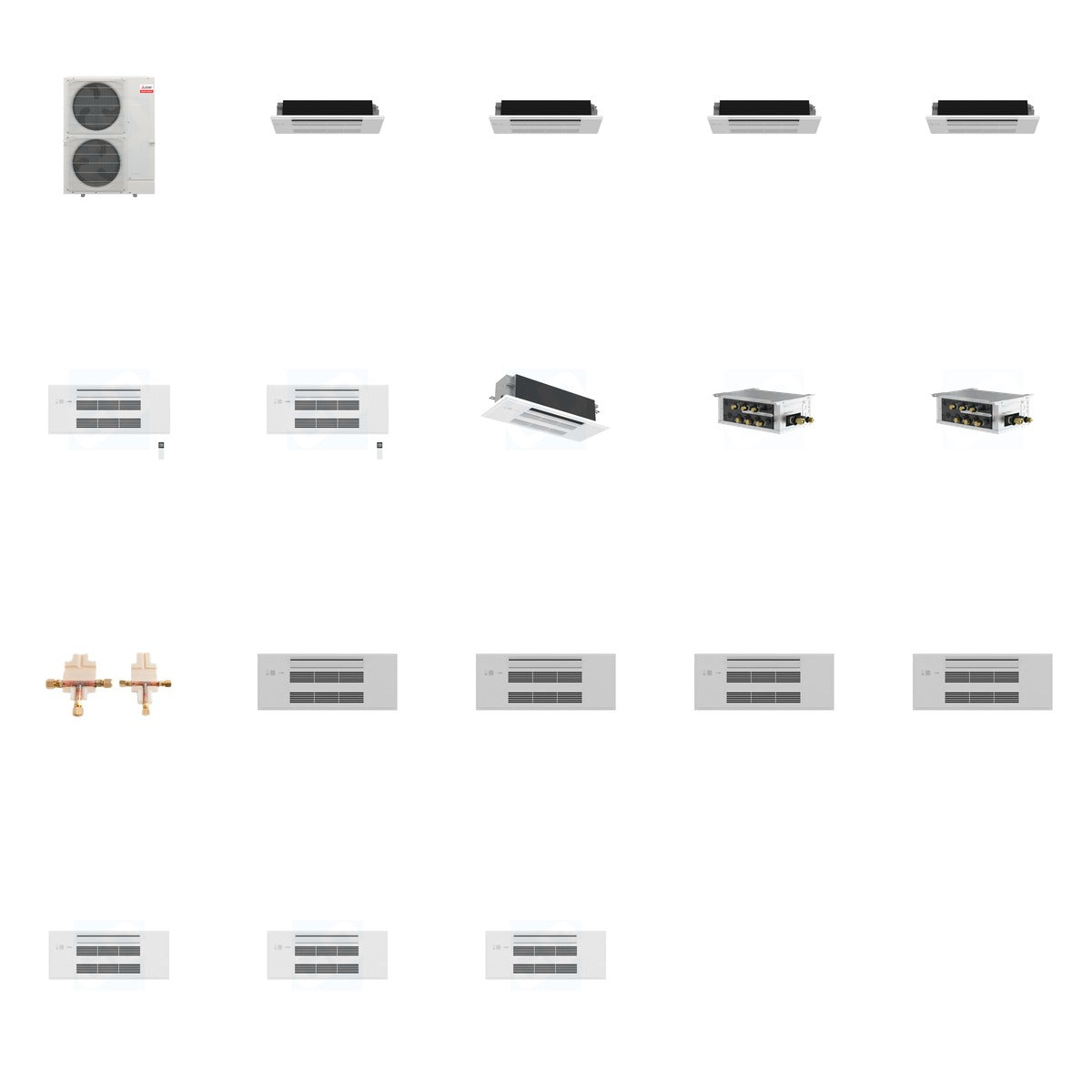

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x4)
• MITSUBISHI ELECTRIC MLZ-KX09NL - Mitsubishi Electric MLZ-KX09NL 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x2)
• MITSUBISHI ELECTRIC MLZ-KX18NL - Mitsubishi Electric MLZ-KX18NL 18k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Mitsubishi Electric MLP-448WU - (Grille for MLZ-KY Series) (Qty x4)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x3)

Key Details

• Weight of Bundle: 444.1 lb (Mitsubishi 225 lb + Mitsubishi 136 lb + Mitsubishi 6.7 lb + Mitsubishi 3.3 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 28 lb + Mitsubishi 30 lb)
• Outdoor Unit Capacity: 48,000 BTU
• Indoor Units: 6,000 BTU (x4), 9,000 BTU (x2), 18,000 BTU (x1)
• Refrigerant Type: R454B
• Voltage: 208/230 Volts
• Noise Level: Minimum 26 dB, Maximum 48 dB
• Dimensions (Outdoor Unit): 41-11/32 W x 13 D x 52-11/16 H
• Dimensions (Indoor Units): Ranges from 33-3/16 W x 11-7/8 D x 7-11/16 H to 43-3/8 W x 14-3/16 D x 7-5/16 H
• Grilles: Designed for optimal airflow and compatibility with MLZ series

Use & Compatibility

This bundle is intended for use in multi-zone HVAC systems, providing both heating and cooling capabilities. The outdoor heat pump connects to multiple indoor units, making it suitable for residential and commercial applications. The included branch boxes and distribution kit facilitate efficient refrigerant management, ensuring consistent performance across all connected units.
