Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 7-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+6K+6K+9K+9K+12K

Description

This comprehensive HVAC bundle is designed to provide optimal heating and cooling solutions for both residential and commercial spaces. Featuring a powerful Mitsubishi Electric MXZ-SM48NL outdoor heat pump unit, this bundle supports multiple indoor units, ensuring efficient climate control across various zones. The included ceiling cassette indoor units (MLZ-KX06NL, MLZ-KX09NL, MLZ-KX12NL) offer versatile installation options and advanced features like Wi-Fi connectivity for app-based control. Additionally, the branch boxes (PAC-LMA50BC, PAC-LMA30BC) facilitate seamless refrigerant distribution, while the branch pipe distribution kit (MSDD-50AR2-E) ensures balanced performance across all connected units. Together, these components create a cohesive system that maximizes comfort and efficiency.

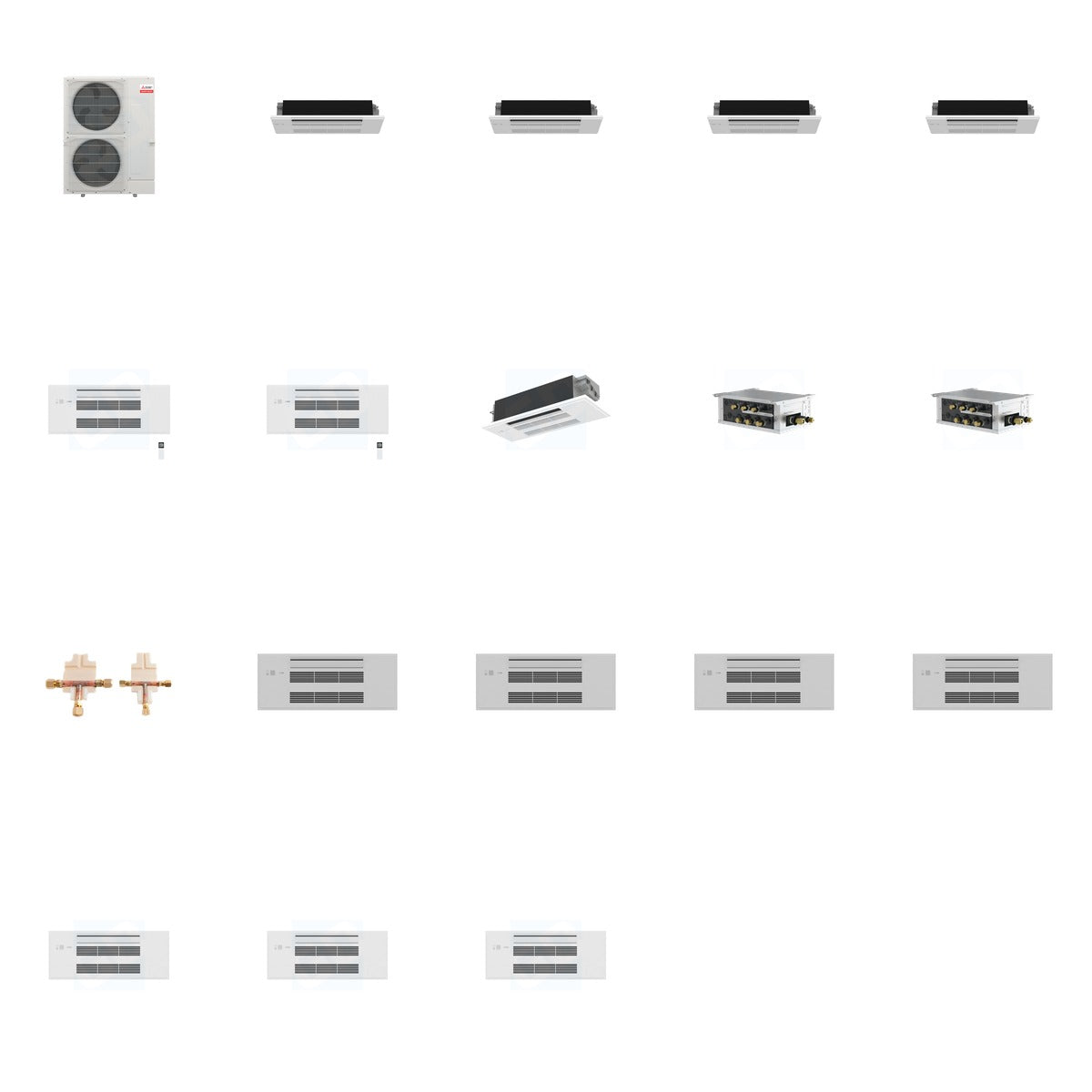

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x4)
• MITSUBISHI ELECTRIC MLZ-KX09NL - Mitsubishi Electric MLZ-KX09NL 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x2)
• MITSUBISHI ELECTRIC MLZ-KX12NL - Mitsubishi Electric MLZ-KX12NL 12k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Mitsubishi Electric MLP-448WU - (Grille for MLZ-KY Series) (Qty x4)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x3)

Key Details

• Weight of Bundle: 474.8 lb (Mitsubishi 225 lb + Mitsubishi 136 lb + Mitsubishi 6.7 lb + Mitsubishi 34 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 28 lb + Mitsubishi 30 lb)
• Outdoor Unit Capacity: 48,000 BTU
• Indoor Unit Capacities: 6,000 BTU, 9,000 BTU, 12,000 BTU
• Refrigerant Type: R454B
• Voltage: 208/230 Volts
• Maximum Zones: 8 (with branch box) or 12 (without branch box)
• Airflow Cooling CFM: Up to 325 CFM
• Noise Level: As low as 26 dB(A)
• Dimensions (Outdoor Unit): 41-11/32 W x 13 D x 52-11/16 H
• Dimensions (Indoor Units): Varies by model

Use & Compatibility

This bundle is ideal for multi-zone HVAC applications, providing efficient heating and cooling for various indoor environments. The outdoor unit is compatible with multiple indoor unit series, allowing for flexible configurations. The included branch boxes and distribution kit enhance refrigerant management, making this bundle perfect for both residential and commercial installations.
