Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 7-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+6K+6K+9K+12K+12K

Description

This comprehensive bundle features essential components for creating an efficient multi-zone HVAC system. The Mitsubishi Electric MXZ-SM48NL outdoor heat pump unit serves as the powerhouse, supporting up to 12 indoor units for versatile climate control. Complementing this are the MLZ-KX ceiling cassette indoor units, which provide both heating and cooling capabilities in compact designs, ideal for various room sizes. The included branch boxes and distribution kits ensure optimal refrigerant flow, enhancing system performance and energy efficiency. This bundle is perfect for both residential and commercial applications, delivering reliable comfort throughout any space.

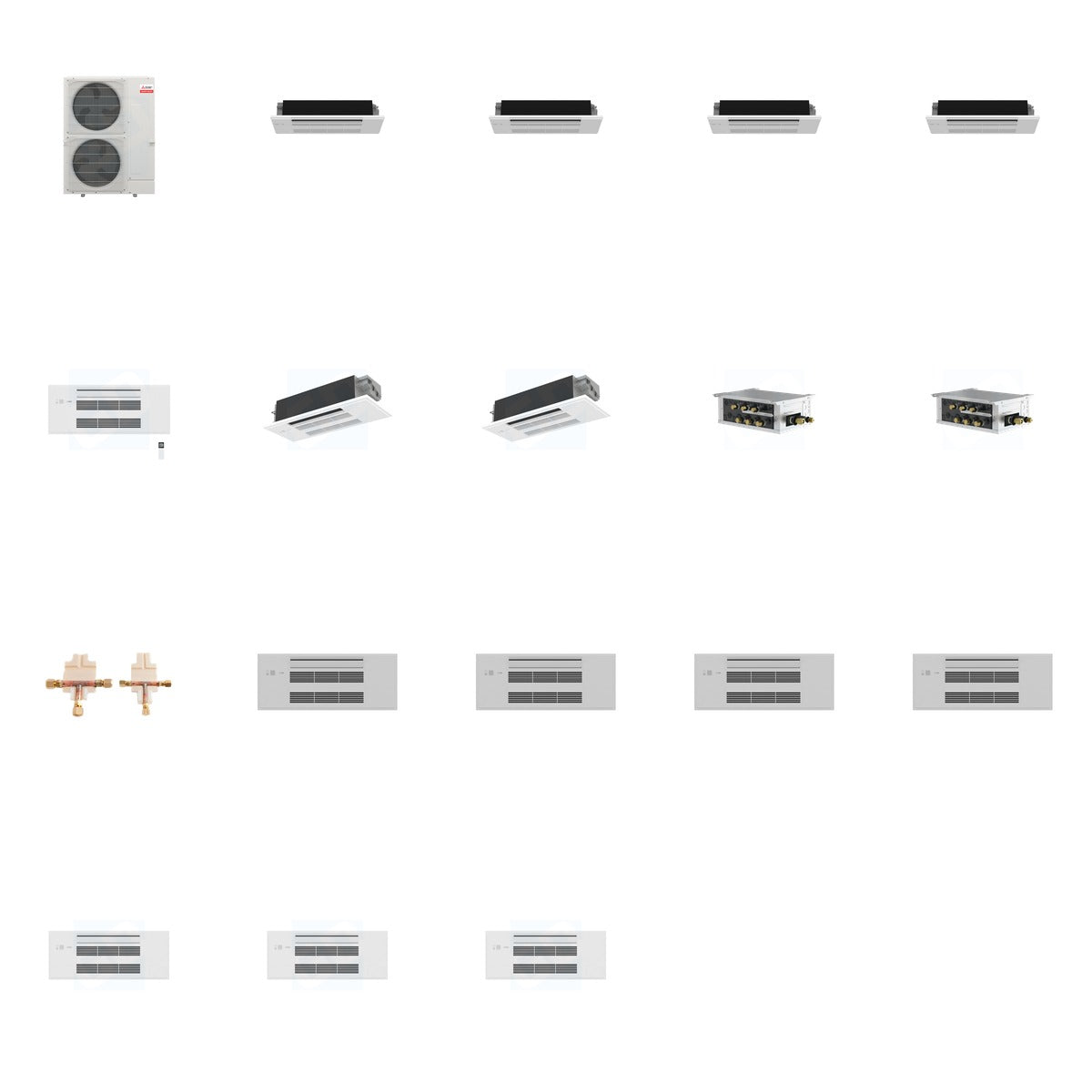

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x4)
• MITSUBISHI ELECTRIC MLZ-KX09NL - Mitsubishi Electric MLZ-KX09NL 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX12NL - Mitsubishi Electric MLZ-KX12NL 12k BTU One-Way Ceiling Cassette Indoor Unit (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Mitsubishi Electric MLP-448WU - (Grille for MLZ-KY Series) (Qty x4)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x3)

Key Details

• Weight of Bundle: 505.4 lb (Mitsubishi 225 lb + Mitsubishi 136 lb + Mitsubishi 3.3 lb + Mitsubishi 68 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 28 lb + Mitsubishi 30 lb)
• MXZ-SM48NL: 48,000 BTU, R454B refrigerant, SEER2: 21.50, dimensions: 41-11/32 W x 13 D x 52-11/16 H
• MLZ-KX06NL: 6,000 BTU, R-454B refrigerant, dimensions: 33-3/16 W x 11-7/8 D x 7-11/16 H
• MLZ-KX09NL: 9,000 BTU, R-454B refrigerant, dimensions: 43-3/8 x 14-3/16 x 7-5/16 inches
• MLZ-KX12NL: 12,000 BTU, R-454B refrigerant, dimensions: 43-3/8 W x 14-3/16 D x 7-5/16 H
• PAC-LMA50BC: 5 ports, compatible with MXZ models, dimensions: 17-3/4 W x 11-1/16 D x 6-3/4 H
• PAC-LMA30BC: 3 ports, compatible with R454B refrigerant, dimensions: 17-3/4 W x 11-1/16 D x 6-3/4 H
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B, dimensions: 11.5 L x 6.2 W x 4.8 H
• MLP-448WU: dimensions: 16.5 W x 38.5 L x 4.25 H
• MLP-449WU: dimensions: 16.5 W x 38.5 L x 4.25 H

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, providing both heating and cooling capabilities across various indoor environments. The components are compatible with Mitsubishi Electric's M-Series and City Multi systems, ensuring seamless integration and optimal performance.
