Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 7-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+6K+6K+6K+9K+9K

Description

This comprehensive HVAC bundle features essential components designed to create an efficient multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM48NL outdoor heat pump unit serves as the powerhouse, supporting up to eight indoor units for versatile climate control. Complementing this are the MLZ-KX06NL and MLZ-KX09NL ceiling cassette indoor units, which provide effective heating and cooling for various room sizes. The PAC-LMA50BC and PAC-LMA30BC branch boxes facilitate optimal refrigerant flow, while the MSDD-50AR2-E distribution kit ensures balanced performance across multiple indoor units. Completing the package are the MLP-448WU and MLP-449WU grilles, which enhance airflow and system efficiency. Together, this bundle is perfect for residential and commercial applications requiring reliable and efficient climate control.

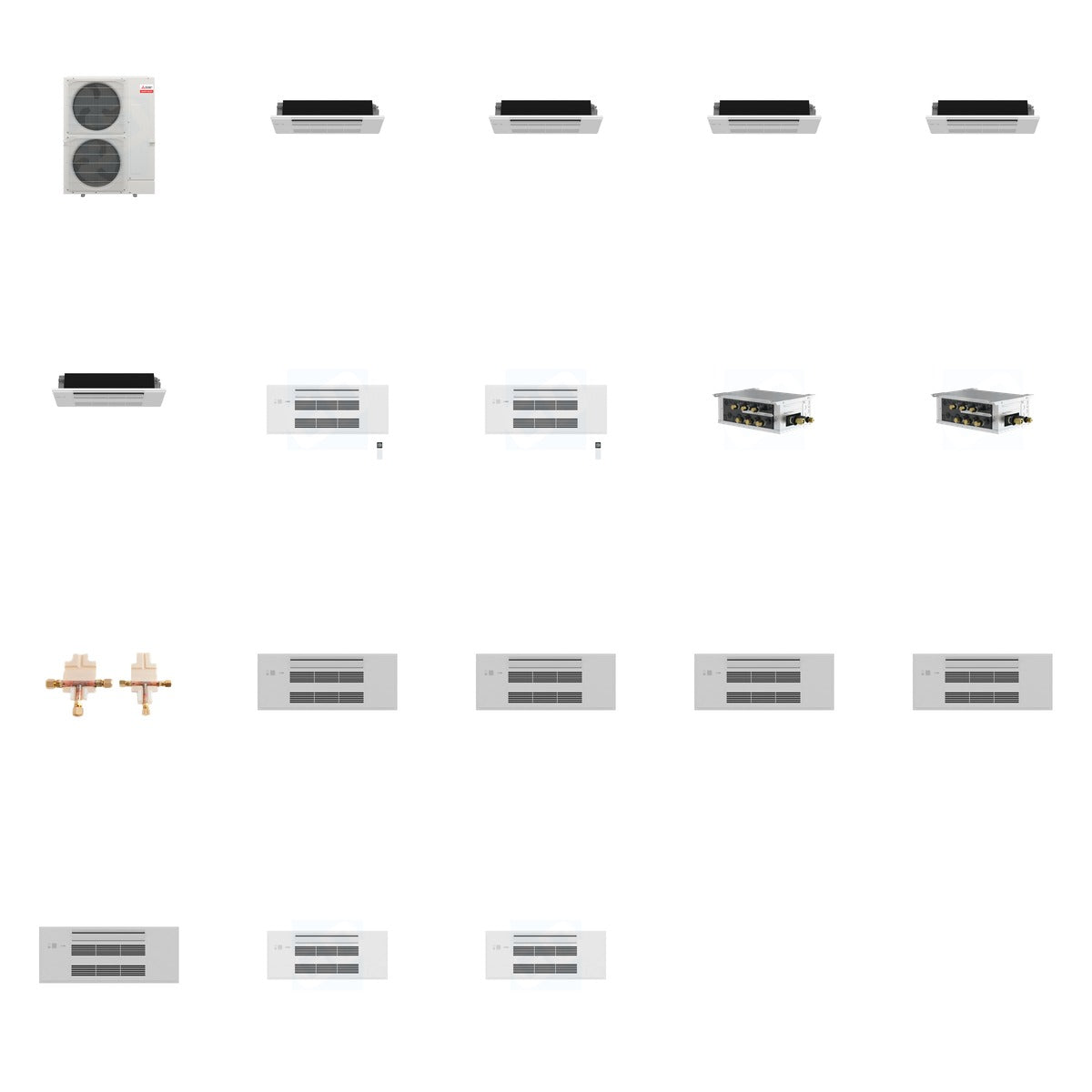

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x5)
• MITSUBISHI ELECTRIC MLZ-KX09NL - Mitsubishi Electric MLZ-KX09NL 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Mitsubishi Electric MLP-448WU - (Grille for MLZ-KY Series) (Qty x5)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x2)

Key Details

• Weight of Bundle: 471.8 lb (Mitsubishi 225 lb + Mitsubishi 170 lb + Mitsubishi 6.7 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 35 lb + Mitsubishi 20 lb)
• MXZ-SM48NL: 48,000 BTU, R454B refrigerant, SEER2: 21.50, Heating capacity: 48,000 BTU, Cooling capacity: 42,000 BTU
• MLZ-KX06NL: 6,000 BTU, R454B refrigerant, Room capacity: up to 200 sq ft, Noise level: 29-36 dB(A)
• MLZ-KX09NL: 9,000 BTU, R454B refrigerant, Room capacity: up to 350 sq ft, Noise level: 26-38 dB(A)
• PAC-LMA50BC: 5 ports, Voltage: 208/230V, Phase: 1, Dimensions: 17.75 x 11.06 x 6.75 inches
• PAC-LMA30BC: 3 ports, Voltage: 208/230V, Dimensions: 17.75 x 11.06 x 6.75 inches
• MSDD-50AR2-E: Flare connection, Compatible with R-410A/R-454B, Copper construction
• MLP-448WU: Dimensions: 16.5 x 38.5 x 4.25 inches, Weight: 7.9 lbs
• MLP-449WU: Dimensions: 16.5 x 38.5 x 4.25 inches, Weight: 7.9 lbs

Use & Compatibility

This bundle is designed for use in residential and commercial HVAC systems, providing efficient heating and cooling through a multi-zone setup. It is compatible with various Mitsubishi Electric indoor units and is optimized for R454B refrigerant, ensuring reliable performance across multiple zones.
