Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 7-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+6K+6K+6K+9K+12K

Description

This comprehensive bundle features essential components for creating an efficient multi-zone HVAC system. The Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit serves as the powerhouse, supporting up to eight indoor zones with its advanced inverter technology. Complementing this unit are the MLZ-KX series ceiling cassette indoor units, which provide flexible heating and cooling solutions for various room sizes. The included branch boxes and distribution kits ensure optimal refrigerant flow and system performance, making this bundle ideal for both residential and commercial applications.

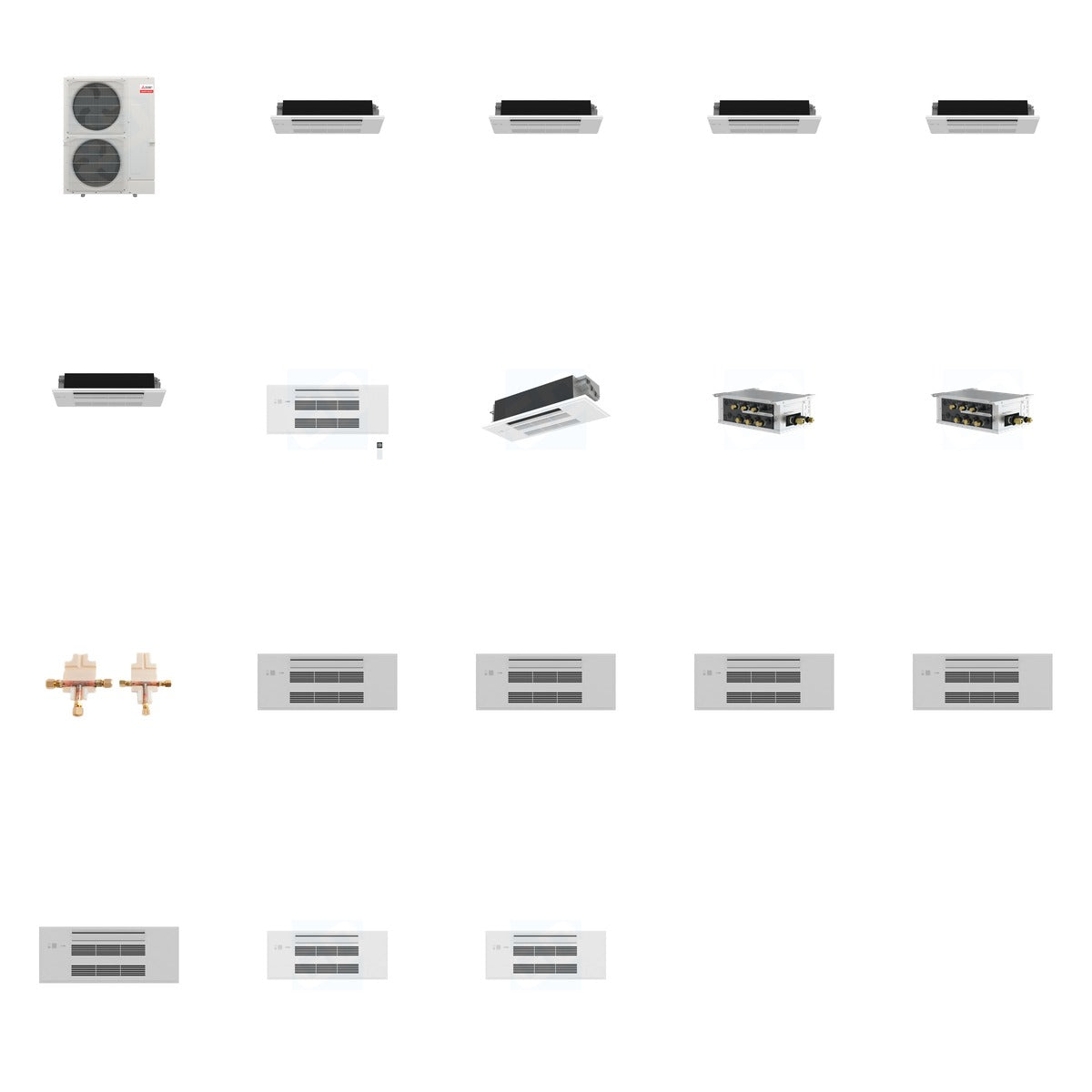

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x5)
• MITSUBISHI ELECTRIC MLZ-KX09NL - Mitsubishi Electric MLZ-KX09NL 9k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX12NL - Mitsubishi Electric MLZ-KX12NL 12k BTU One-Way Ceiling Cassette Indoor Unit (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Mitsubishi Electric MLP-448WU - (Grille for MLZ-KY Series) (Qty x5)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x2)

Key Details

• Weight of Bundle: 502.4 lb (Mitsubishi 225 lb + Mitsubishi 170 lb + Mitsubishi 3.3 lb + Mitsubishi 34 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 35 lb + Mitsubishi 20 lb)
• MXZ-SM48NL: 48,000 BTU, SEER2: 21.50, R454B refrigerant
• MLZ-KX06NL: 6,000 BTU, Heating Capacity: 7,200 BTU, Wi-Fi enabled
• MLZ-KX09NL: 9,000 BTU, Heating Capacity: 12,000 BTU, Wi-Fi enabled
• MLZ-KX12NL: 12,000 BTU, Heating Capacity: 15,400 BTU, Wi-Fi enabled
• PAC-LMA50BC: 5 ports, 208/230 Volts
• PAC-LMA30BC: 3 ports, 208/230 Volts
• MSDD-50AR2-E: Flare connection, Oxygen-Free Copper
• MLP-448WU: Dimensions: 16.5 x 38.5 x 4.25 inches
• MLP-449WU: Designed for MLZ Series, dimensions: 16.5 x 38.5 x 4.25 inches

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, providing both heating and cooling capabilities across various indoor environments. The outdoor heat pump unit is compatible with M- and P-Series indoor units, while the ceiling cassette units fit seamlessly into standard ceiling joists. The branch boxes and distribution kits ensure efficient refrigerant management, making this setup ideal for residential and commercial applications.
