Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 7-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+6K+6K+6K+6K+6K

Description

This comprehensive HVAC bundle is designed to provide optimal heating and cooling solutions for multi-zone environments. Featuring the Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit, this package supports up to twelve indoor zones, making it ideal for both residential and commercial applications. The included MLZ-KX06NL one-way ceiling cassette units offer versatile installation options and efficient air distribution for spaces up to 200 square feet. To ensure seamless refrigerant flow, the bundle includes two branch boxes (PAC-LMA50BC and PAC-LMA30BC), which facilitate connections to multiple indoor units. Additionally, the MSDD-50AR2-E branch pipe distribution kit enhances system performance, while the MLP-448WU grilles optimize airflow. Together, these components create a powerful and efficient HVAC system tailored to meet diverse climate control needs.

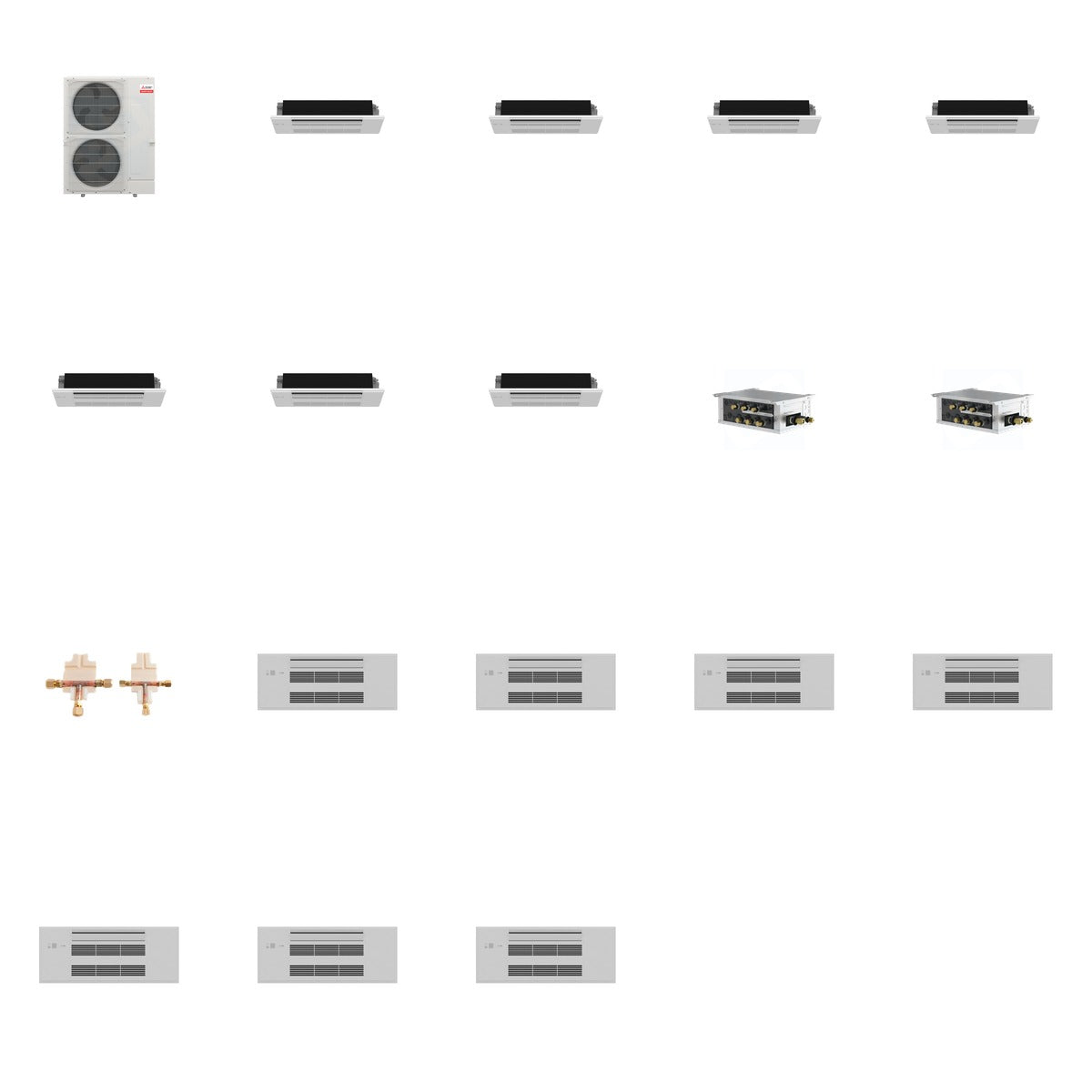

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x7)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Mitsubishi Electric MLP-448WU - (Grille for MLZ-KX Series) (Qty x7)

Key Details

• Weight of Bundle: 527.1 lb (Mitsubishi 225 lb + Mitsubishi 238 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 49 lb)
• MXZ-SM48NL: 48,000 BTU, SEER2: 21.50, R454B refrigerant
• MLZ-KX06NL: 6,000 BTU, Wi-Fi enabled, R454B refrigerant
• PAC-LMA50BC: 5 ports, compatible with MXZ models
• PAC-LMA30BC: 3 ports, supports balanced refrigerant flow
• MSDD-50AR2-E: Flare connection, oxygen-free copper construction
• MLP-448WU: Dimensions 16.5 x 38.5 x 4.25 inches

Use & Compatibility

This bundle is intended for use in multi-zone HVAC systems, providing efficient heating and cooling across various indoor spaces. The components are compatible with Mitsubishi Electric's M-Series and City Multi systems, ensuring optimal performance and flexibility for both residential and commercial installations.
