Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 7-Zone 1-Way Ceiling Cassette Mini Split Heat Pump System - 6K+6K+6K+6K+6K+12K+12K

Description

This comprehensive HVAC bundle features top-of-the-line Mitsubishi Electric products designed to provide efficient heating and cooling solutions for multi-zone systems. The MXZ-SM48NL outdoor heat pump unit serves as the powerhouse, capable of connecting to multiple indoor units for optimal climate control across various spaces. Complementing this unit are the MLZ-KX06NL and MLZ-KX12NL ceiling cassette indoor units, which deliver flexible air distribution and user-friendly features such as Wi-Fi connectivity. The PAC-LMA50BC and PAC-LMA30BC branch boxes ensure effective refrigerant management, while the MSDD-50AR2-E branch pipe distribution kit and MLP-448WU/MLP-449WU grilles enhance system performance and airflow. Together, these components create a robust and efficient HVAC system suitable for both residential and commercial applications.

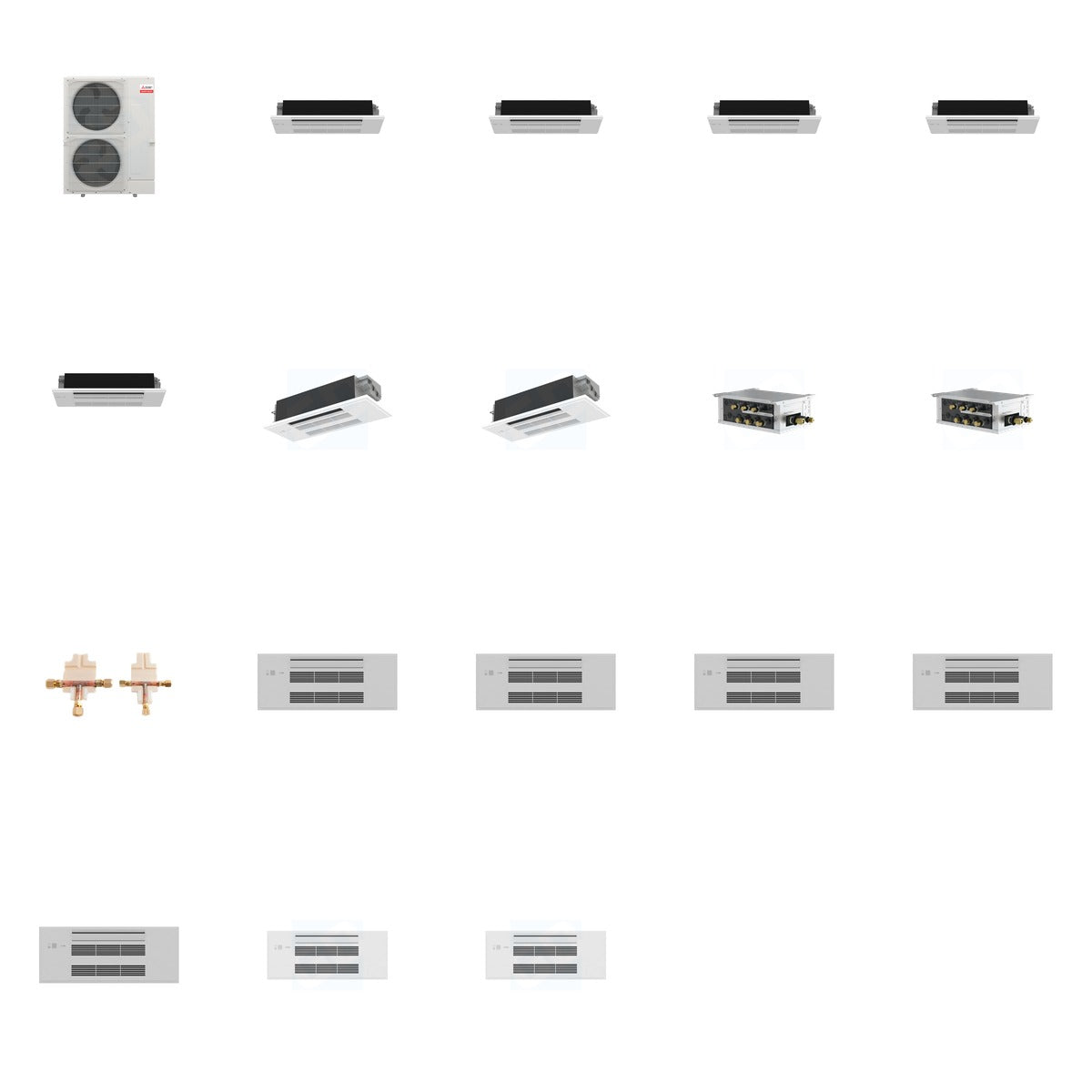

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MLZ-KX06NL - Mitsubishi Electric MLZ-KX06NL 6k BTU One-Way Ceiling Cassette Indoor Unit (Qty x5)
• MITSUBISHI ELECTRIC MLZ-KX12NL - Mitsubishi Electric MLZ-KX12NL 12k BTU One-Way Ceiling Cassette Indoor Unit (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Qty x1)
• MITSUBISHI ELECTRIC MLP-448WU - Mitsubishi Electric MLP-448WU - (Grille for MLZ-KY Series) (Qty x5)
• MITSUBISHI ELECTRIC MLP-449WU - Mitsubishi MLP-449WU Grille for Use w/ MLZ Series Indoor Unit Ceiling Cassette (Qty x2)

Key Details

• Weight of Bundle: 533.1 lb (Mitsubishi 225 lb + Mitsubishi 170 lb + Mitsubishi 68 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb + Mitsubishi 35 lb + Mitsubishi 20 lb)
• MXZ-SM48NL: 48,000 BTU, R454B refrigerant, SEER2: 21.50, Cooling capacity: 42,000 BTU, Heating capacity: 48,000 BTU
• MLZ-KX06NL: 6,000 BTU, R-454B refrigerant, Cooling capacity: 6,000 BTU, Heating capacity: 7,200 BTU
• MLZ-KX12NL: 12,000 BTU, R-454B refrigerant, Cooling capacity: 12,000 BTU, Heating capacity: 15,400 BTU
• PAC-LMA50BC: 5 ports, 208/230V, designed for MXZ model
• PAC-LMA30BC: 3 ports, 208/230V, designed for R454B refrigerant
• MSDD-50AR2-E: Flare connection, compatible with R-410A/R-454B, oxygen-free copper construction
• MLP-448WU: Dimensions: 16.5" x 38.5" x 4.25", Weight: 7.9 lbs
• MLP-449WU: Designed for MLZ Series, facilitates efficient air distribution

Use & Compatibility

This bundle is designed for use in multi-zone HVAC systems, providing both heating and cooling capabilities across various indoor environments. The outdoor heat pump unit is compatible with M-Series and City Multi indoor units, while the ceiling cassettes are ideal for installation in residential and commercial spaces. The branch boxes and distribution kit ensure optimal refrigerant flow, making this bundle a complete solution for effective climate control.
