Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Mini Split Heat Pump System - 6K+9K+9K+9K+9K+18K

Description

This comprehensive HVAC bundle features essential components designed to optimize your multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit serves as the powerhouse, capable of connecting to multiple indoor units for efficient climate control. Complementing this outdoor unit are three wall-mounted air handlers (MSZ-GX06NL, MSZ-GX09NL, and MSZ-GX18NL) that provide tailored heating and cooling solutions for various room sizes. Additionally, the PAC-LMA50BC and PAC-LMA30BC branch boxes ensure balanced refrigerant distribution, while the MSDD-50AR2-E branch pipe distribution kit enhances installation efficiency. Together, these products create a cohesive system that delivers comfort and energy savings.

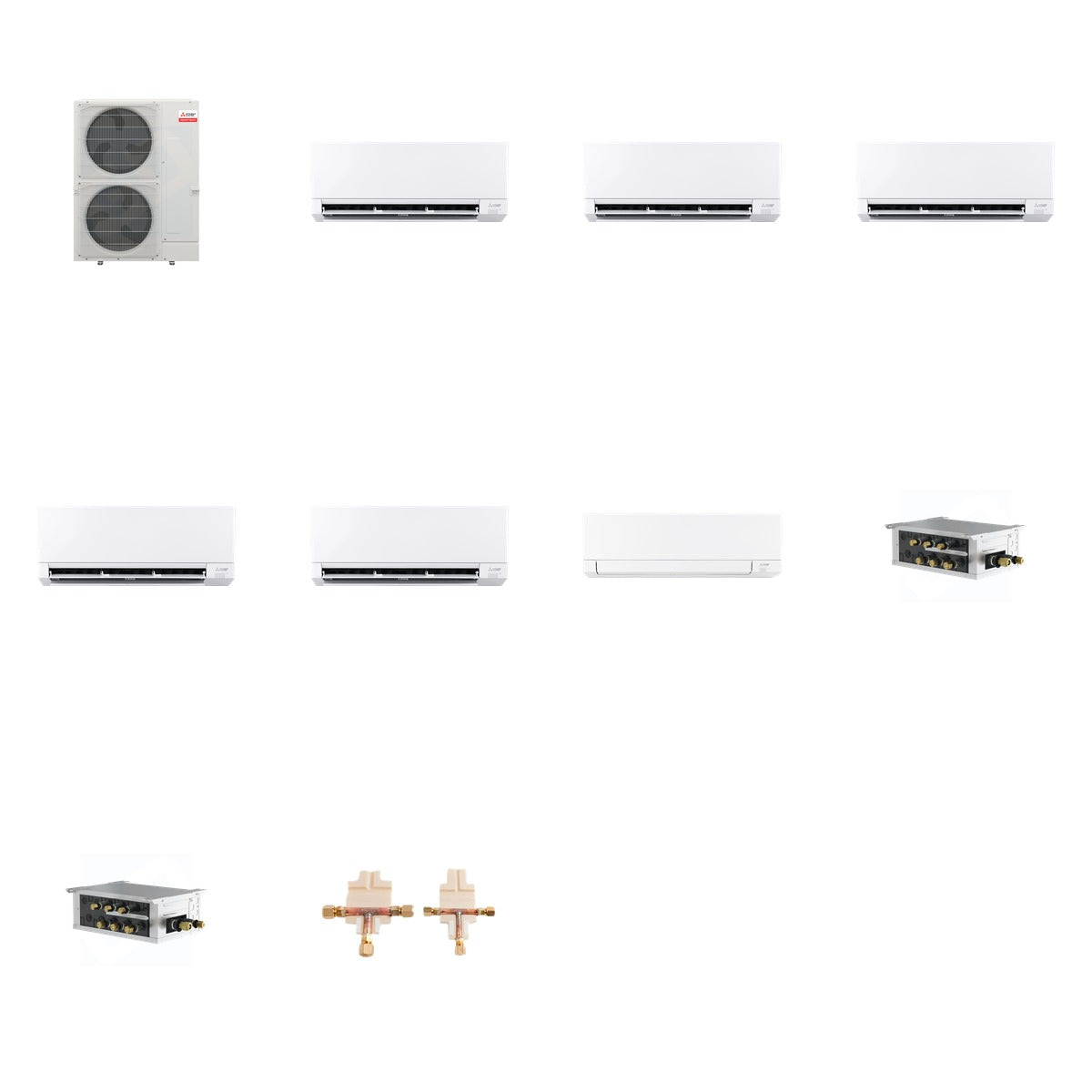

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX09NL - R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x4)
• MITSUBISHI ELECTRIC MSZ-GX18NL - R454B 18k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 378.1 lb (Mitsubishi 225 lb + Mitsubishi 22 lb + Mitsubishi 88 lb + Mitsubishi 28 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM48NL: 48,000 BTU, R454B refrigerant, connects up to 12 zones
• MSZ-GX06NL: 6,000 BTU, SEER2 up to 28.4, Wi-Fi enabled
• MSZ-GX09NL: 9,000 BTU, SEER2 up to 28.4, quiet operation
• MSZ-GX18NL: 18,000 BTU, SEER2 22.5, advanced filtration system
• PAC-LMA50BC: 5 ports, compatible with MXZ outdoor units
• PAC-LMA30BC: 3 ports, ensures balanced refrigerant flow
• MSDD-50AR2-E: Flare connection, oxygen-free copper construction

Use & Compatibility

This bundle is designed for residential and commercial HVAC applications, providing efficient heating and cooling solutions for multi-zone systems. The components are compatible with Mitsubishi Electric's MXZ and M-Series product lines, ensuring seamless integration and optimal performance across various indoor and outdoor configurations.
