Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+9K+9K+9K+15K

Description

This comprehensive HVAC bundle features a selection of Mitsubishi Electric products designed to deliver efficient heating and cooling for multi-zone systems. The MXZ-SM48NL outdoor heat pump unit serves as the powerhouse, supporting up to 12 indoor zones with its advanced refrigerant management. Paired with multiple wall-mounted air handlers (MSZ-GX06NL, MSZ-GX09NL, MSZ-GX15NL), this bundle ensures optimal comfort across various room sizes. The included branch boxes (PAC-LMA50BC and PAC-LMA30BC) facilitate seamless refrigerant distribution, while the MSDD-50AR2-E branch pipe distribution kit enhances system performance. Together, these components create a versatile and efficient solution for both residential and commercial applications.

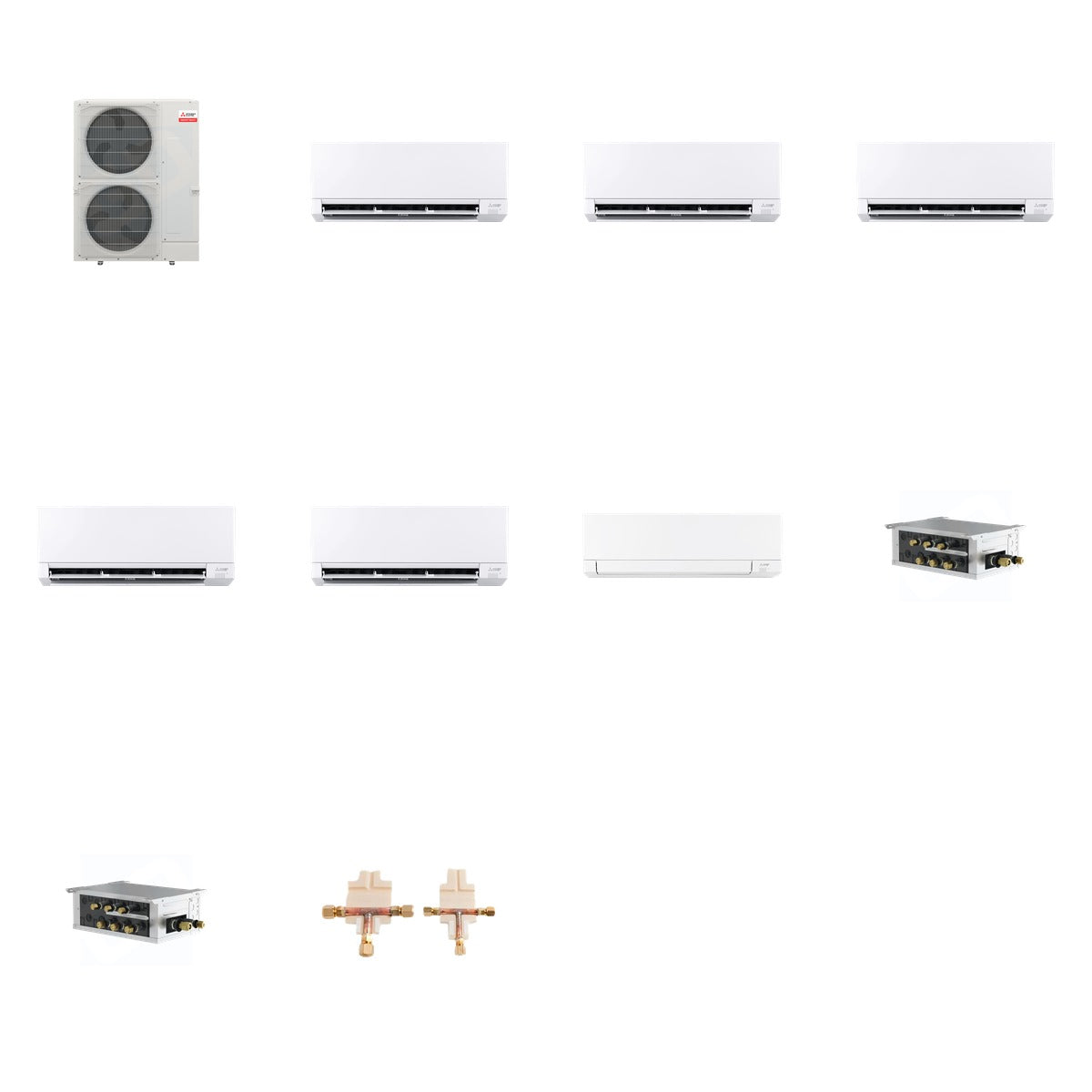

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - Mitsubishi Electric MSZ-GX06NL R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-GX09NL - Mitsubishi Electric MSZ-GX09NL R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-GX15NL - Mitsubishi Electric MSZ-GX15NL R454B 15k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 372.1 lb (Mitsubishi 225 lb + Mitsubishi 44 lb + Mitsubishi 66 lb + Mitsubishi 22 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM48NL: 48,000 BTU, R454B refrigerant, 8-12 zones
• MSZ-GX06NL: 6,000 BTU, R454B refrigerant, up to 250 sq ft
• MSZ-GX09NL: 9,000 BTU, R454B refrigerant, up to 300 sq ft
• MSZ-GX15NL: 15,000 BTU, R454B refrigerant, up to 600 sq ft
• PAC-LMA50BC: 5 ports, 208/230V, supports up to 5 indoor units
• PAC-LMA30BC: 3 ports, 208/230V, connects up to 3 indoor units
• MSDD-50AR2-E: Flare connection, oxygen-free copper, compatible with R-410A/R-454B

Use & Compatibility

This bundle is ideal for both residential and commercial HVAC applications, providing efficient heating and cooling solutions for multi-zone environments. The outdoor heat pump unit is compatible with M-Series and City Multi indoor units, while the wall-mounted air handlers can be configured for single or multi-zone systems. The branch boxes and distribution kit ensure optimal refrigerant flow and temperature control across all connected indoor units.
