Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+9K+9K+15K+15K

Description

This comprehensive HVAC bundle is designed for efficient heating and cooling across multiple zones, making it an ideal solution for both residential and commercial applications. Featuring a powerful Mitsubishi Electric MXZ-SM48NL outdoor heat pump unit, this bundle includes multiple wall-mounted air handlers (MSZ-GX06NL, MSZ-GX09NL, and MSZ-GX15NL) that provide flexible installation options and superior comfort. The included branch boxes (PAC-LMA50BC and PAC-LMA30BC) ensure optimal refrigerant flow, while the MSDD-50AR2-E branch pipe distribution kit guarantees balanced performance across all connected indoor units. Together, these components create a cohesive and efficient climate control system tailored to your specific needs.

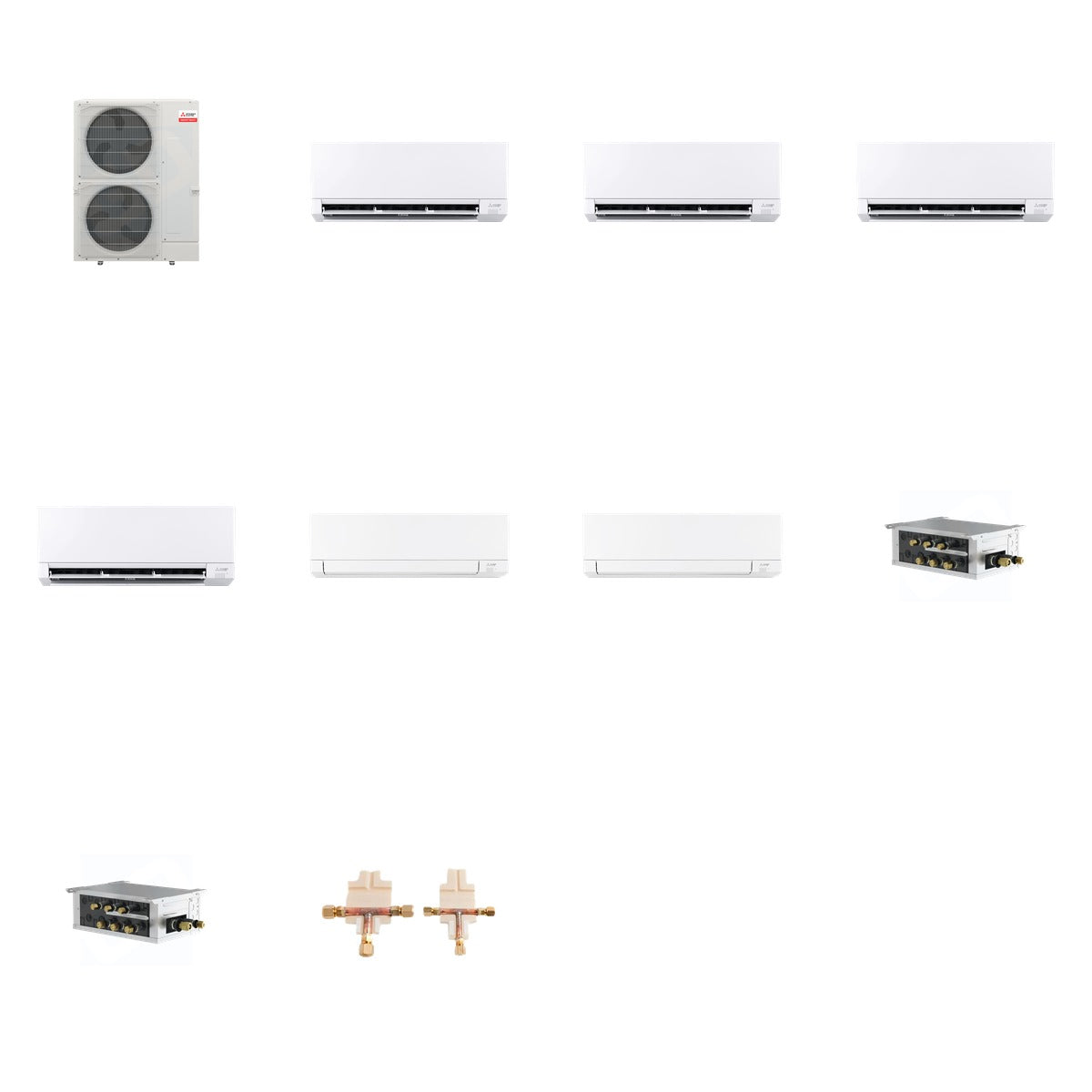

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - Mitsubishi Electric MSZ-GX06NL R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-GX09NL - Mitsubishi Electric MSZ-GX09NL R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-GX15NL - Mitsubishi Electric MSZ-GX15NL R454B 15k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 372.1 lb (Mitsubishi 225 lb + Mitsubishi 44 lb + Mitsubishi 44 lb + Mitsubishi 44 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: 42,000 BTU (MXZ-SM48NL)
• Heating Capacity: 48,000 BTU (MXZ-SM48NL)
• SEER2: Up to 28.4 (MSZ-GX series)
• Refrigerant Type: R454B
• Voltage: 208/230 Volts
• Dimensions (MXZ-SM48NL): 41-11/32 W x 13 D x 52-11/16 H
• Indoor Unit Size (MSZ-GX06NL): 11.78 H x 31.40 W x 9.65 D
• Indoor Unit Size (MSZ-GX09NL): 11.78 H x 31.40 W x 9.65 D
• Indoor Unit Size (MSZ-GX15NL): 11.77 H x 31.40 W x 9.65 D
• Branch Box Ports: 5 (PAC-LMA50BC), 3 (PAC-LMA30BC)

Use & Compatibility

This bundle is intended for use in multi-zone heating and cooling systems, compatible with various Mitsubishi Electric indoor units. The outdoor heat pump unit efficiently supports up to eight indoor zones, while the branch boxes facilitate optimal refrigerant distribution. Ideal for both residential and commercial settings, this system ensures consistent comfort and energy efficiency.
