Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+9K+9K+12K+15K

Description

This comprehensive HVAC bundle is designed to provide efficient heating and cooling solutions for both residential and commercial applications. Featuring a powerful Mitsubishi Electric MXZ-SM48NL outdoor heat pump unit, this bundle supports up to eight indoor zones, making it ideal for multi-zone configurations. The included MSZ-GX series wall-mounted air handlers (6k, 9k, 12k, and 15k BTU) offer versatile installation options and advanced features such as built-in Wi-Fi and Econo Cool mode for energy savings. Additionally, the PAC-LMA branch boxes ensure optimal refrigerant flow and distribution, enhancing system performance. This bundle is perfect for anyone looking to upgrade their HVAC system with reliable and efficient components.

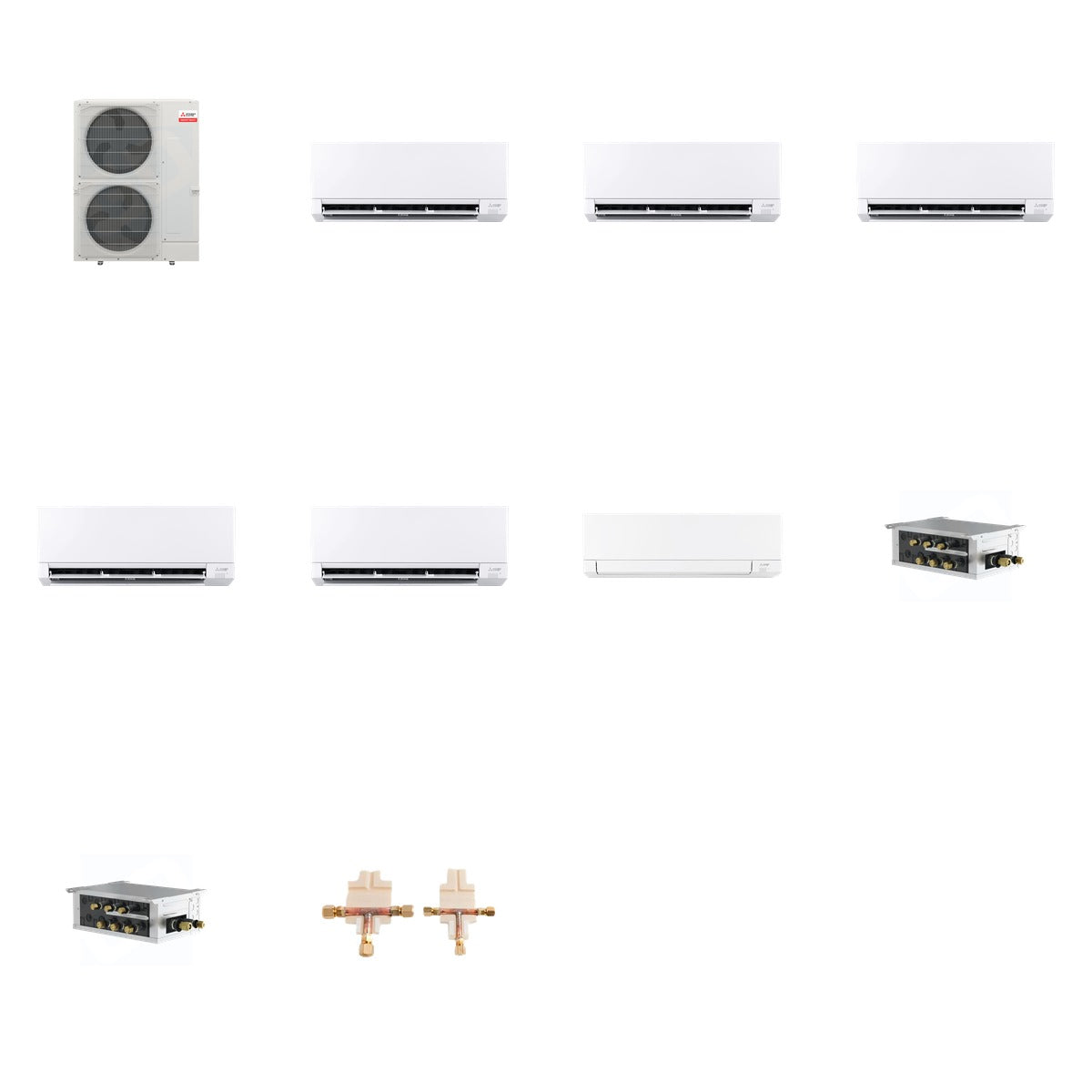

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - Mitsubishi Electric MSZ-GX06NL R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-GX09NL - Mitsubishi Electric MSZ-GX09NL R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-GX12NL - Mitsubishi Electric MSZ-GX12NL R454B 12k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX15NL - Mitsubishi Electric MSZ-GX15NL R454B 15k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 372.1 lb (Mitsubishi 225 lb + Mitsubishi 44 lb + Mitsubishi 44 lb + Mitsubishi 22 lb + Mitsubishi 22 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM48NL: 48,000 BTU, R454B refrigerant, supports 8-12 zones
• MSZ-GX06NL: 6,000 BTU, SEER2 up to 28.4, Wi-Fi enabled
• MSZ-GX09NL: 9,000 BTU, SEER2 up to 28.4, quiet operation
• MSZ-GX12NL: 12,000 BTU, SEER2 up to 28.4, whisper-quiet performance
• MSZ-GX15NL: 15,000 BTU, SEER2 up to 28.4, advanced filtration
• PAC-LMA50BC: 5 ports, 208/230V, electronic LEVs
• PAC-LMA30BC: 3 ports, 208/230V, balanced refrigerant flow
• MSDD-50AR2-E: Flare connection, oxygen-free copper, compatible with R-410A/R-454B

Use & Compatibility

This bundle is designed for use in multi-zone mini-split systems, providing efficient heating and cooling for various indoor spaces. The outdoor unit is compatible with M-Series and City Multi indoor units, while the wall-mounted air handlers can be used in both single and multi-zone configurations. The included branch boxes and distribution kit ensure optimal refrigerant flow, making this bundle an excellent choice for both residential and commercial HVAC applications.
