Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+6K+9K+9K+15K

Description

This comprehensive HVAC bundle features essential components for optimizing your multi-zone heating and cooling system. The Mitsubishi Electric MXZ-SM48NL outdoor heat pump unit serves as the powerhouse, capable of connecting to multiple indoor units for efficient climate control across various spaces. Complementing this are three wall-mounted air handlers (MSZ-GX06NL, MSZ-GX09NL, and MSZ-GX15NL) that provide tailored comfort solutions with advanced filtration and smart control options. Additionally, two branch boxes (PAC-LMA50BC and PAC-LMA30BC) ensure seamless refrigerant distribution, while the MSDD-50AR2-E branch pipe distribution kit guarantees balanced performance. Together, these products create a robust and efficient HVAC system suitable for both residential and commercial applications.

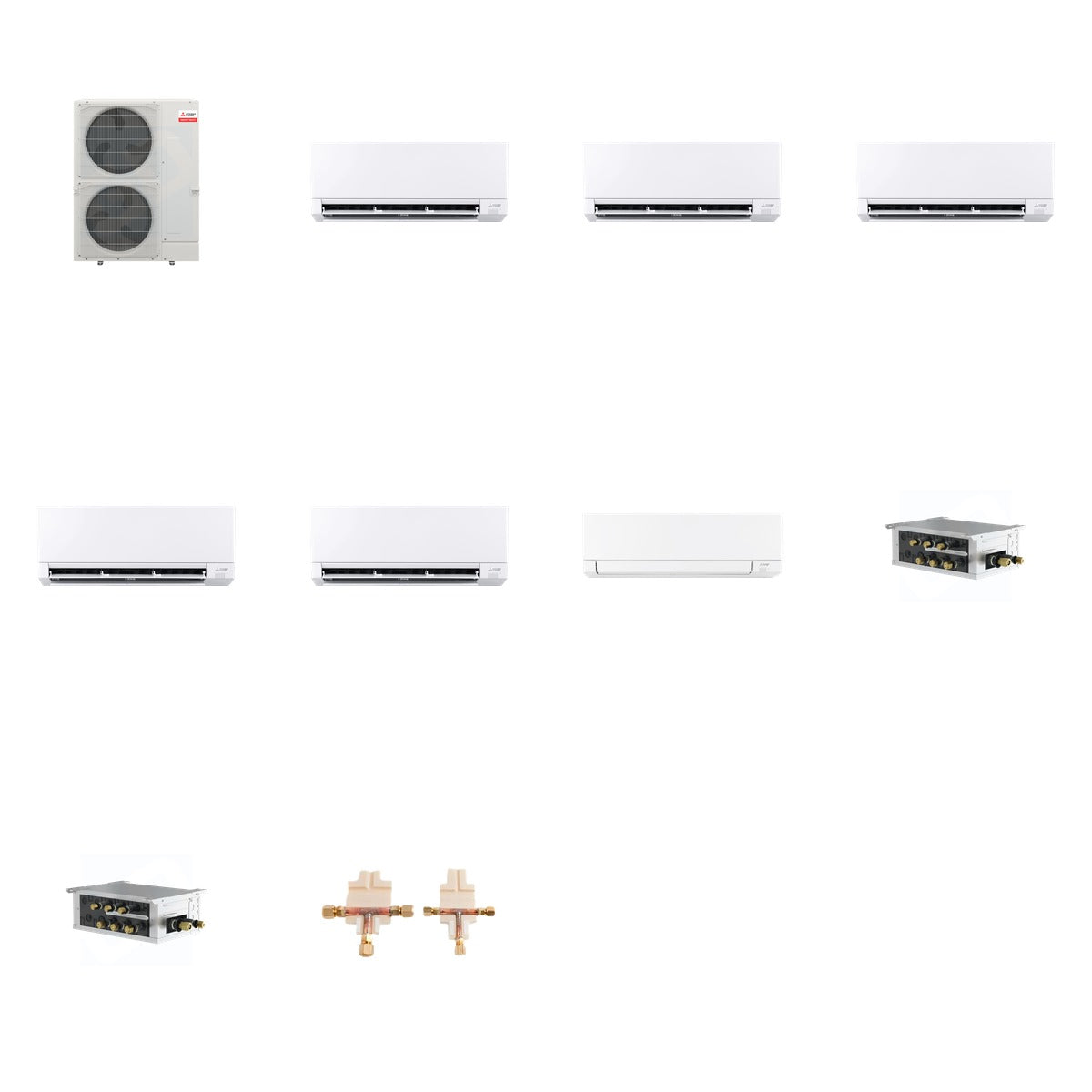

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - Mitsubishi Electric MSZ-GX06NL R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-GX09NL - Mitsubishi Electric MSZ-GX09NL R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC MSZ-GX15NL - Mitsubishi Electric MSZ-GX15NL R454B 15k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 372.1 lb (Mitsubishi 225 lb + Mitsubishi 66 lb + Mitsubishi 44 lb + Mitsubishi 22 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• MXZ-SM48NL: 48,000 BTU, R454B refrigerant, connects up to 12 zones
• MSZ-GX06NL: 6,000 BTU, SEER2 up to 28.4, Wi-Fi enabled
• MSZ-GX09NL: 9,000 BTU, SEER2 up to 28.4, Wi-Fi enabled
• MSZ-GX15NL: 15,000 BTU, SEER2 up to 28.4, Wi-Fi enabled
• PAC-LMA50BC: 5 ports, compatible with MXZ model, 208/230V
• PAC-LMA30BC: 3 ports, compatible with R454B refrigerant, 208/230V
• MSDD-50AR2-E: Flare connection, oxygen-free copper, compatible with R-410A/R-454B

Use & Compatibility

This bundle is designed for use in multi-zone heating and cooling systems, making it ideal for both residential and commercial applications. The outdoor heat pump unit is compatible with M-, P-Series, and City Multi indoor units, while the wall-mounted air handlers are perfect for single or multi-zone configurations. The branch boxes and distribution kit facilitate efficient refrigerant management, ensuring optimal performance across all connected indoor units.
