Mitsubishi Multi-Zone 48000 BTU R-454B 20 SEER2 6-Zone Wall-Mounted Mini Split Heat Pump System - 6K+6K+6K+9K+15K+15K

Description

This comprehensive Mitsubishi Electric HVAC bundle is designed to provide efficient heating and cooling solutions for both residential and commercial applications. The MXZ-SM48NL outdoor heat pump unit serves as the powerhouse, supporting multiple indoor units for versatile climate control. Paired with three wall-mounted air handlers (MSZ-GX06NL, MSZ-GX09NL, and MSZ-GX15NL), this bundle ensures optimal performance across various room sizes, from cozy spaces to larger areas. The inclusion of branch boxes (PAC-LMA50BC and PAC-LMA30BC) facilitates seamless refrigerant distribution, while the MSDD-50AR2-E branch pipe kit enhances installation efficiency. Together, these components create a robust multi-zone system that prioritizes comfort and energy savings.

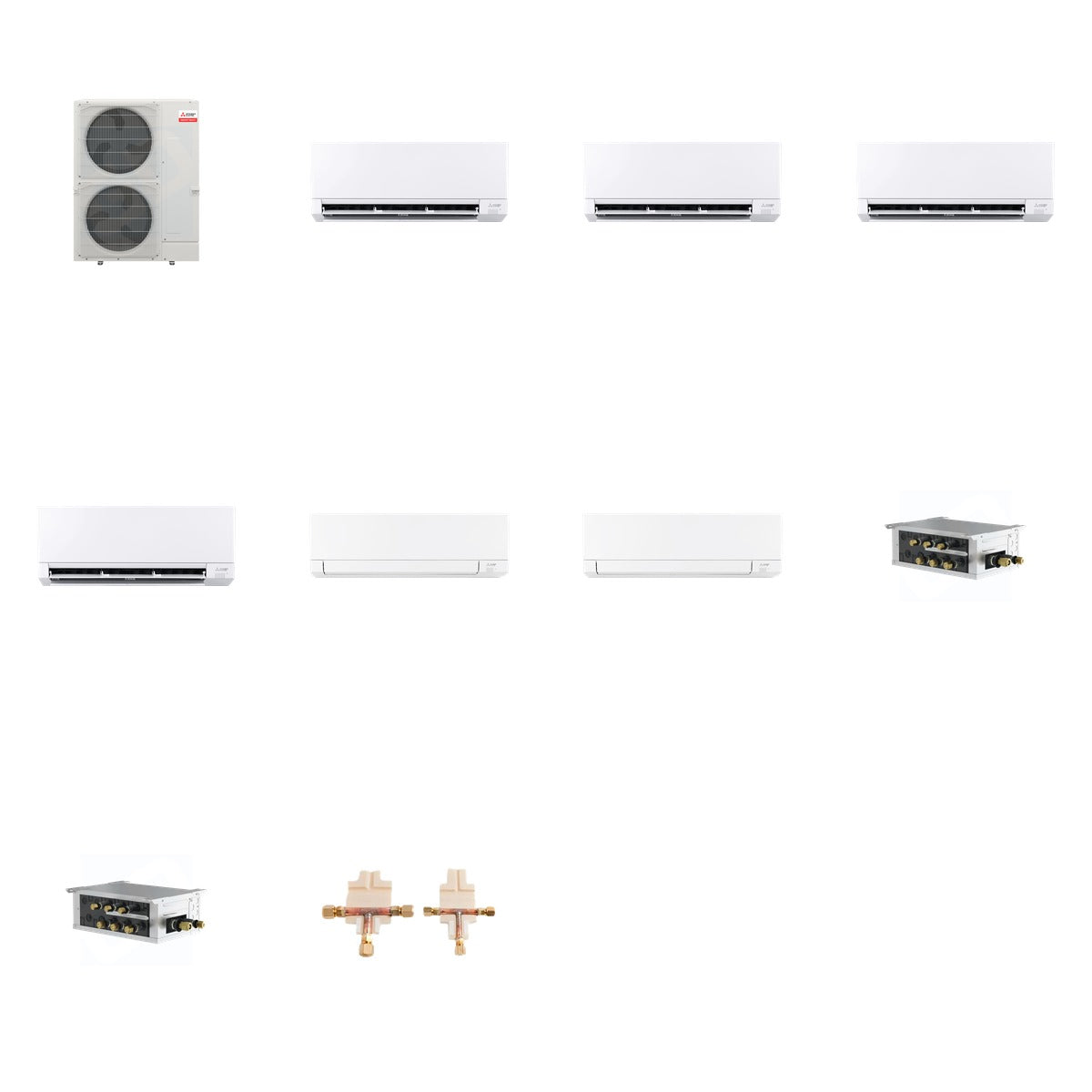

What's Included

• MITSUBISHI ELECTRIC MXZ-SM48NL - Mitsubishi Electric MXZ-SM48NL Smart Multi Outdoor Heat Pump Unit (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX06NL - Mitsubishi Electric MSZ-GX06NL R454B 6k BTU Heat Pump Wall Mount Air Handler (Qty x3)
• MITSUBISHI ELECTRIC MSZ-GX09NL - Mitsubishi Electric MSZ-GX09NL R454B 9k BTU Heat Pump Wall Mount Air Handler (Qty x1)
• MITSUBISHI ELECTRIC MSZ-GX15NL - Mitsubishi Electric MSZ-GX15NL R454B 15k BTU Heat Pump Wall Mount Air Handler (Qty x2)
• MITSUBISHI ELECTRIC PAC-LMA50BC - Mitsubishi Electric PAC-LMA50BC 5-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC PAC-LMA30BC - Mitsubishi Electric PAC-LMA30BC 3-Port Branch Box (Qty x1)
• MITSUBISHI ELECTRIC MSDD-50AR2-E - Mitsubishi Electric MSDD-50AR2-E Multi-Zone Branch Pipe Distribution Kit (Flare Connection) (Qty x1)

Key Details

• Weight of Bundle: 372.1 lb (Mitsubishi 225 lb + Mitsubishi 66 lb + Mitsubishi 22 lb + Mitsubishi 44 lb + Mitsubishi 7 lb + Mitsubishi 5 lb + Mitsubishi 3.1 lb)
• Cooling Capacity: 6,000 to 48,000 BTU
• Heating Capacity: Up to 18,000 BTU
• SEER2 Ratings: Up to 28.4
• Refrigerant Type: R454B
• Voltage: 208/230V
• Indoor Unit Size: Wall-mounted
• Branch Box Ports: 3 and 5
• Material: Oxygen-Free Copper for pipes

Use & Compatibility

This bundle is ideal for creating a multi-zone HVAC system, suitable for both residential and commercial settings. The outdoor heat pump unit connects to various indoor units, providing flexible heating and cooling options. Each component is compatible with Mitsubishi Electric systems, ensuring optimal performance and efficiency.
